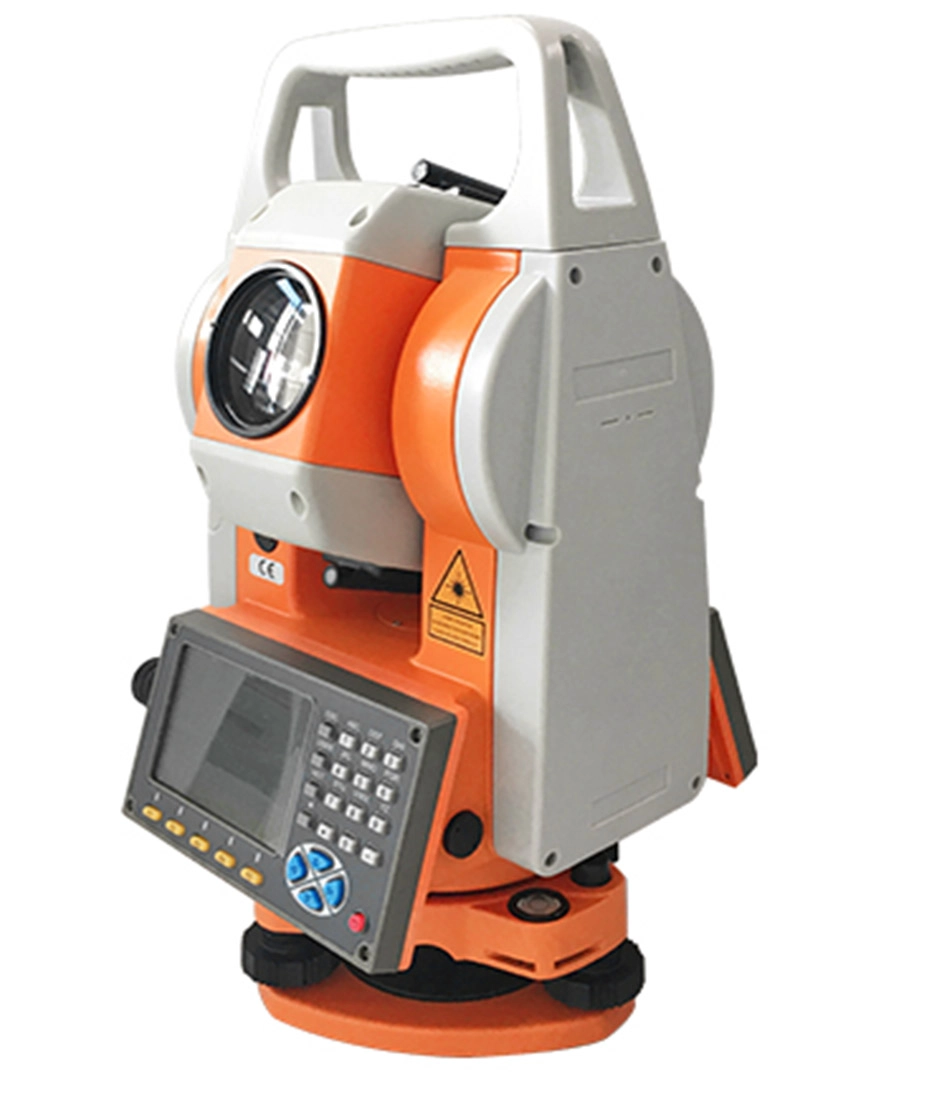

Low-cost and low-cost equipment total station PTS-1202R
- Body
- battery
- Charger
- Power cable
- Lens cap
- Lens hood
- Tool Pouch
- Precision driver
- Lens brush
- Hex wrench x 2
- Cleaning cloth
- Carrying case
- Carrying strap
| PTS-1202R Reflectorless Total Station |
|
Our PTS-1202R reflectorless total stations of this type have more software features than the PTS142R and PTS132R total stations. Large display, 2-axis compansion, and absolute encoding. Without a reflector, the measurement distance is 1000 meters. Depending on the client's request, the long distance can reach 800 meters without a reflector. China total station manufacturer
|
| Model PTS-1202R | |
| telescope | |
| Objective aperture | 45mm (Electrode diameter 45mm) |
| magnification | 30× |
| Field of view | 30 minutes per degree |
| Resolution | 3" |
| Minimum focus | 1.0m(MF) |
| Distance measurement | |
| Mini Prism | 1.5m to 1000m |
| Single prism | 5,000m |
| Three prisms | 8,000m |
| Non-prism | 300-500m (depending on the condition of the object to be reflected) |
| Prism/Reflective Patch Accuracy | ±(2mm2ppm XD) |
| Non-prism accuracy | ±(3mm2ppm×D) |
| Distance measurement time | |
| Normal measurement | 1.2 seconds (standard), 0.7 seconds (high speed) |
| Summary measurement | |
| Track mode | 0.4 seconds |
| Angle measurement | |
| Angle measurement accuracy | 2" |
| Angle measurement method | Absolute reading |
| Minimum Readout | 1 inch/5 inch |
| screen | |
| Screen type | Double-sided (alphanumeric keyboard) |
| Compensator | |
| method | Single shaft (two shaft option) |
| Compensator Range | ±3 inches |
| Centralizer | |
| Visible laser alignment, alignment accuracy: ±1.0mm (apparatus height 1.5m) | |
| Focus range | |
| 0.5~∞ | |
| Angle of view | |
| 3°30 | |
| Durability | |
| Dust and waterproof measures | IP54 |
| Working temperature | -20℃ to 50℃ |
| power supply | |
| Built-in battery | Large capacity lithium battery/Nickel-hydrogen battery |
| Charger | Input voltage AC100-240V, output voltage DC7.5V |
| Operating time (angle measurement distance measurement) | 10 hours |
| others | |
| Instrument size | 343HX172WX177L |
| Weight (including batteries) | 5.4kg |
| Communication interface | RS-232C |
| Internal functions | |
| software | REM measurement, coordinate measurement, |
| Resection measurement, area measurement, | |
| Line setting, missing line measurement, | |
| Coordination, road surveying, design | |
| Storage capacity | 50,000 points |
