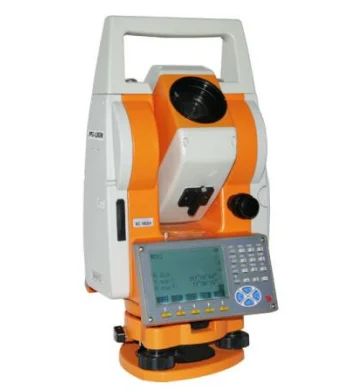

Our this kind PTS-1202R+ Reflectorless Total Station has more software function than our PTS142R and PTS132R Total Station .
With Big Display , Dual Axis Compansation ,and Absolute Encoding . The reflectorless measuring distance is 500m .The long distance can be reach 800m reflectorless if the clients require.
Features:
- Large and high resolution screen guarantees a clear display
- Measure up to 500m in the reflectorless mode
- Extended internal memory accepts up to 50000 points
- Handy EDM head
- Electronic auto compensator
- Equipped with advanced measurement programs and practical software
- Possibility of red laser centering
- Red laser directing ensures pinpoint accuracy in Reflectorless distance measurement
- Easy and direct operation with the alphanumeric keyboard and the function keys
- Long battery life up to 30 hours for angle measurement only
- Rugged, durable, water and dust resistant design
Main Parameters:
- 1000meter reflectorless range
- Dual Axis Compensation
- Single Prism 3000Meter, Triple Prism 5000meter
- 2G SD Card and Card Reader
- Competitive price
- Warranty: one year
|
MODEL
|
PTS-1202R+
|
|
Telescope
|
|
|
|
Erect
|
|
Magnification
|
30X
|
|
Effective Aperture
|
45mm
|
|
Resolving Power
|
4"
|
|
Field Of View
|
1°30′
|
|
Minimum Focus
|
1.5m
|
|
Distance Measurement(under Fair Weather Condition)
PRISMLESS : 500 m
|
|
|
Range 1P
|
3km
|
|
3P
|
5km
|
|
Accuracy
|
2mm+2ppmxD
|
|
Minimum Count
|
1mm
|
|
Distance Unit
|
ft.Or m selectable
|
|
Measuring Time
|
|
|
Fine
|
1.8sec.(first time2.5sec.)
|
|
Tracking
|
0.4 Sec.
|
|
Maximum display
|
999999.999m
|
|
Atmospheric Correction
|
|
|
Temperature
|
C or F
|
|
Atmospheric Pressure
|
hPa/mmH/inHg
|
