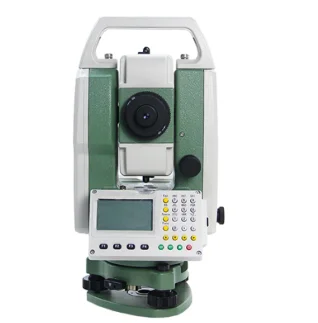

Brand new design with trigger key added
Reflectorless measuring distance:600m(R600)/1000m(R1000)
Bluetooth cable-free connection(standard)
120000 points and 40 jobs can be saved
Alphanumeric keyboard
IP55 environmental protection
Can be operated with a data collector, FOIF FieldGenius or other third party software is available
Technical data
| Telescope | |
| I mage | Erect |
| Objective aperture | φ45mm |
| Shortest focus distance | 1.0m |
| Angle measurement | |
| Reading system | Absolute encoder |
| Angle unit | 360°/400gon/6400mil, selectable |
| Display resolution | 1"/5"/10"(or 0.3mgon/1.5mgon/3mgon) |
| Distance measurement | |
| Laser class(IEC60825-1) | |
| Reflectorless | Class 3A(3R) |
| Reflective sheet/RP60 | Class 3A(3R) |
| Prism | Class 1 |
| Measurement range | |
| Reflectorless*2 | |
| R600/R1000 | 2.0 to 600m/2.0 to 1000m |
| Accuracy | |
| Prism in standard mode | 2 mm+2ppm |
| Reflective sheet/RP60 | 3 mm+2ppm |
| Reflectorless | |
| R600 |
2.0-150m:3mm+2ppm；150-300m:5mm+3ppm 300-500m:10mm+5ppm |
| R1000 |
2 . 0-150m:3mm+2ppm；150-300m:5mm+3ppm 300-500m:10mm+5ppm;500-800m:20mm+10ppm |
| Power | |
| Battery | 3400mAh Li-ion Rechargeable |
| Output voltage | 7.4V DC |
| Charger | FDJ6-LI |
| Charging time(at +20℃) | Approx.4 hours |
| Others | |
| Display | LCD, 6lines X20characters(96 X160 dots) |
| CPU | 32Bit |
| Memory | 120000 points, support SD card(max.16G) |
| Weight(including batteries) | 5.1kg |
| Dimensions(WxDxH) | 175x178x340mm |
| Operating temperature | -20℃ to +50℃ |
| Storage temperature | -40℃ to +70℃ |
| Interface | miniUSB/RS-232C/Bluetooth |
| Water and dust protection | IP55(IEC60529) |
| Data transfer software | FOIF Geomatics Office(FGO) |
