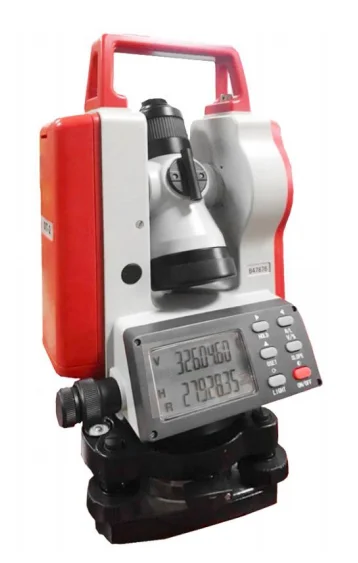

Special design: single horizontal spindle which cross telescope
New design concept, combine higher precision, better stable specification and shock resistance ability.
Absoluteness angle encoder system
Able to read angle data without passing“0”, let angle measurement be more simpler and convenient.
Double CCD in each axle
Let measurement be more accurate,stable,and reliable.
Chinese/English Large display
Adapt backlight technology, able to display horizontal and vertical angle at the same time. Convenient to be used in different condition.
Down Laser point
Able to emit laser beam which in same axis with collimation of telescope,Make the instrument easier to set up and operate.
Specifications
|
Telescope |
Image |
Erect |
|
Magnification |
30x |
|
|
Objective Aperture |
45mm |
|
|
Field of View |
1∘ 30’ |
|
|
Shortest Viewing Distance |
1.35m |
|
|
Stadia Ratio |
100 |
|
|
Angle Measurement |
Angle Measurement Mode |
Absolute Angle Encoder System |
|
Minimum Count |
1” , 5” |
|
|
Accuracy |
2” |
|
|
Display |
Line Segment LCD |
|
|
Angle Units |
BEG/MIL/GON |
|
|
Compensator |
Tilt Sensor |
Automatic Vertical Compensation |
|
Compensation Range |
±3’ |
|
|
Optical Plummet |
Image |
Erect |
|
Magnification |
3x |
|
|
Field of View |
5° |
|
|
Focusing Range |
0.5m ~ ∞ |
|
|
Laser Plummet |
Wavelength |
650nm |
|
Power |
1mW |
|
|
Accuracy |
1mm |
|
|
Diameter |
2mm |
|
|
Operating Temperature |
-20℃ ~ +50℃ |
|
