Key Features
- High-resolution panchromatic band for pan-sharpened output resolutions of 2cm (0.8in) at 60m
- Five spectral bands for multiple vegetation indices and composites
- New professional removable storage standard in CFexpress, enabling up to three captures per second for faster flight speeds, cutting down on time required to map an area

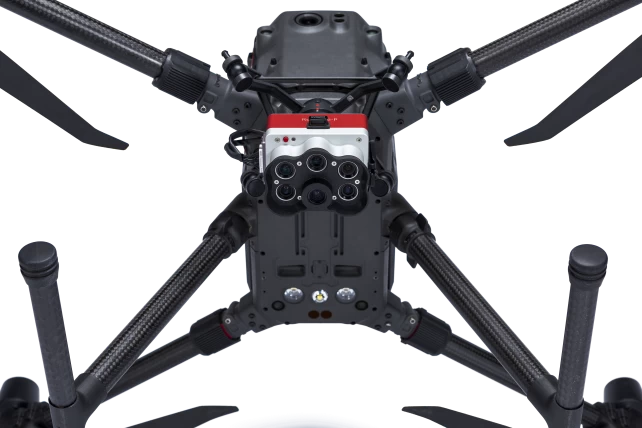

- Electrical and mechanical interfaces compatible with existing RedEdge installations with just a connector upgrade
Application
- Plant counting
- Phenotyping
- Plant health mapping
- Fertilizer management
- Disease identification
- Species differentiation and weed detection
- Advanced crop scouting
- High-res 3D point clouds
Technical parameters
| WEIGHT | 350 g (12.3 oz.) RedEdge-P + DLS 2 |
| DIMENSIONS | 8.9 x 7.0 x 6.7 cm (3.5in x 2.8in x 2.6in) |
| RGB OUTPUT* | 5.1 MP (global shutter, aligned with all bands) |
| SENSOR RESOLUTION |
1456 x 1088 (1.6MP per MS band) 2464 x 2056 (5.1MP panchromatic band) |
| GROUND SAMPLE DISTANCE |
7.7 cm per pixel (per MS band) at 120m (~400 ft) AGL 3.98 cm per pixel (panchromatic band) at 120m (~400 ft) AGL |
| FIELD OF VIEW | 50° HFOV x 38° VFOV (MS) 44° HFOV x 38° VFOV (PAN) |
| EXTERNAL POWER | 7.0 V - 25.2 V |
| POWER INPUT | 5.5/7.0/10W (standby, average, peak) |
| IP RATING | IP4X |
| CAPTURE RATE | Up to three captures per second raw DNG |
| STORAGE | CFexpress card |
| INTERFACES | Three configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage |
| SPECTRAL BANDS |
Blue (475 nm center, 32 nm bandwidth), Green (560 nm center, 27 nm bandwidth), Red (668 nm center, 14 nm bandwidth), Red Edge (717 nm center, 12 nm bandwidth), Near-IR (842 nm center, 57 nm bandwidth) |
| KIT CONTENTS |

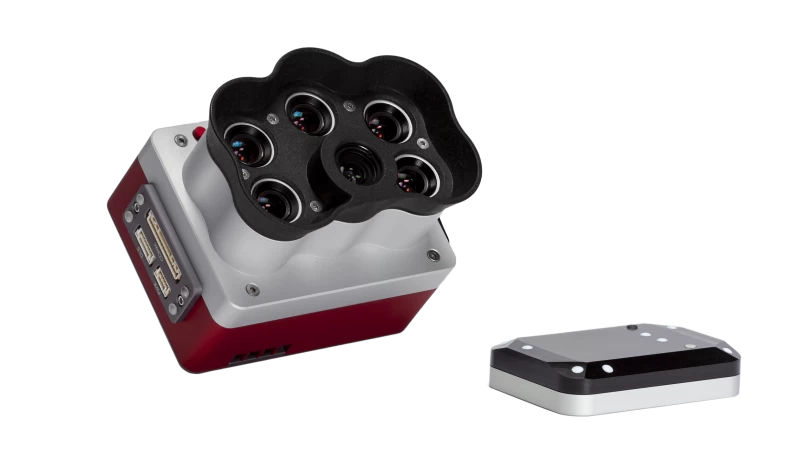

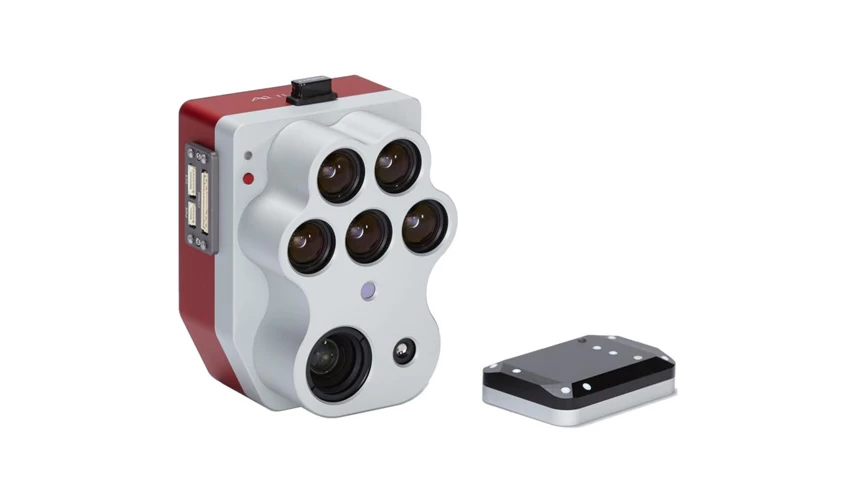

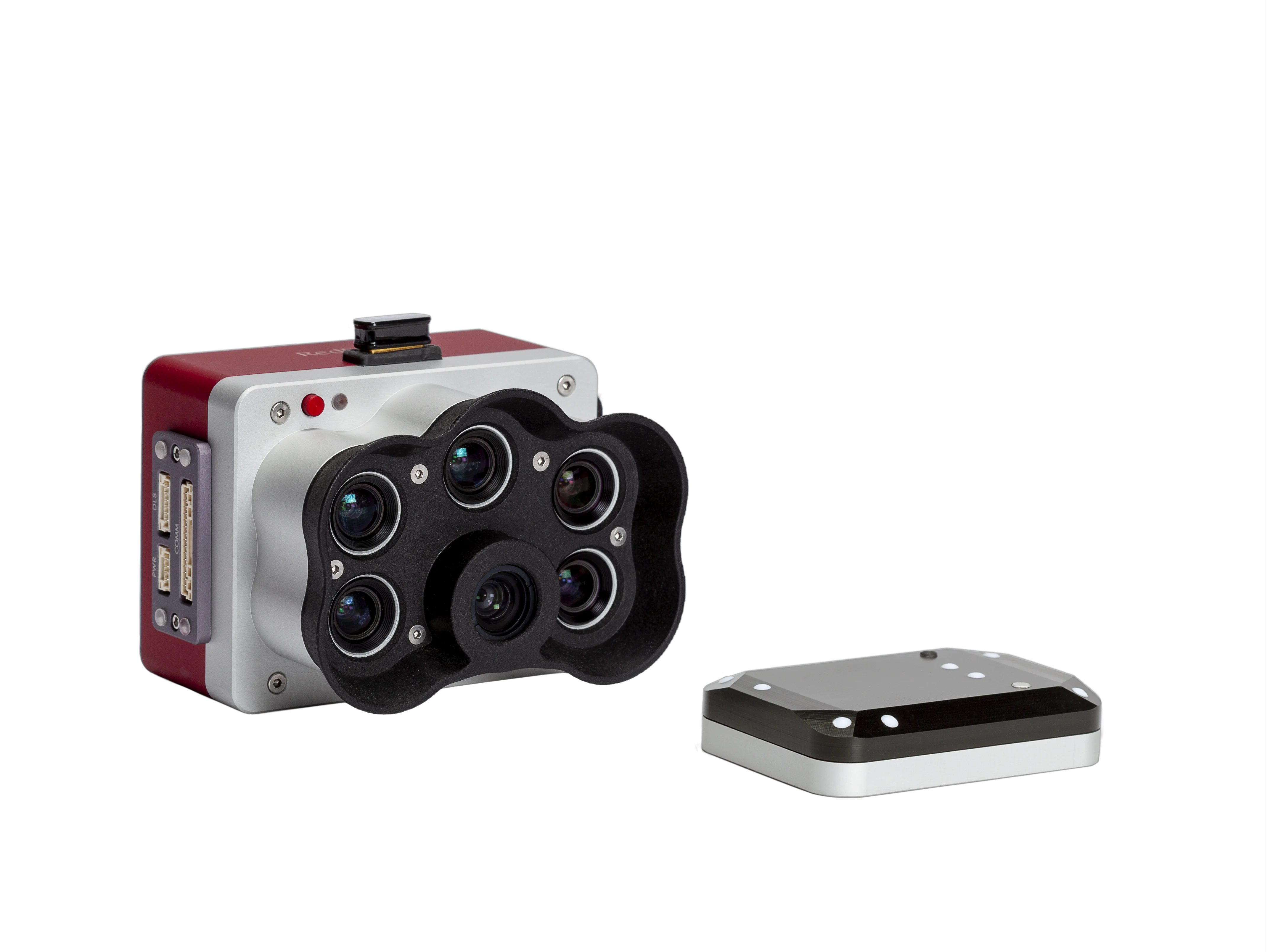

RedEdge-P sensor Lens cover Calibrated reflectance panel DLS 2 light sensor with integrated GPS RedEdge-P and DLS 2 cables Mounting screws Hard carrying case CFexpress card reader |
