Key Benefits
- Simultaneous capture of up to six discrete spectral bands, enabling outputs such as RGB color, crop vigor, and high resolution panchromatic.
- Removable, professional-grade CFexpress storage up to 2TB allowing for 2 captures/second.
- Synchronized multispectral and thermal imagers for pixel-aligned outputs across multiple bands and at incredibly high resolutions.
Use Cases and Applications
The surface temperature of plants changes rapidly under stress conditions. Uses and applications are included but not limited to:
- Irrigation scheduling
- Plant disease detection
- Plant phenotyping
- Fruit yield estimations
- Fruit maturity evaluation and bruise detection
- Water stress prediction
- Pressure issues and clogs detection in irrigation systems

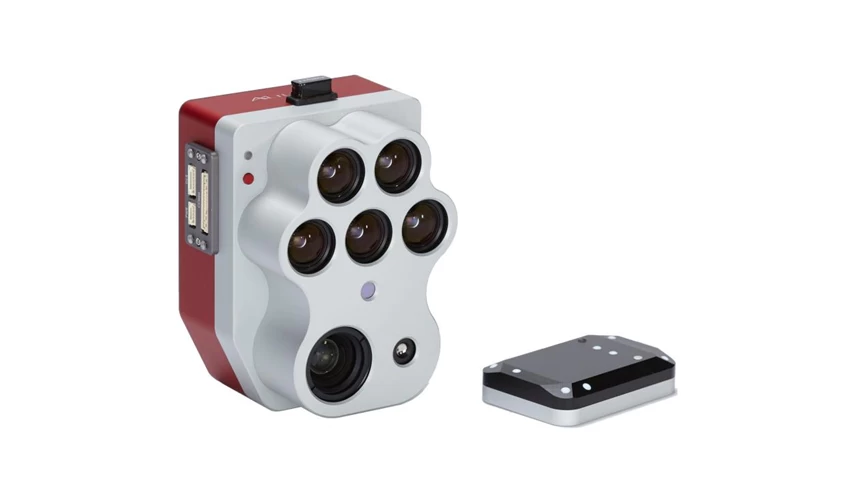

Altum-PT Sensor Sheet
| Weight | 577 g (20.35 oz.) Altum-PT + WI-Fi + CF Express Card + DLS2 & Cables |
| Dimensions | 11.0 x 8.0 x 6.9 cm (4.3in x 3.1in x 2.7in) |
| External Power | 7.0 V - 25.2 V |
| Power Input | 5.5/7.0/10W (standby, average, peak) |
| Spectral Bands |
Blue (475 nm center, 32 nm bandwidth), Green (560 nm center, 27 nm bandwidth), Red (668 nm center, 14 nm bandwidth), Red Edge (717 nm center, 12 nm bandwidth), Near-IR (842 nm center, 57 nm bandwidth) |
| Thermal | FLIR LWIR thermal infrared 7.5 -13.5um radiometrically calibrated |
| Sensor Resolution |
2064 x 1544 (3.2MP per MS band) 4112 x 3008 (12MP panchromatic band) 320 × 256 thermal infrared |
| Multispec GSD @120m (per multispec band) | 5.28 cm per pixel |
| Panchro & Pansharpened GSD @120m | 2.49 cm per pixel |
| Thermal GSD @120m | 33.5 cm per pixel |
| Capture Rate (All bands, RAW, DNG format) | 2 capture per second raw DNG |
| Field of View |
50° HFOV x 38° VFOV (MS) 46° HFOV x 35° VFOV (PAN) 48º x 40º (thermal) |
| Storage | CFexpress Card |
| IP Rating | IP4X |
| Interfaces | 3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage. |
