40nm Process baseband and RF integration

Support BDS/GPS/GLONASS/Galileo

High sensitivity design

Support AGNSS and DGNSS

Smart Supress anit-jamming technology

Supporting precision timing(optional)

Supporting RTK algorithm

AEC-Q100 qualified

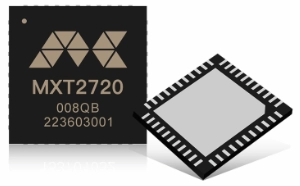

The MXT2720 is aultra small,high-performance GNSS chip with AEC-Q100qualified, designed and developed by MXGNSS based on completely independentintellectual property rights,. The MXT2720 supports all deployed satellite constella-tion ,including BDS, GPS, GLONASS, Galileo, QZss, etc, The MXT2720 is mainlytargeted for application that require small size and high precision. The chip issuitable for automotive, industrial, consumer electronics and other fields.

Technical Feature

Specifications

Signal Tracking	GPS/QZSS L1CA / L2C /L5
	BDS B1I/ B1CB2I / B2a / B2b / b3I
	GLONASS L1 / L2
	Galileo E1 / E5a / E5b
Position Accuracy	1.0m CEP
	RTD:0.5m CEP
	RTK: 1.0cm+1ppm CEP
TTFF	Cold Starts :28s
TTFF	Hot Starts: 1s
Sensitivity	Acquisition : -147dBm
Sensitivity	Tracking : -164dBm
Velocity Accuracy	0.03m/s
Nav. Update Rate	1 / 2 / 5 / 10HZ
1PPS Accuracy	20ns
Operational Limits	Altitude : 18000m
	Velocity : 515m/s
	Dynamics : 4g
Nav. Data Format	NMEA 0183
	MXT Data Format
	RTCM 2.3 / 2.4 / 3.X
Power Consumption	30mA@3.3V
Package	5x5mm QFN
Supply	3.3V
Temperature	Ambient -40℃~85℃
Temperature	Store -40℃~85℃

Application Area
