Ice map ™ ice B Sea RiDge T Hikness D detection R Adar

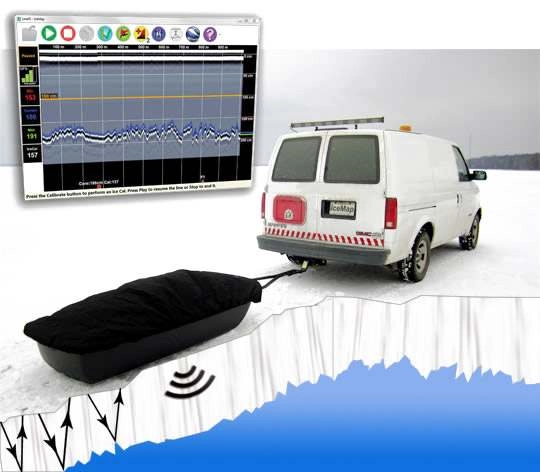

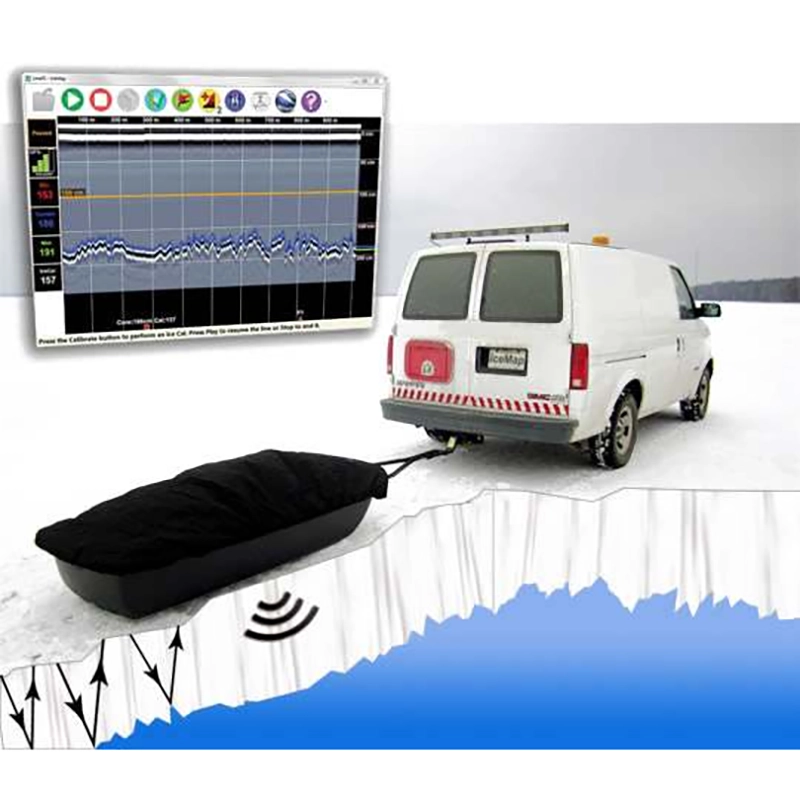

Continuous, real-time ice thickness measurements to ensure safety on winter ice roads.

Technical Features:

◇Can detect ice thickness less than 10m

◇ Radio control of laptop antenna unit: Transfer collected data to laptop computer in real time

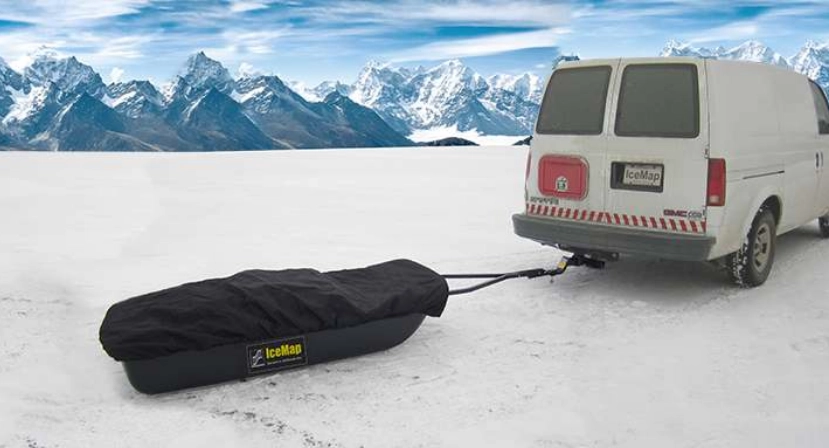

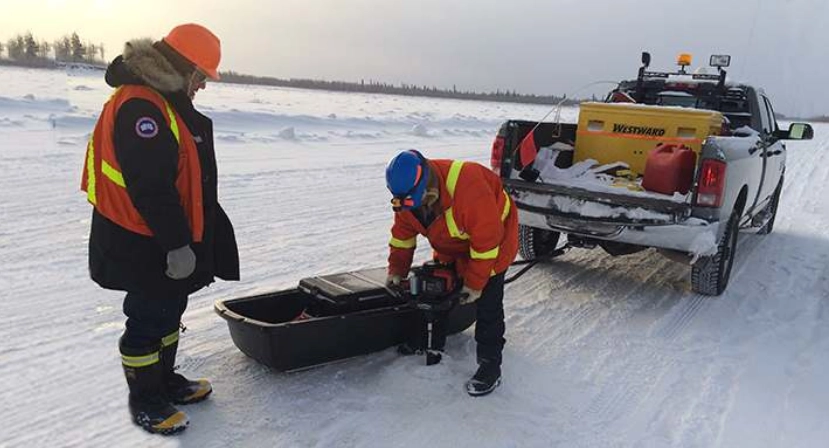

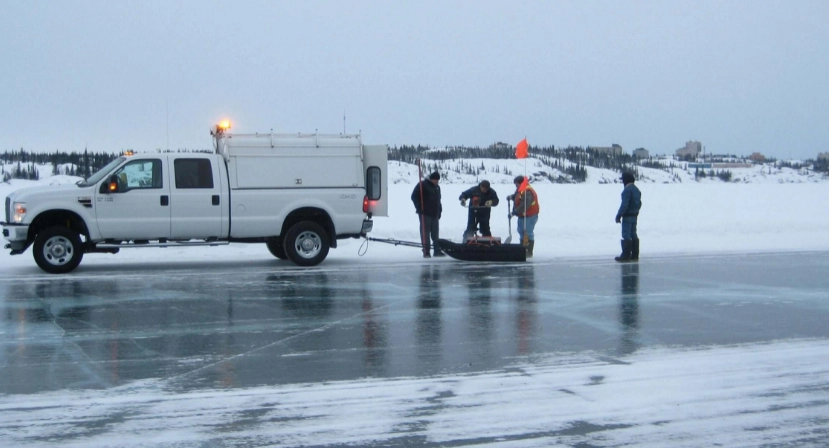

◇The antenna can be dragged by mechanical vehicles by moving at high speeds: up to 80km/h

◇Monitoring and recording of small and large thicknesses

◇Ice hazardous area warning function: Can be achieved by setting a valve with the thickness of the ice.

◇Continuously recorded GPS information allows you to accurately determine offline frozen hazardous areas maps on Google Earth

◇ Data playback display function, easy access to check

Real-time ice thickness measurement

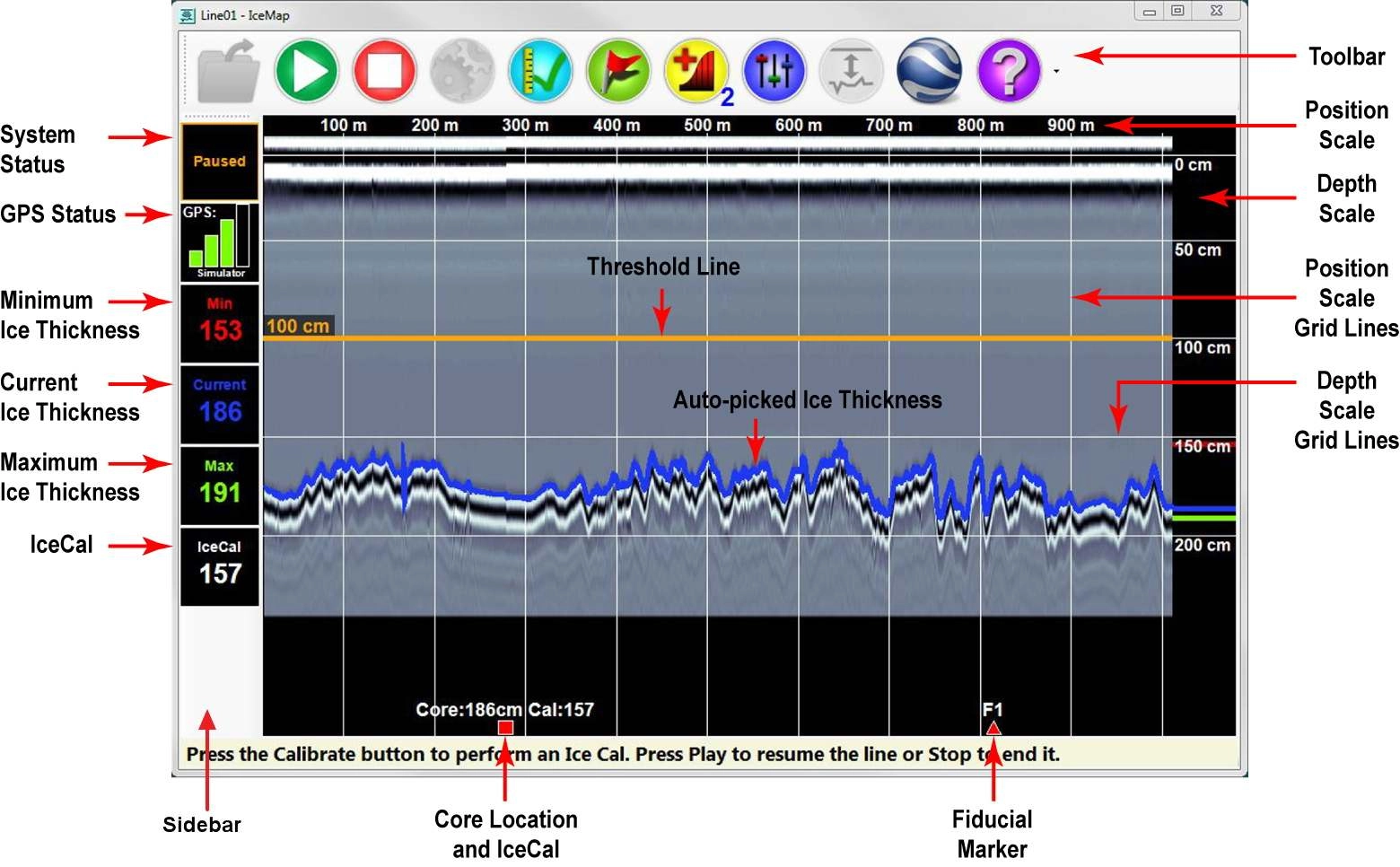

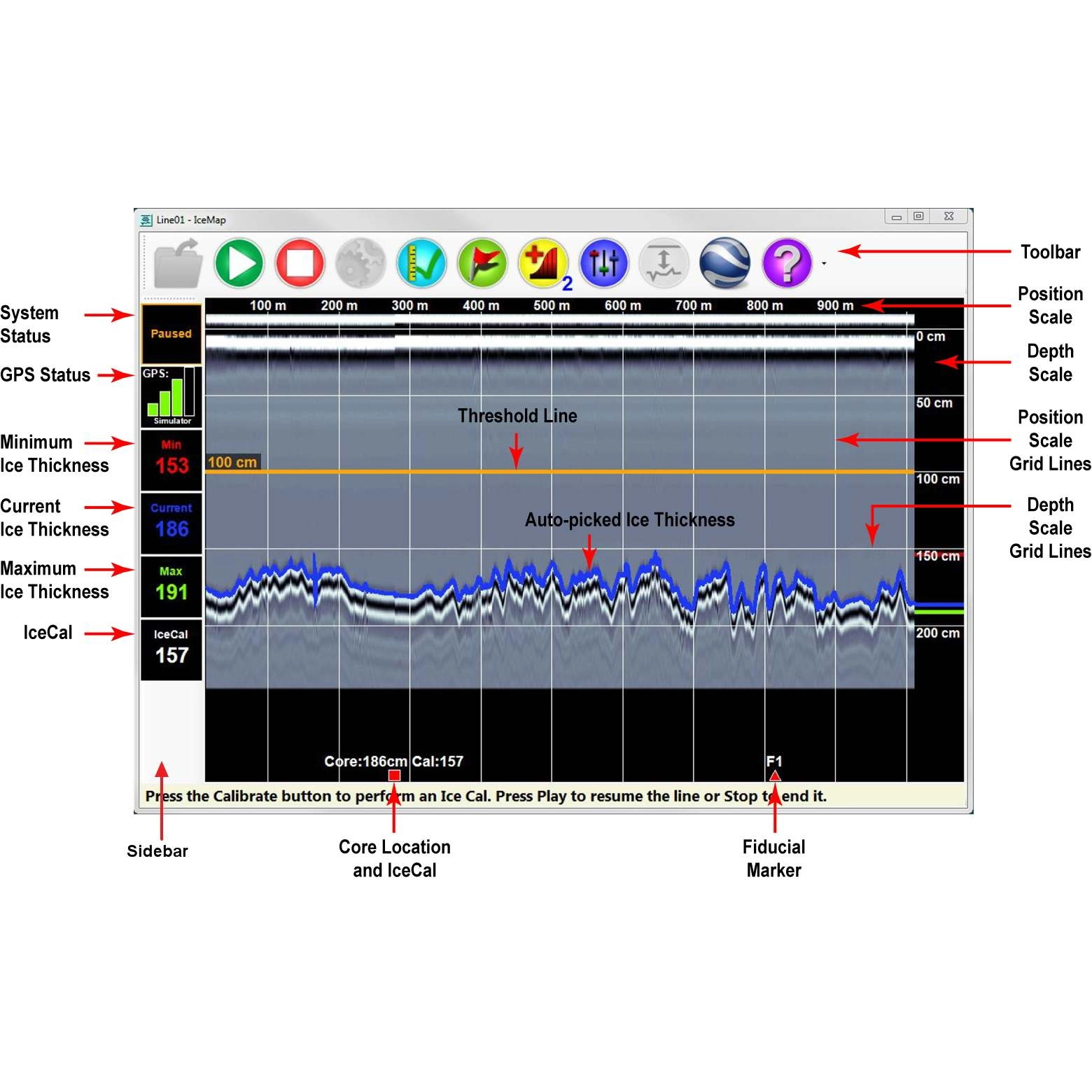

of Underground radar The IceMap™ Real-Time Display displays the automatically detected bottom of ice (blue lines) in real time. Users can set a minimum thickness warning threshold (gold wire).

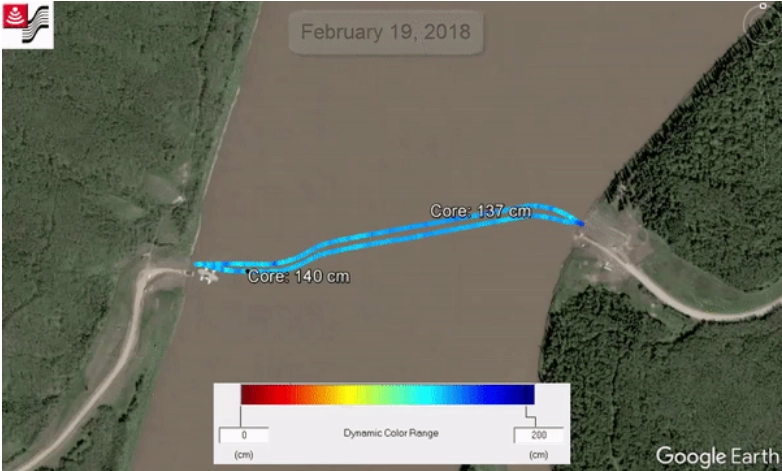

IceMap™ From thickness data for ice bridges in Alberta, Canada.

IceMap™ Data Collection Software

To collect IceMap™ data, users simply set the desired vehicle speed (km/h or mph), scan depth, and step size (measurement interval). All other parameters are automatically optimized for the highest quality data.

Data Review

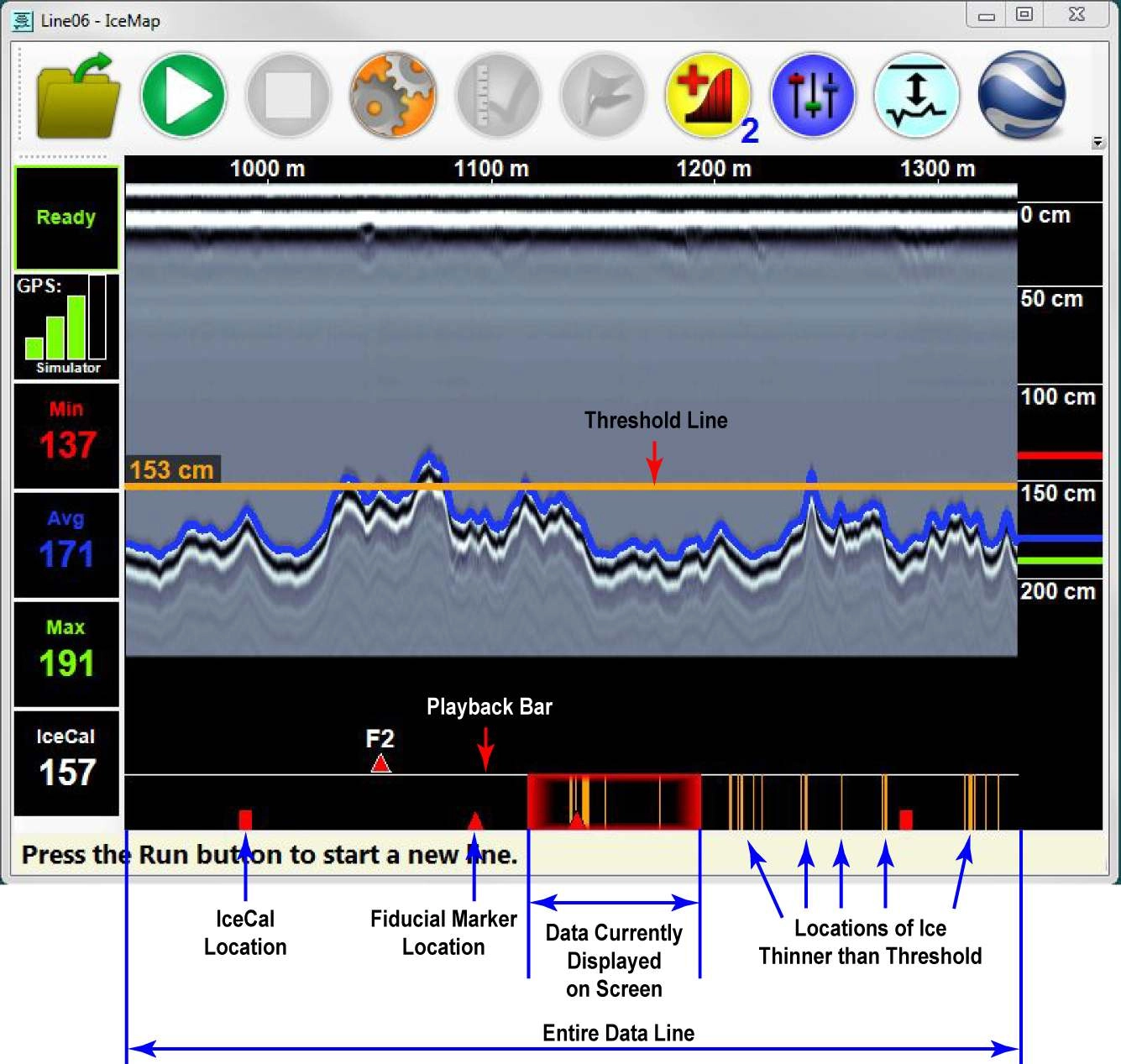

After collecting IceMap™ data, the playback bar plots an area where ice is thinner than the threshold (orange line). Quickly identify where the problematic area is.

Data Edit

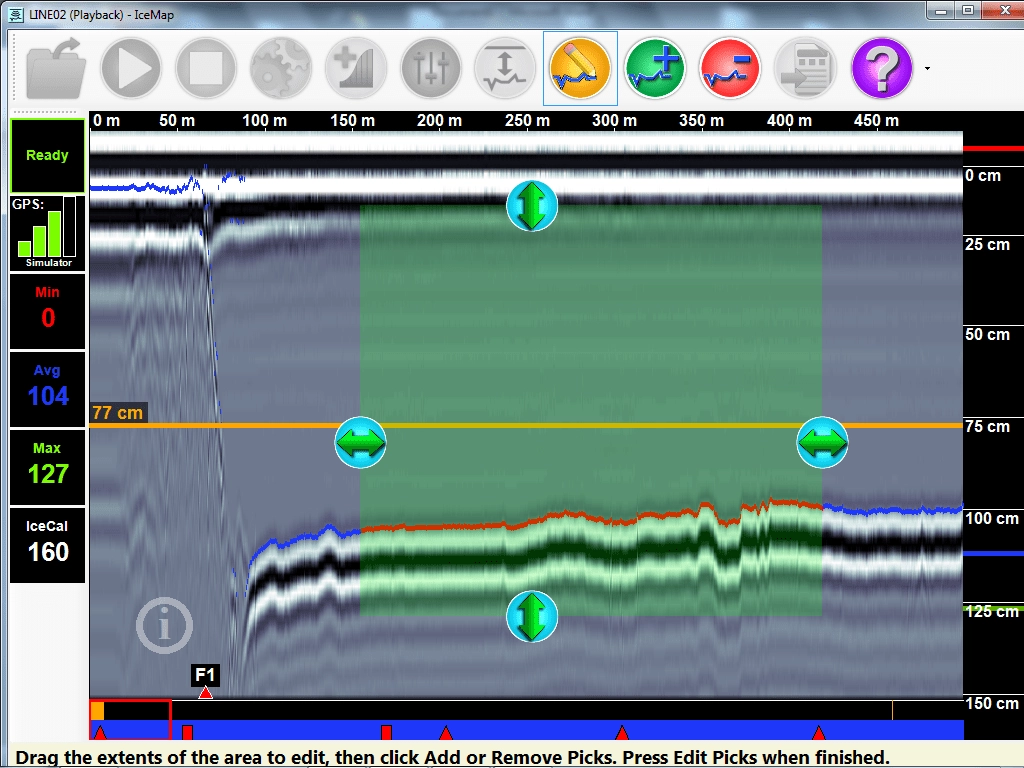

After collecting IceMap™ data, operators can edit it by clicking the button on the toolbar.

50. The user drags the edge of the box on the touchscreen to define the area to delete or repick a pick.

Ice thickness report

Reports in PDF format are generated quickly from IceMap™ data.

50. Users can define survey names, starting and ending locations, and additional comments.
50. The Ice Calibration overview lists the IceCals that were run. Their location and measured ice thickness
50. The thinnest ice section table, including the full length and longest continuous portion of thin ice.
50. The exception table plots the area where the picks were manually deleted. These areas may indicate that the ice has been broken
50. Map view view of IceMap™ lines
50. Schematic cross-section of IceMap™ Line Ice Thickness
50. Detailed cross-sections for every 1000 meters of IceMap™ line

specification :

If you are interested in this product, please feel free to contact us.
