Industry Applications
Our products are being used in more than 10 industries with more than hundred types of scanning scenarios, mainly being used in forestry,
mining, material volume measurement, tunnels, geographic information, bridges,slopes, and real estate survey etc.
Heap Metrology
Mine Applications
Ancient Architecture Applications
Forestry Survey
Mine Applications
Engineering Architecture
Building BLM
Supporting Accessories(optional)
Whether it is being used with handheld, head-mounted, extension rod, robotic dog and other ways, it can be easily handled and greatly expanded
into Wide range of application scenarios.
Handheld
Head-Mounted
Backpack
Drone
Robotic Dog
Extension Rod
GoSLAM lidarWorks

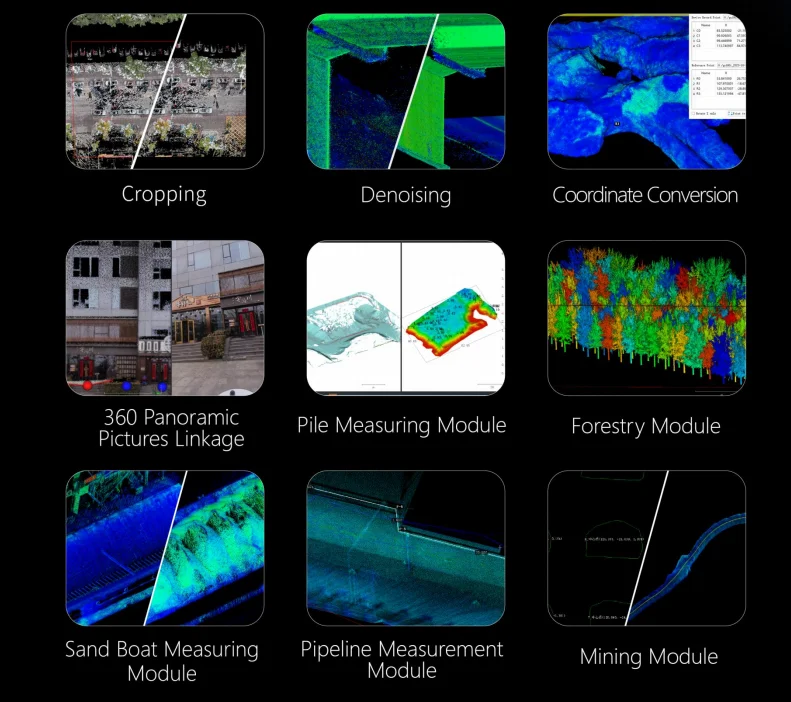

GoSLAM LidarWorks point cloud processing software is a powerful point cloud editing and application software. It supports basic functions such
as massive point cloud browsing, cropping, noise reduction, smoothing, coordinate conversion and stitching. At the same time, it also supports
mesh encapsulation and optimization, linkage between panoramic pictures and point cloud as well as a variety of industry application modules
including foresty module, sand boat measurement module, pipeline measurement module, pile measurement module and mining module.When
processing GoSLAM scanned data, you can also enjoy convenient operations such as automatic recognition of supporting files.
Product Parameter
| M40 | |
| Laser Class | Class I (eYE-Safe) |
| Visual Slam | 5 Million Pixels (Front) |
| Point Cloud Colorizing | Internal Front Camera, Color Module |
| Color Module | 8K 360 Degree Panoramic Camera (Optional) |
| Scanning Range | 40m(10% Reflectivity) 70m(80% Reflectivity） |
| FOV | 360°×59° |
| Scanning Speed | 200,000 Points/Second |
| Internal Hard Disk | 512G Hard Disk |
| ExternalThird-Party RTK | Support |
| Working Time | 2.5h(There ls No Panoramic Color Module) |
| Working Temperature | -35°C~55°C |
| IP Level | 65 |
| Material | Aviation Grade Aluminum |
| Weight | 840g (Excluding Battery) |
| Size | 146x103x269mm |
