New way of mobile measurement

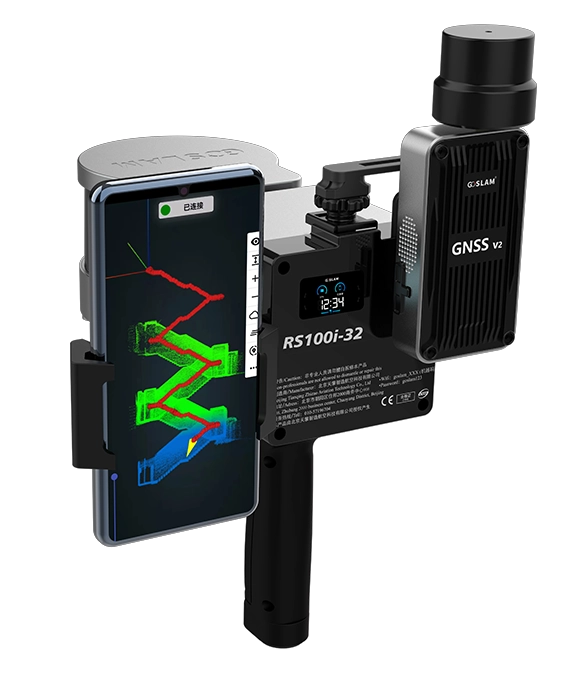

The GoSLAM RS100i-32 mobile scanner supports a variety of scanning modes and is suitable for a variety of application scenarios. GNSS module can be switched quickly, supporting scanning to obtain WGS84 and CGCS2000 coordinate system point cloud, using the second generation of mapping program, absolute accuracy of about 2cm.

Mixed solution, export and use

• Multiple solutions ensure that the data is correct 
• High protection, multi-platform 
• Long distance, high frequency

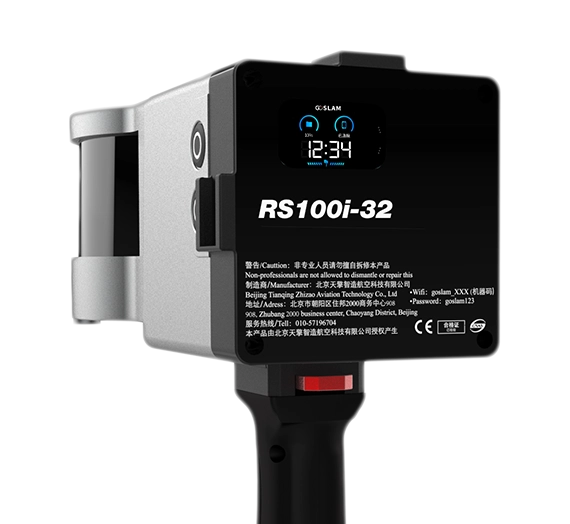

Color status screen

New color status display, larger size, support more status information display, as well as the use of instructions, easier to use and easier to use.

Open system platform

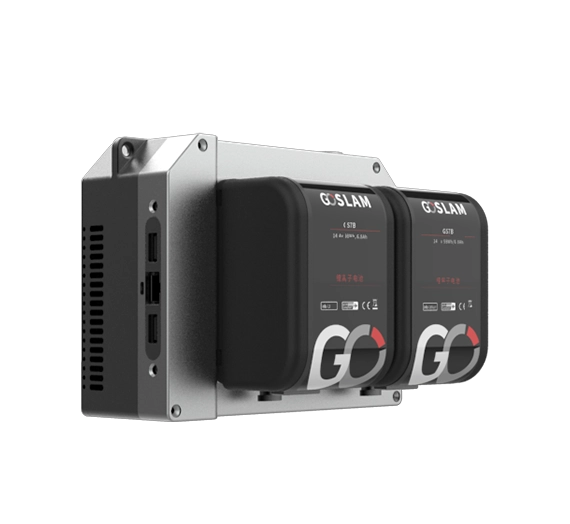

GoSLAM RS100i-32 supports a variety of data transmission modes, including mobile solid state drive, USB flash drive, and wifi and Ethernet connection. The system has an open interface and can realize collaboration with third-party systems, which brings more possibilities for expanding application scenarios and application modes.

Strong performance

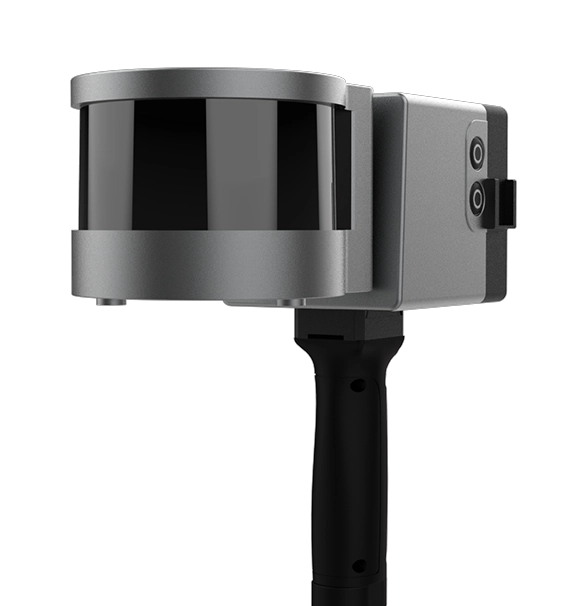

Equipped with rotating laser side head, 120m range, 640,000 points per second, relative accuracy of 1cm; It also supports various scanning modes and is equipped with GNSS module, which is fast and flexible and suitable for various application scenarios.

Hybrid solution technique

RS100i-32 product has a unique Hybrid solving technology of HSL (Hybrid solving), which can solve the data of the last station in the scanning process, and the high-precision data is faster and the efficiency is greatly improved.

Super weather resistance and multi-platform support

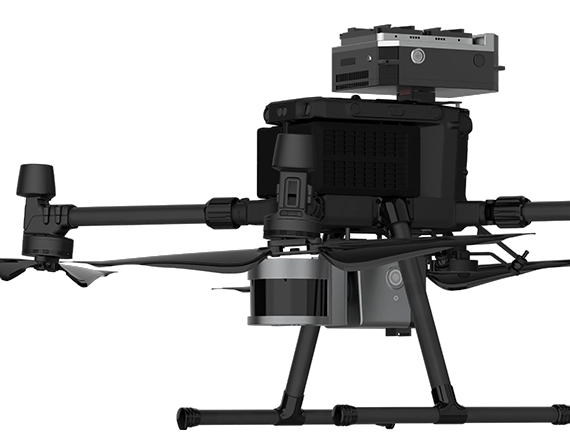

RS100i-32 system has super weather resistance, can operate in -35-60℃ environment, inherited excellent platform compatibility, support backpack, UAV, vehicle, unmanned boat, robot dog and other platform scanning mode, meet your mobile measurement of a variety of imagination.

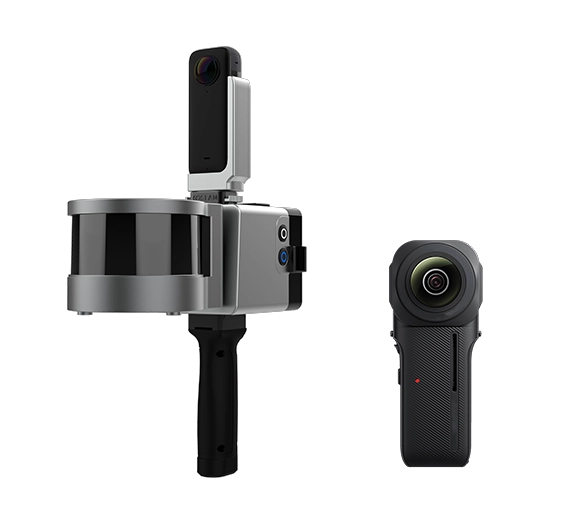

Color Module

True color point cloud attached color, synchronous generation of panoramic photos and videos, support panoramic linkage function.

Real-Time Preview Of Mobile APP

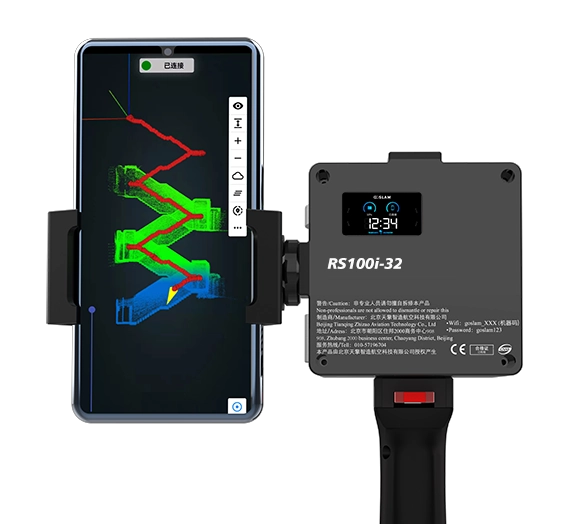

Mobile apps replace traditional touch screens. Browse point cloud data in real time through APP during operation. It supports a variety of browsing interaction and more human-computer interaction content

Supporting post-processing software

Standard post-processing application process

Scanning distance:

120m

Scanning speed:

0.64 million points/second

Point accuracy:

1cm (maximum)

Point accuracy:

1cm (maximum)

Solution:

Hybrid algorithm

Operation mode:

Physical button + Mobile APP

Working status:

LED status screen

Built-in SSD:

1TB expandable

Product shell:

Aviation grade aluminum (high protection, high anti-interference)

Scanning localization:

SLAM technology (no GPS required)

Working time:

4 hours

Multi-platform:

Hand-held, backpack, UAV, vehicle-borne safety kits

Operating temperature:

-35°-60°C

Weight:

1.35KG (handheld)

Laser level:

Level 1 eye safety

Number of laser lines:

32

Number of laser heads:

1

Number of laser heads:

1
