GO5-HS Pipeline CCTV Detection Robot

GO5-HS Series Pipeline CCTV Detection Robot Series products belong to the new generation of digital HD pipeline CCTV Detection Robots, which can be used as a tablet, laptop or special industrial controller as main control, allowing wireless or wired connection control. You can freely choose.

Scope:

Urban (industrial) drain pipes, water pipe culverts, general culverts, cable trenches, tunnels

Product overview

GO5-HS Pipeline CCTV Detection Robot is a high-resolution pipeline CCTV Detection Robot that can use tablets, laptop computers, or special industrial controllers as main control, allowing you to freely select wireless or wired connection controls. Store real-time views and high-resolution storage. Definition detection video.

You can quickly obtain images of defects during the testing process and immediately obtain test reports after the test is complete. Additionally, the pipeline slope curve can be obtained in real time during the detection process to determine defects. Internal deposition of the pipeline.

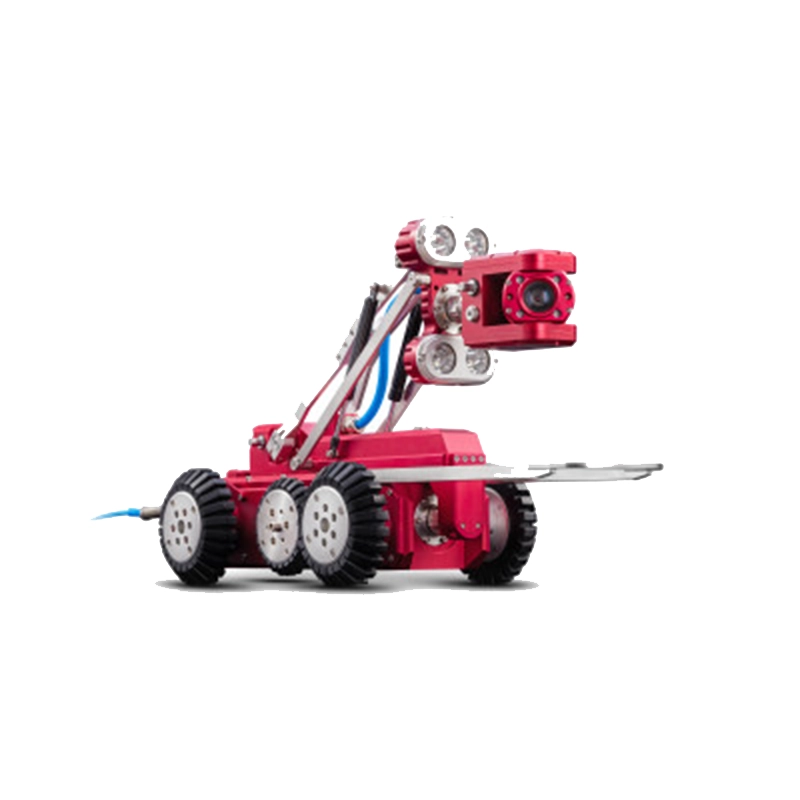

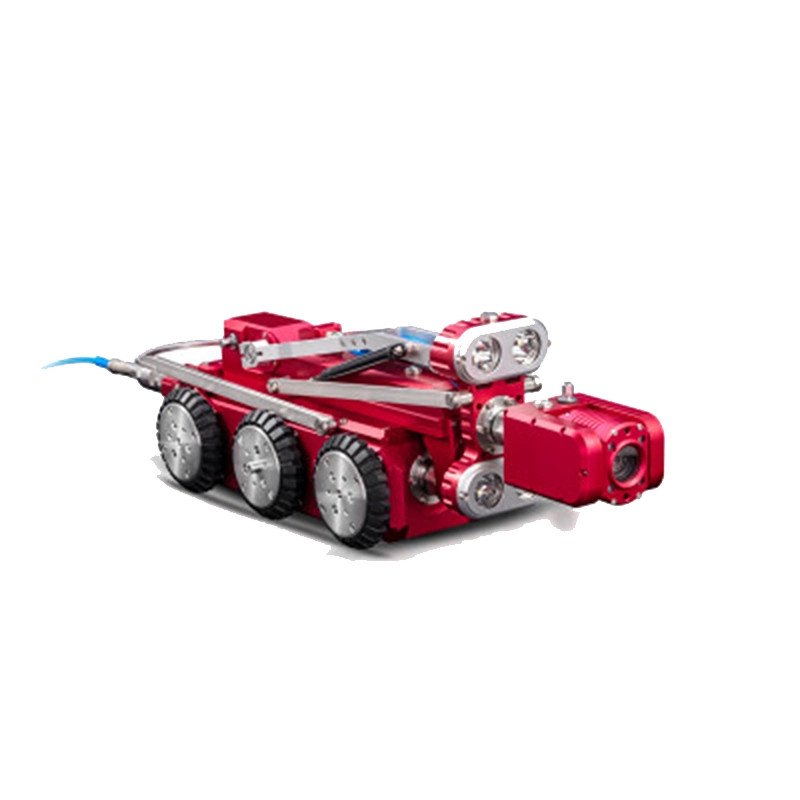

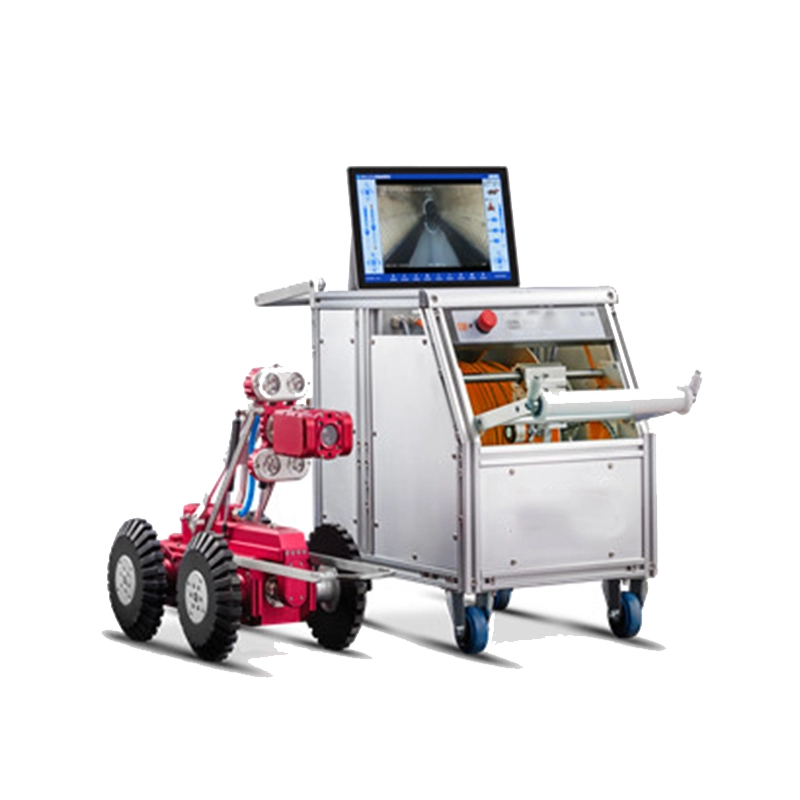

GO5-HS Pipeline The CCTV detection robot consists of four parts: a crawler, lens, cable tray and a control system. Over time, the crawler can be equipped with a variety of lenses (e.g., rotating lenses, direct lenses, fisheye lenses). (eye lens), via cables connected to the control system, respond to control system operation commands such as forward, backward, steering, stop, speed adjustment, rising, descending, lighting adjustment, etc. Horizontal or vertical rotation, focus, doubling, front and rear switching, etc. During the detection process, the control system can view, record and enter images returned by the video and crawler status information in real time. Comment information through the touch screen.

Product Features

1. Control System Configuration: Any laptop computer with built-in collection and analysis software can be used as the control system.

2. Control format: Wireless control;

3. Control functions: Control crawler movement, up and down the lift, lens rotation, receiving and releasing cable trays, adjusting light sources, and more through touchscreen operation software.

4. Video Display: Set the video and display resolution at the same time.

5. Status display: Displays time, date, distance, and crawler attitude information in real time, and sets the information display.

6. Applicable pipe diameter: 300mm-3000mm

Technical specifications

Digital HD

2 MP HD quality, you can freely switch between the screen and the front and rear.

Long distance detection

Achieves 300m long distance detection in a DN300mm pipeline.

Wireless Control and Transmission

Master Control Wireless Control combines with a mobile network for cloud data interaction.

Drive powerfully

The crawler is independently driven by six wheels, rotates 360 degrees on the spot, with a central transition wheel increasing barrier capacity. Motor shutdown and automatic protection circuit against overcurrent Voltage, stronger stability; the center of gravity design is reasonable to effectively prevent rolling, with a maximum slope resistance of 40° and a maximum slope climbing capacity of 45°.

Real-time monitoring

It supports online remote video live broadcasting, allowing you to accurately position your live in real time.

On-site evaluation report

The detection process can read screenshots in real time, output test and evaluation reports that comply with industry standards and specifications, and provide a wealth of report templates.

Support Software

Main Controller Pre-installed Pipe CCTV Pipeline Detection and Evaluation Reporting Software. Control robots, video surveillance video, enter detection records, read screenshots, automatically evaluate, calculate, and output detection rating reports that meet industry and regional standards.

With pipe Site Pipeline Detection Video Evaluation Reporting software can play read and evaluation report output and archive output data according to engineering classification for disk archive or GIS system data hanging.

It is equipped with a pipe Tracer pipeline detection and positioning tracing software to measure and draw the slope curves at the bottom of the pipeline and the path curves of the pipeline in real time, and export profile maps of pipeline deposition status.

If you are interested in this product, please feel free to contact us.
