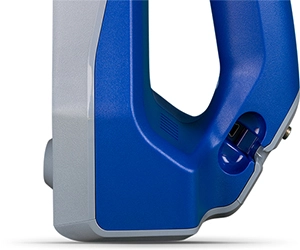

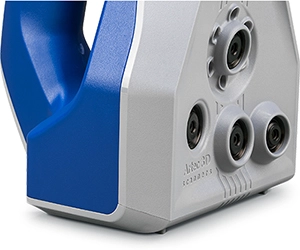

Measurement Accuracy Industrial 3D Scanner Artec Space Spider
- Brand name: Artec
- Model name: Artec Space Spider
- Place of origin: China
- Warranty period: 1 year
- Support express: sea mail, air mail
|
•Product design •Customize •3D documents |
• Heritage preservation •Architecture ・CGI •fashion |
•Orthopedics •Prosthetics •Plastic surgery •Custom wheelchair |
•research •training •Online museum |
industrial design and manufacturing • Reverse engineering •Quality control •Rapid prototyping •Aerospace |
►fast scan speed
7.5fps
Achieving high accuracy doesn't have to be time consuming. Artec Space Spider processes up to 1 million points per second. |
►High 3D point accuracy
0.05mm
Create detailed, highly accurate 3D models of small industrial objects or parts of large objects |
 |
 |
►Impressive 3D resolution
0.1mm
Capture the shape of your items with incredible accuracy. Space Spider can even render the ridges of a fingerprint and pick up that much detail. |
►texture resolution
1.3 megapixel
Create a full-color 3D replica of your object Space Spider can even render the ridges of a fingerprint and pick up that much detail. |
| Technical specifications | |
|
3D point accuracy, to
|
0.05mm
|
|
3D resolution, to
|
0.1mm
|
|
3D accuracy over distance, to
|
0.05mm0.3mm/m
|
|
Working distance
|
0.2～0.3m
|
|
straight field of view, H×W @ close range
|
90×70mm
|
|
straight field of view, H×W @ farthest distance
|
180×140mm
|
|
viewing angle, height x width
|
30×21°
|
|
Ability to capture textures
|
yes
|
|
texture resolution
|
1.3mp
|
|
color
|
24bpp
|
|
3D reconstruction rate, to
|
7.5fps
|
|
data acquisition speed, to
|
1 million points/second
|
|
3D exposure time
|
0.0002 seconds
|
|
2D exposure time
|
0.0002 seconds
|
|
3D light source
|
blue LED
|
|
2D light source
|
White 6 LED array
|
|
interface
|
1 x USB 2.0, USB 3.0 compatible
|
|
computer requirements
|
|
|
Compatible OS
|
Windows 7, 8, or 10 x64
|
|
Recommended computer
requirements
|
Intel Core i7 or i9, 32 GB RAM,
GPU with 2 GB VRAM
|
|
Minimum computer requirements
|
Intel Core i5, i7 or i9, 18 GB RAM,
GPU with 2 GB VRAM
|
|
Output format
|
|
|
3D mesh format
|
OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
|
|
CAD format
|
step, IGES, X_T
|
|
Measurement format
|
CSV, DXF, XML
|
|
Power supply and dimensions
|
|
|
power supply
|
AC power or external battery pack
|
|
W
|
190×140×130mm
|
|
weight
|
0.8kg / 1.8lb
|
P
