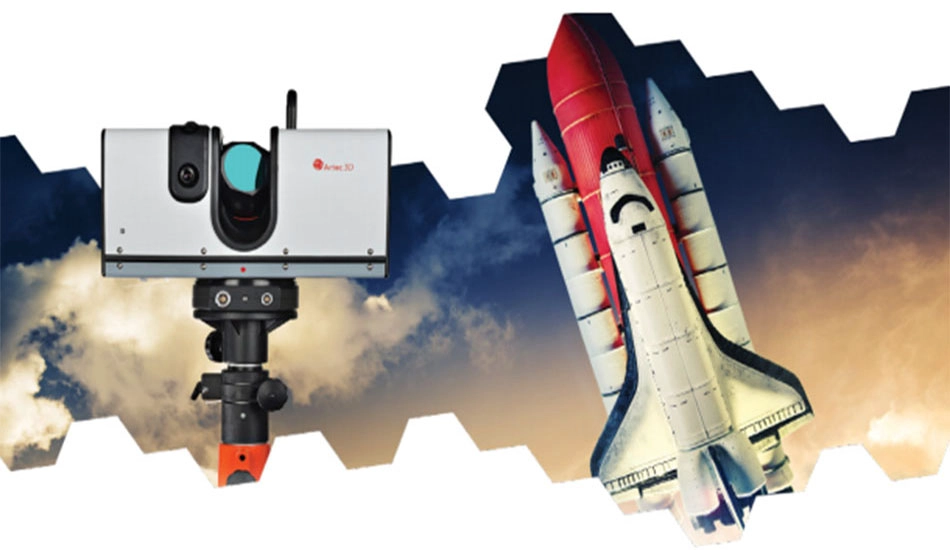

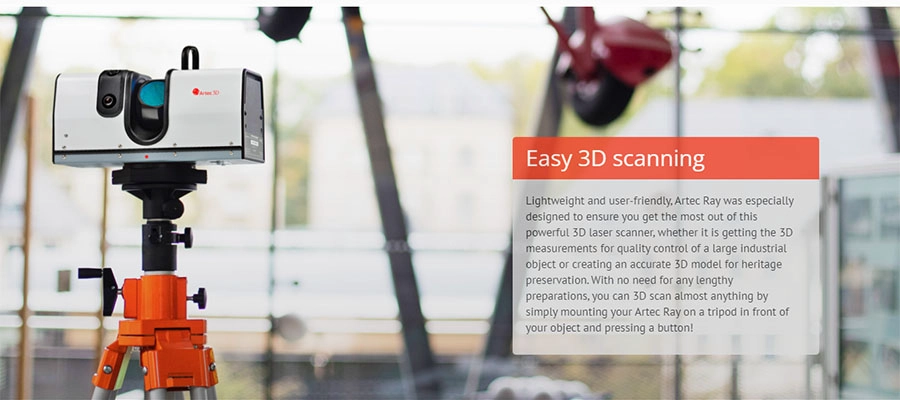

Artec Ray 3D LiDAR Scanner
High accuracy long-range laser 3D scanner, ideal for precise capture of large objects.
The fastest and most accurate long-range 3D scanner with laser technology for precise capture of large objects such as wind turbines, ship propellers, airplanes and buildings. Producing 3D scans of the highest quality, Artec Ray scans with submillimeter distance precision and best in class angular accuracy. As a result, data capture is noticeably cleaner than that from other 3D laser scanners, with noise levels at an absolute minimum. This speeds up data processing significantly, making it a hassle free job.
Scan up to 110m away with this professional LIDAR solution.
 |
 |
 |
||
| Ultra-high precision, fast laser 3D scanner with submillimeter precision to ensure you capture every detail | Cleanest 3D data capture for minimum post-processing timeconstruction. Scan large objects both indoors and | Ideal for reverse engineering, inspection and construction. Scan large objects both indoors and outdoors! |
 |
 |
 |
||
Perfect long-range 3D scanner
Capture complex constructions such as warehouses, factories, airports, and apartment buildings to get precise and clean 3D data about the building, such as its size, structure, facade, and more. Thanks to Ray’s extreme accuracy and cleanliness of data, you don’t need to spend much time on processing. Put the scanned material to work right away! |
Best-in-class industrial laser scanner
A large working facility, an airplane, an oil rig, or even an outdoor space — whatever industrial object or scene you need to scan, Ray has you covered. Versatile and portable, this industrial 3D scanner is perfect for digitizing and measuring large structures with metrology-grade accuracy at any time and place — day or night, indoors or outdoors.time and place — day or night, indoors or outdoors.P |
LiDAR 3D scanner for exact 3D measurements
Thanks to built-in LiDAR 3D scanning technology, Artec Ray allows you to capture precise long-range 3D measurements of complex objects and shapes from up to 110-meters.TThanks to built-in LiDAR 3D scanning technology, Artec Ray allows you to capture precise long-range 3D measurements of complex objects and shapes from up to 110-meters.TThanks to built-in LiDAR 3D scanning technology, Artec Ray allows you to capture precise long-range 3D measurements of complex objects and shapes from up to 110-meters.T |
Artec Ray technical specs:
| Range | Up to 110 m |
| Ranging error | <0.7 mm @ 15 m |
| Angular accuracy | 25 arcseconds |
| Range Noise, 90% reflectivity | 0.12 mm @ 15 m |
| Range Noise, 10% reflectivity | 0.3 mm @ 15 m |
| Color | Two fully integrated 5 megapixel cameras |
| Weight | Under 5 kg |
