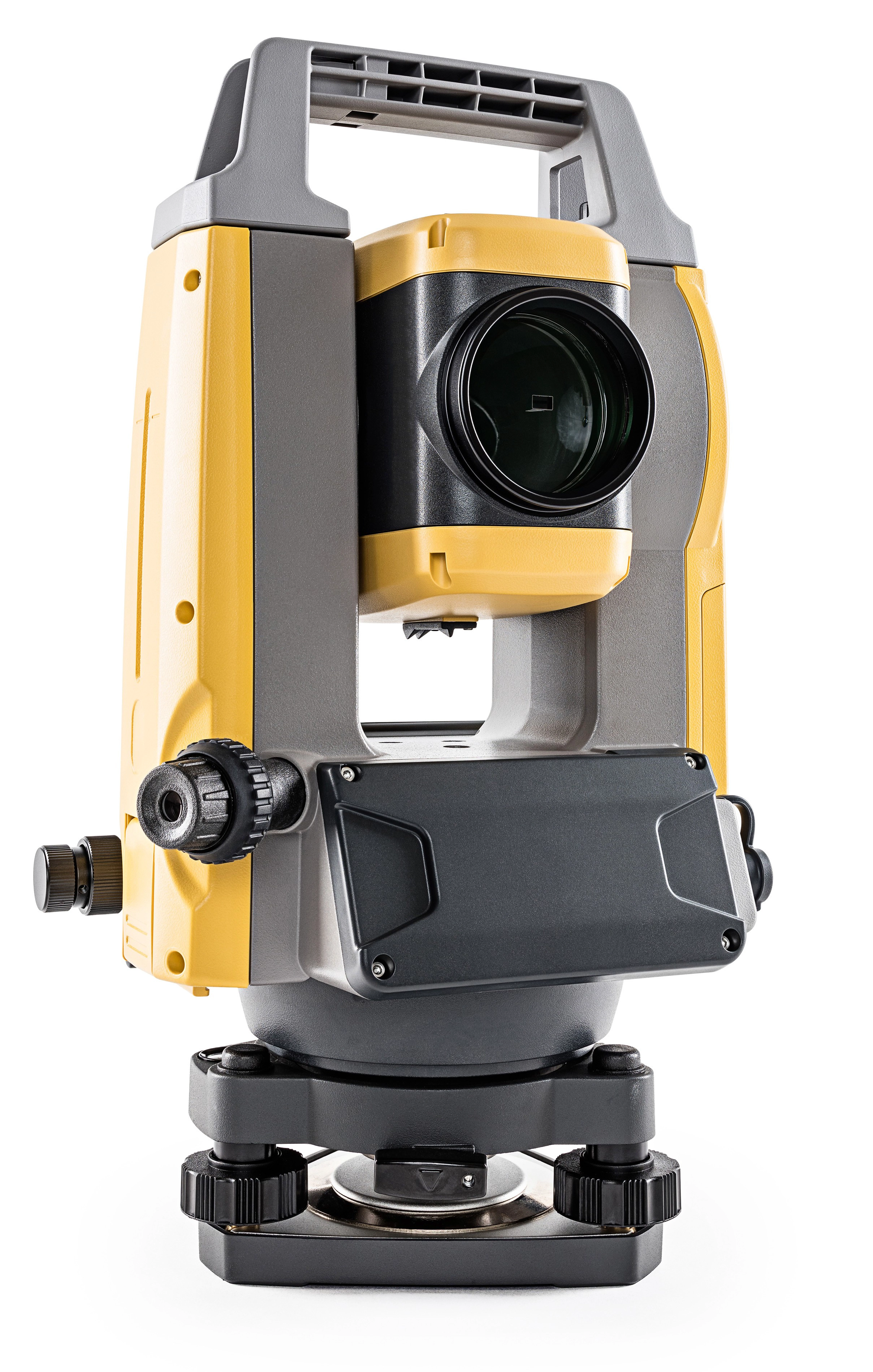

High Quality, High Return!
• Construction and Survey Application Software
• Fast & Accurate & Powerful Measuring Distance Feature
• 500m Long Range Reflectoress Measurement
• Rugged & Waterproof Design
• Reliable Large Volume Internal Memory
Fast and Powerful Reflectorless EDM
• Fast and accurate pinpointing with phase shift technology.
• Fast distance measurement of 0.9s regardless of object.
• Minimum reflectorless measuring distance - just 30cm.
• Improved collimation with super-bright pointer.
• Smaller EDM beam spot size for minimal distance measuring error.
• Dependable measuring even at shallow incidence angles.
• Ensures accurate reflective sheet distance measurement.
SPECIFICATIONS
| Telescope | |
| Magnification / Resolving power | 30x / 2.5" |
| Others |
Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels |
| Angle measurement | |
| Minimum Display | 1”/5” (0.0002 / 0.001gon, 0.005 / 0.02mil) |
| Accuracy (ISO 17123-3:2001) | 2" |
| Dual-axis compensator / | Dual-axis liquid tilt sensor, working range: ±6' |
| Collimation compensation | On/Off (selectable) |
| Distance measurement | |
| Laser output | Reflectorless mode : Class 3R / Prism/sheet mode : Class 1 |
| Minimum Display | Fine / Coarse : 0.0001m (0.001ft. / 1/8 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) Coarse : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1 in.) (selectable) Tracking / Road : 0.01m (0.02ft. / 1 in.) |
| OS, Interface and Data management | |
| Operating system | Linux |
| Display / Keyboard | Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / Alphanumeric keyboard / 28 keys with backlight |
| Control panel location | On both faces |
| Interface | Serial RS-232C, USB2.0 (Type A for USB flash memory) |
| General | |
| Laser-pointer | Coaxial red laser using EDM beam |
| Dust and water protection / Operating temperature | IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF) |
| Size with handle | 183(W)x 181(D)x 348(H)mm (On both faces) |
| Instrument height | 192.5mm from tribrach mounting surface |
| Weight with battery & tribrach | Approx. 5.1kg (11.3lb) |
| Power supply | |
| Battery | Li-ion rechargeable battery BDC46C |
| Operating time (20ºC) | Approx. 14hours |
| Application program | |
| On board |
•REM Measurement •3D Coordinate Measurement •Resection •Stake Out •Topography Observation •Offset Measurement •Missing Line Measurement •Surface Area Calculation •Route Surveying •Point to Line |
