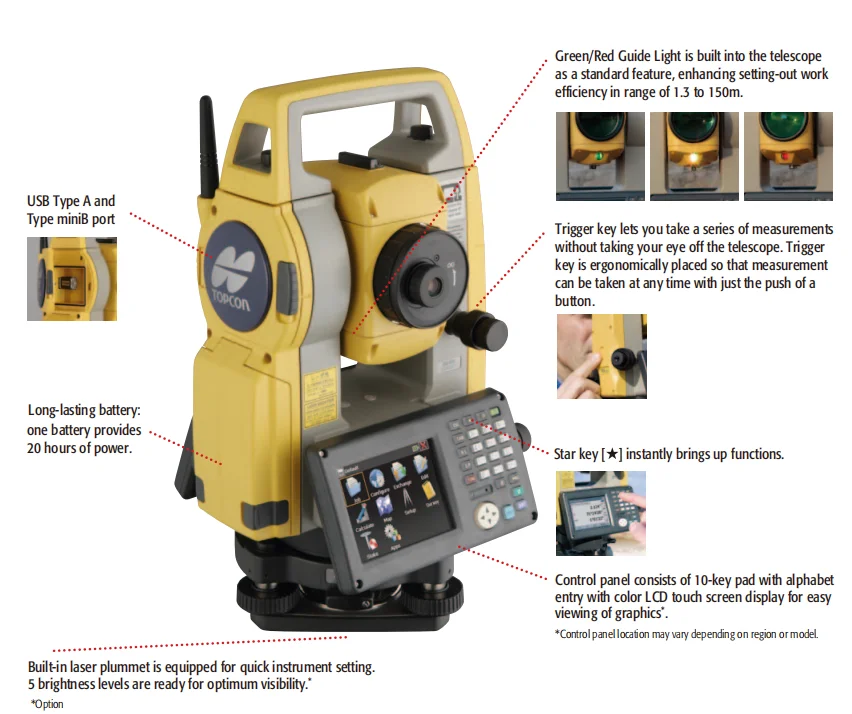

Highly functional total station with outstanding operability
- Windows® CE is ready in a lightweight,compact body
- MAGNETTM Field On-Board Application Software
- Fast and Powerful Reflectorless EDM
- LongLink Data Communication
- Advanced Angle Measurement System
- Long-lasting battery
- Rugged and User-friendly Design
*Option
| SPECIFICATIONS | ||
| Model | OS-105 | |
| Telescope | ||
| Magnification/ Resolving power | 30x/2.5″ | |
| Others | Length: 171mm (6.7in.), Objedive aperture: 45mm (1 .8in.)(48mm(1 .9in.) for EDM), lmage: Erect, Field ofview: 1°30'(26m/1,000m), Minimum focus: 13m (4.3ft), Reticle illumination: 5 brightness levels | |
| Anfle measurement | ||
| Display resolution | 1"/ 5" (0.0002/0.001gon, 0.005 /0.02mil) |
|
| Accuracy(ISO 17123-3:2001) | 5″ | |
|
Dual-axis compensator/Collimation compensation |
Dual-axis liquid tilt sensor, working range: +6’(±111mgon)/Collimation compensation available | |
| Distance measurement | ||
| Laser output *1 | Reflectorless mode: Class 3R/ Prism/sheet mode: Class 1 | |
| Measuring range (under average conditions*2) |
Reflectorless*3 | 0.3 to 500m(1.0 to 1,640ft.) |
| Reflective sheet*4*5 | RS90N-K: 13 to 500m(43 to 1,640ft),RS50N-K: 1.3 to 300m (4.3 to 980ft.),RS10N-K: 1.3 to 100m (4.3 to 320ft.) | |
| Mini prism | 1.3 to 500m (1,640ft.) | |
| One prism | 13 to 4,000m (43 to 13,120ft,)/Under good condiions *6: 13 to 5,000m (16,400ft.) | |
| Three prisms | to 5,000m(16,400ft)/Under good conditions *6: to 6,000m (19,680ft.) | |
| OS, interface and Data management | ||
| Operating system / Application | Microsoft Windows® CE 6.0 / MAGNET Field |
|
| Display / Keyboard | 3.5inch, Semi-transmissive TFT QVGA color LCD with LED backlight,Touch screen, Automatic brightness control / 26 keys with backlight | |
| Trigger key | On right instrument support | |
| Data storage | Internal memory | 500MB intemal memory (includes memory for program files) |
| Plug-in memory device | USB flash memory (max. 8GB) | |
| Power supply | ||
| Battery | BDC70 detachable battery | Li-ion rechargeable battery |
| Operating time (20°C) |
BDC70 | Approx 20hours (single distance measurement every 30 seconds) |
| External battery (option)* | BT-730: approx. 49hours (ingle distance measurement every 30 seconds) | |
