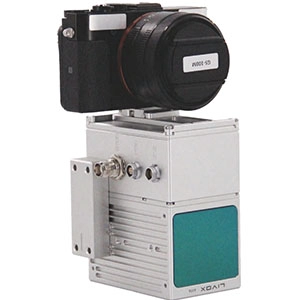

UAV LiDAR Scanning System LD-100M+
- Place of Origin:China
- Brand Name: PJK
- Certification:CE, ISO
- Model Number:LD-100M+ Mobile LiDAR Scanning System
LD-100M+
UAV LiDAR Scanning System LD-100M+
Color Point Cloud with Highly Integrated Camera
|
System Parameter
|
| Accuracy ≤10cm@110m | Dimension 15.5*9.2*9.3cm |
| Weight 1036g | Storage 64 GB Maxsupport 128GB TF card |
| Working Temperature -20°~＋55° | Carrying Platform Multi Rotor/VTOL |
|
Laser Unit
|
|
Measuring Range 190m@10% |
FOV 70°the cirular view |
|
Laser Class 905nm Class1 (IEC 60825-1:2014) |
Range Accuracy (1σ @ 20m) 2 cm |
|
Laser Line Number Equivalent to 64-beam |
Data Triple echo,720,000 Points/Sec |
|
|
Update Frequency 200HZ |
Position Accuracy ≤0.05m |
|
Pitch /Roll Accuracy 0.015° |
GNSS SignalType GPS L1/L2/L5,GLONASS L1/L2 BDS B1/B2/B3,GAL E1/E5a/E5b |
|
Heading Accuracy 0.040° |
|
Pre-Processing Software
|
|
POS（Trajectory） Software Shuttle |
PointCoudSoftware gAirHawk |
|
Camera (optional)
|
|||||
|
|||||
|
|
Flight Height (m) Accuracy Single Flight Operation(km²) |
| 50 ≤5cm 0.08 |
|
70 ≤7cm 1.28 |
|
100 ≤10cm 1.92 |
|
Mission Planning Software (optional)
|
|
Mission Planning Software Customized Rute Planning Software — WayPoint Master |
|
Application
|
 |
Model:LD-100C Flightspeed: 10m / s Flight altitude: 80m Application: Urban Construction Project location:Malaysia |
|||
 |
||||
 |
 |
 |
||
