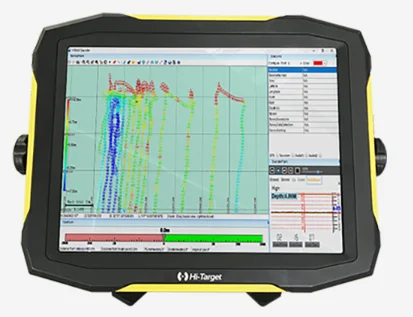

HD-Lite
The Compact Single Beam Echosounder
HD-Lite is a rugged and compact PC built-in professional portable echosounder. Boosted by an upgraded sounder platform and enhanced hardware, HD-Lite provides users with a portable solution with accuracy and credibility.
KEY FEATURES
Professional Sonar System
With a smarter algorithm and optimized internal circuit design, the sounder adapts to most environments with better echo quality and accuracy.
Hi-MAX Collection & PP Software
Professional bathymetric data collection and post-processing software is easy to learn and master, with innovated functions which boost the efficiency.
15’’ Display Built-in PC
The 32G SSD storage-based windows 7 OS boosted by dual-core 1.92GHz CPU, smoothly runs programs for versatile applications related to hydrographic surveying.
Compatibility & Extendability
Compatible with 3rd party software and 3rd party GNSS receivers.
|
Measurement
|
|
|
Frequency
|
200kHz
|
|
Range
|
0.15m to 200m
|
|
Accuracy
|
0.01m±0.1%
|
|
Draft
|
0m to 15m
|
|
Beam Angle
|
5°
|
|
Sound Velocity
|
1370m/s to 1700m/s
|
|
Sound Resolution
|
1m/s
|
|
Ping Rate
|
Max 30Hz
|
|
Output Data Format
|
NMEA DBT, NMEA DBS, DESO 25, ODOM, Hi-Target
|
|
Weight
|
5.8 kg
|
|
Dimension
|
L 44mm x W 32mm x H 110mm
|
|
Software
|
Hi-Max Sounder
|
|
Hardware Part
|
|
|
CPU
|
1.92 GHz, 2 Core
|
|
RAM
|
2GB
|
|
Storage
|
32GB ( Max 80GB )
|
|
Screen Size
|
15 inch
|
|
Interface
|
3*USB 2.0, 3*RS232, 1 Bluetooth, 1 VGA
|
|
Temperature
|
-10℃ to 55 ℃
|
|
Power
|
10V to 30V or 220V AC
|
