SINGLE-BEAM ECHO SOUNDER FOR BATHYMETRIC SURVEY

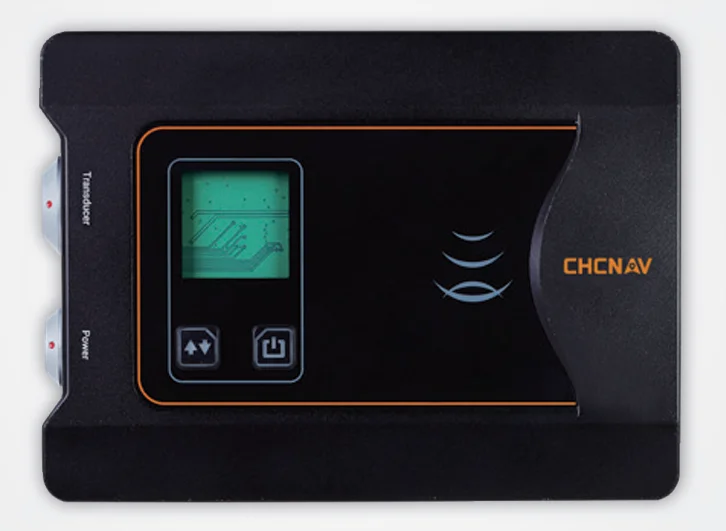

The CHCNAV D270 is a portable single beam echo sounder. Its water temperature sensors allow real-time correction of sound velocity based on water temperature, resulting in even more accurate water depth measurement. The echo sounder can be used for river section measurement, reservoir capacity measurement and dredging volume measurement of waterways. The two frequencies of 200 KHz and 25 Khz can be switched according to the water quality, in order to optimize accuracy and adapt to the measurement environment. The D270 features an easy and intuitive configuration and map display web page through a simple connection to a smartphone.
SPECIFICATIONS
| Measurement Parameters | |
| Frequency | 200 kHz / 25 kHz |
| Beam Width |
6.5° ± 1° (200 kHz) 28° ± 1° (25 kHz) |
| Depth Range | 0.15 m to 300 m |
| Resolution | 0.01 m |
| Accuracy | ± 0.01 m + 0.1% x D (D = water depth) |
| Maximum sample rate | 30 Hz |
| Sound velocity adjustment range | 1300 m/s to 1700 m/s |
| Electrical | |
| Maximum transmit power | 300 W |
| Power consumption | 10 W |
| External power | 10-36 V DC / 100-240 V AC |
| Communication | |
| Operating system | Linux |
| Web page | Support PC/Mobile web pages |
| Ports | RS232 / Network port / Transducer port |
| WiFi | 802.11 n - 2.4 G |
| Bluetooth | BT5.0, compatible with BT2.X |
| Data format | CHCNAV, NAME SDDPT/SDDBT, Original waveform |
| Storage | 8 GB, support host to store water depth data |
| Voice prompt | Support shallow water tips |
| Water temperature sensor | -55°C~+125°C, correct in real time |
| Physical | |
| Size (L x W x H) | 25.7 cm × 12 cm × 6.4 cm (transducer) |
| Weight |
0.84 kg (host) 2.15 kg (transducer) |
| Environmental |
Operating temperature: -20°C~+60°C (-4°F~+140°F) Storage temperature: -40°C~+70°C (-40°F~+158°F) |
| IP Rating | IP67 |
| Material | Aluminum Alloy |
