Hi target Dual Frequency Digital Echo Sounder
- Weight:9.5 kg(20lbs)
- Dimensions:480mm(18.8in)H×360mm(14.1in)W×110mm(4.3in)D
- Material of Shell:High strength ASA

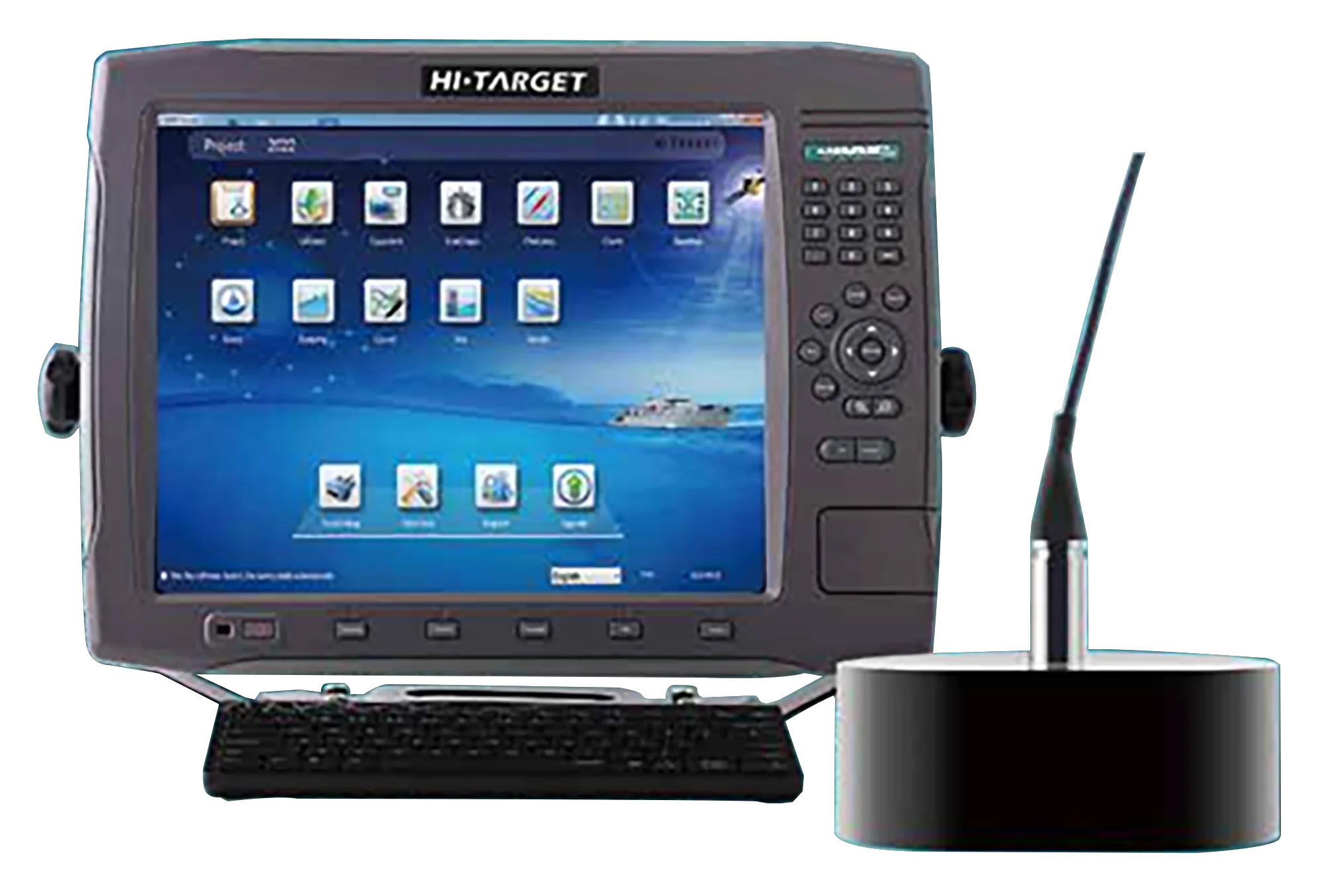

| Hi target Dual Frequency Digital Echo Sounder |
| HD-MAX Hydrographic Solution |
HD-MAX dual-frequency echo sounder is universal in sediment measurement for dredging and other water depth measurement projects in shallow water, deep water and sandy water. The full-featured Hi-MAX Sounder hydrographic software integrates bathymetry, navigation, and post-processing. Equipped with the 17’’ large screen and industrial computer platform, HD-MAX offers a set of reliable solution for hydrographic offices around the world along with a robust dual-frequency transducer and a user-friendly survey pole.
| The Combination of High and Low Frequency |
HD-MAX features the simultaneous operation of both high and low frequencies at the same time, making it superior in both shallow and deep water.
| The Full-Featured Hi-MAX Sounder Software |
The powerful Hi-MAX Sounder displays, processes, and exports dual frequency data, supporting access to standard NMEA data from any receiver to provide accurate GNSS coordinates for the bathymetry data.
| Rugged Industrial Platform |
HD-MAX is designed with an enhanced computer platform, and has excellent performance in terms of stability and anti-interference, and compliant with EN 60945. 3 RS-232, 4 USB ports and 1 VGA to meet data transfer needs.
| Digitized Results Correction with Echogram Overlaying |
Correct the faulty digitized results based on the overlaid echogram to ensure the reliability of depth result especially in complex scenario.
| Product Parameters |
|
Frequency
|
High: 200kHz
Low: 24kHz
|
|
Maximum Transmitting Power
|
400W@200kHz
1200W@24kHz
|
|
Depth Range
|
0.15~300m/1.0~900 ft.@200kHz
0.8~2000m/2.4~6000 ft.@24kHz
|
|
Accuracy
|
0.01m/0.1 ft. +/- 0.1% of depth @200kHz
0.10m/0.30 ft. +/- 0.1% of depth @24kHz
|
|
Resolution
|
0.01m/0.10 ft @200kHz
0.10m/0.30 ft @24kHz
|
|
Sound Velocity
|
1370~1700m/s
|
|
Ping Rate
|
Maximum 30Hz
|
|
Output Data Format
|
Standard NMEA 0183, DESO 25, ODOM, Knudsen, Bathy, Echotrac, Hi-Target
|
|
Screen
|
17inches；Resolution：1280 x 1024@60Hz
|
|
CPU
|
1.92GHz，Quad-core（windows 7）
|
|
RAM
|
2GB
|
|
Storage
|
128GB SSD
|
|
Interfaces
|
RS-232*3, USB*4, Power Port*1,Transducer Port*1, VGA*1
|
|
Input Power
|
10~30 VDC or 220 VAC
|
|
Consumption
|
80 watts
|
|
Operating Temperature
|
-20℃～70℃
|
|
Certification
|
CE, EN 60945
|
Tel:+8615899753550
Wechat:pjk2018666
Contact Person:Linda Lin
PDF Show:PDF
