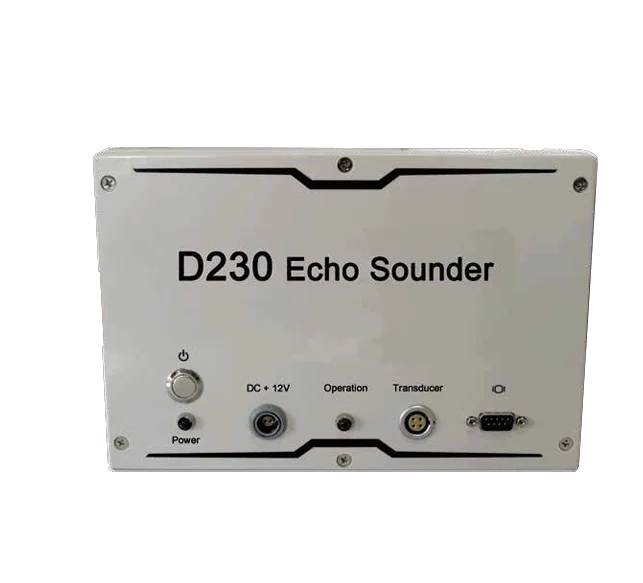

The D230 is a single beam echo sounder making hydrographic surveying simpler and more productive. Particularly design for shallow water bathymetric survey, the D230 features and sounding accuracy of ± 0.01 m + 0.1% x D and a detection range 0.15 m to 200 m.
Advanced water depth analysis algorithm filters the secondary echo automatically and professional depth-keeping configuration ensures accurate results by eliminating noise interference. The gain, power and range are also adjusted automatically.
Affordable and professional for any bathymetric survey in shallow water
- 200 KHz transducer for shallow water surveying
- Compact and portable with consistent and accurate results
- Easy to connect with your computer and GNSS receiver
- Anti-interference technology automatically filters second echo
- Software controlled with automatic parameter adjustments
SPECIFICATIONS
| Measurement Parameters | |
| Detection Range | 0.15 m to 200 m |
| Resolution | 0.01 m |
| Accuracy | ± 0.01 m + 0.1% x D (D = water depth) |
| Frequency | 200 KHz |
|
Sound Velocity Adjustment Range |
1300 m/s to 1700 m/s |
| Beam Angle | 6.5 ° ± 1° |
| Data Type | CHCNAV, NAME SDDPT/SDDBT, Original waveform |
| Physical | |
| Size (L x W x H) |
24 cm 16 cm 6.5 cm (host) 25.7 cm 12cm 6.4 cm (transducer) |
| Weight |
1.1 kg (host) 2.15 kg (transducer) |
| Pulse Power | 300 W |
| External Power | 10 - 30 VDC |
| Operating Temperature | -30 C to +60 C (-22 F to +140 F) |
