FlyCart 200

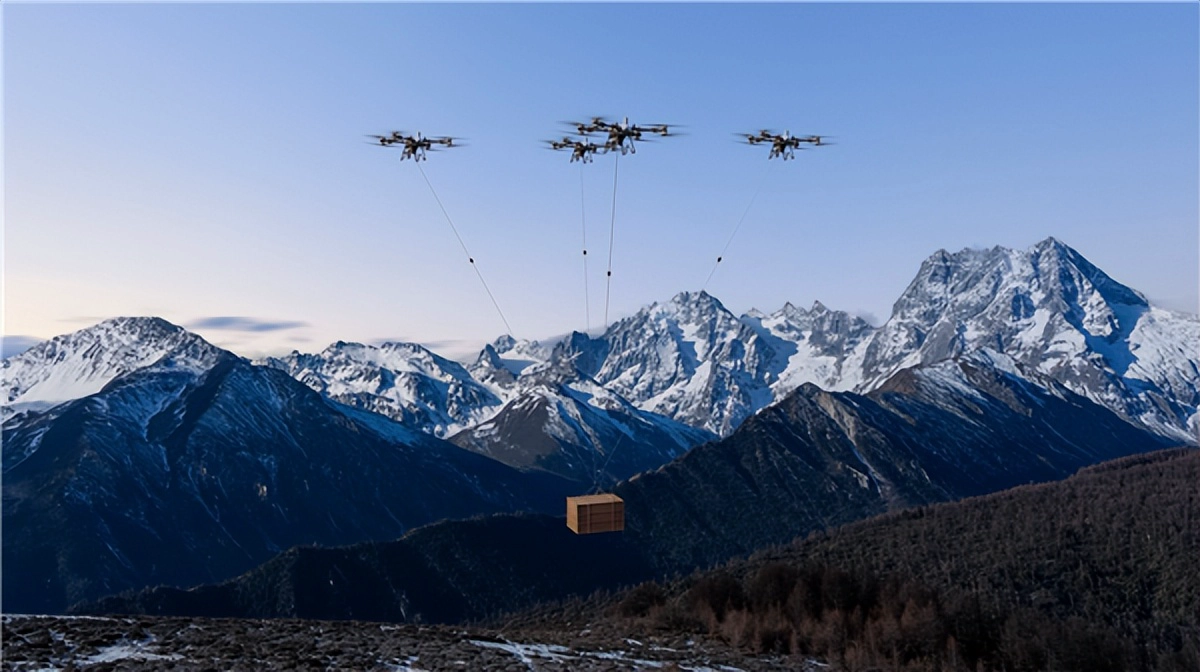

As a new generation of heavy-duty flagship, the FC200 has achieved a leapfrog breakthrough in carrying capacity. The maximum load of a single unit is 200kg, two units working together can reach 360kg, and four units working together intelligently can lift up to 600kg, meeting the needs of transporting large and bulky goods.

It adopts a 6-axis, 12-propeller coaxial twin rotor and a 120V high-voltage power platform, with a maximum single-axis thrust of 183kg and a 10% increase in power efficiency.




With robust high-altitude performance, it can maintain a full load without reduction at an altitude of 3,000 meters and still carry 140 kg at a plateau of 6,000 meters. It is compatible with a wide temperature range of -25to 45, supports IP56 protection, and can withstand strong winds of up to level 8. It can easily handle transportation in complex terrains such as mountains, plateaus, and remote areas.

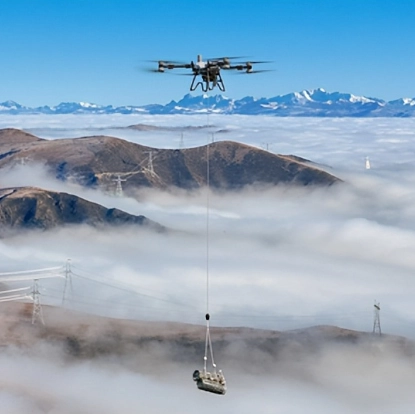

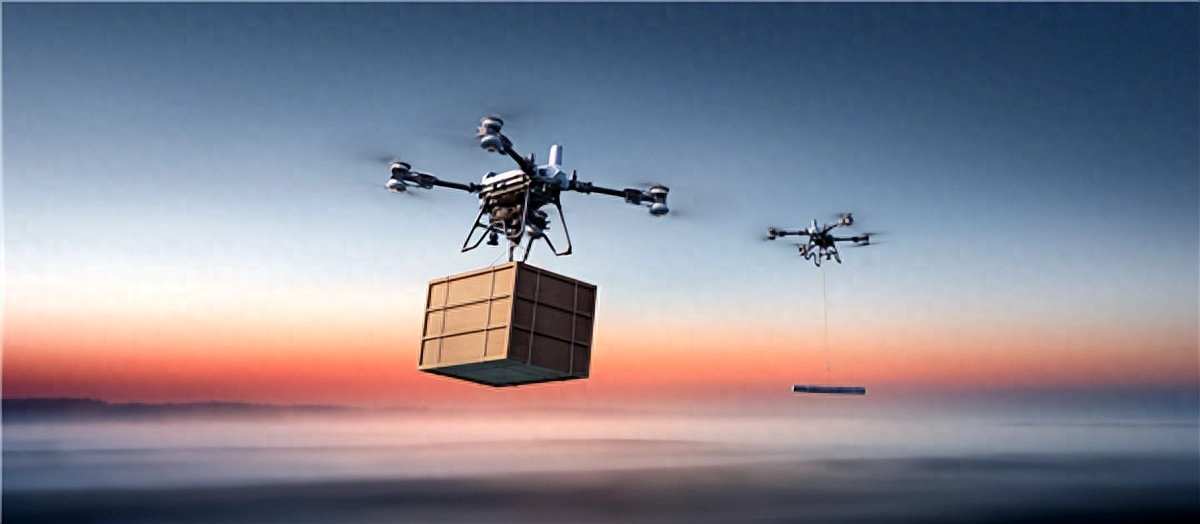

Supports both standard cargo box and empty crane lifting modes. The 120L waterproof cargo box supports automatic loading and unloading. The empty crane system has a maximum lifting capacity of 200kg and a maximum rope length of 30 meters. It features automatic anti-sway and emergency rope release functions, covering all scenarios including logistics, infrastructure construction, rescue, and power construction.

In terms of battery life, the dual-battery mode provides 16-18 minutes of full-load battery life, while the quad-battery mode extends this to 32 minutes. It is equipped with a 46Ah smart battery that can be quickly recharged in 7-8 minutes and supports hot-swapping, significantly improving work efficiency.

Equipped with 11 sensors including a 256-line LiDAR, millimeter-wave radar, and five-lens vision system, it enables omnidirectional obstacle avoidance. Eight antennas support O4 enhanced image transmission, achieving a maximum transmission range of 40 kilometers. Combined with Sub-2G and dual-SIM 4G relay, it ensures stable and uninterrupted signal connection.

The T200 agricultural drone, released at the same time, is tailor-made for agricultural, forestry, animal husbandry and fishery scenarios. It also has a maximum payload of 200kg and can efficiently complete tasks such as agricultural material transportation, agricultural product transfer, forest plant protection and field supply. Equipped with a dedicated hoisting system, it is suitable for agricultural field operation environment. With an efficient charging solution, it makes agricultural transportation more worry-free and economical.

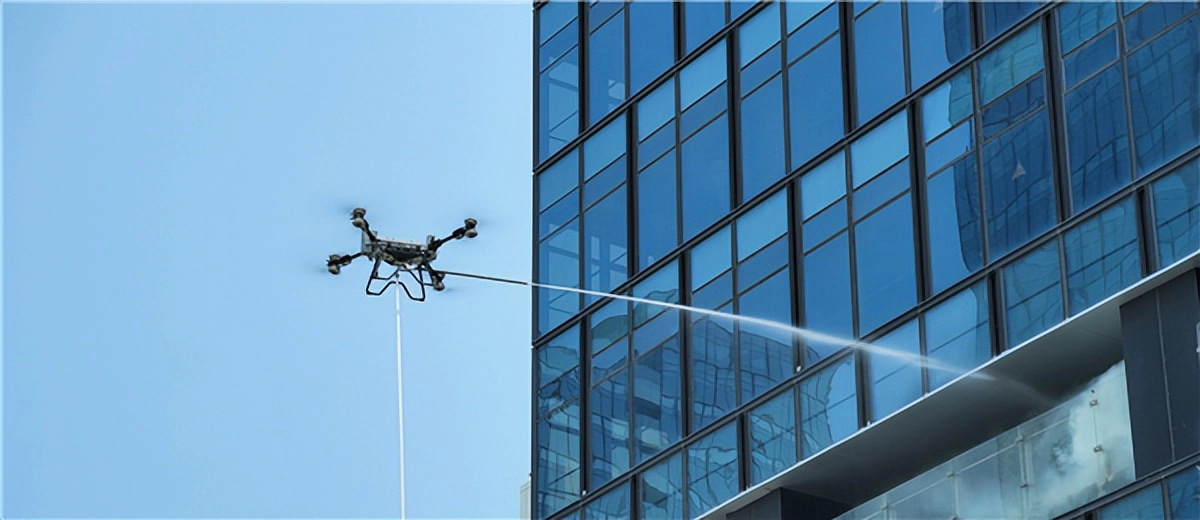

At the software and ecosystem level, DJI has simultaneously upgraded its Driver Cloud Platform and Delivery Operation System, and launched a brand-new mobile delivery service app, enabling multi-terminal collaboration, intelligent management, and data interoperability, making transportation scheduling, operation statistics, and team management more efficient. The FC200 also supports a wide range of mount expansions, and can be paired with lighting, imaging, and other equipment to meet special needs such as nighttime operations and emergency search and rescue.
