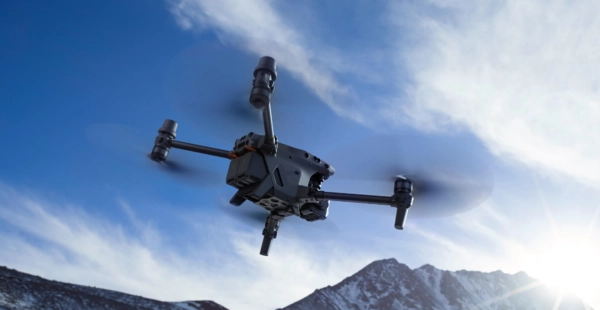

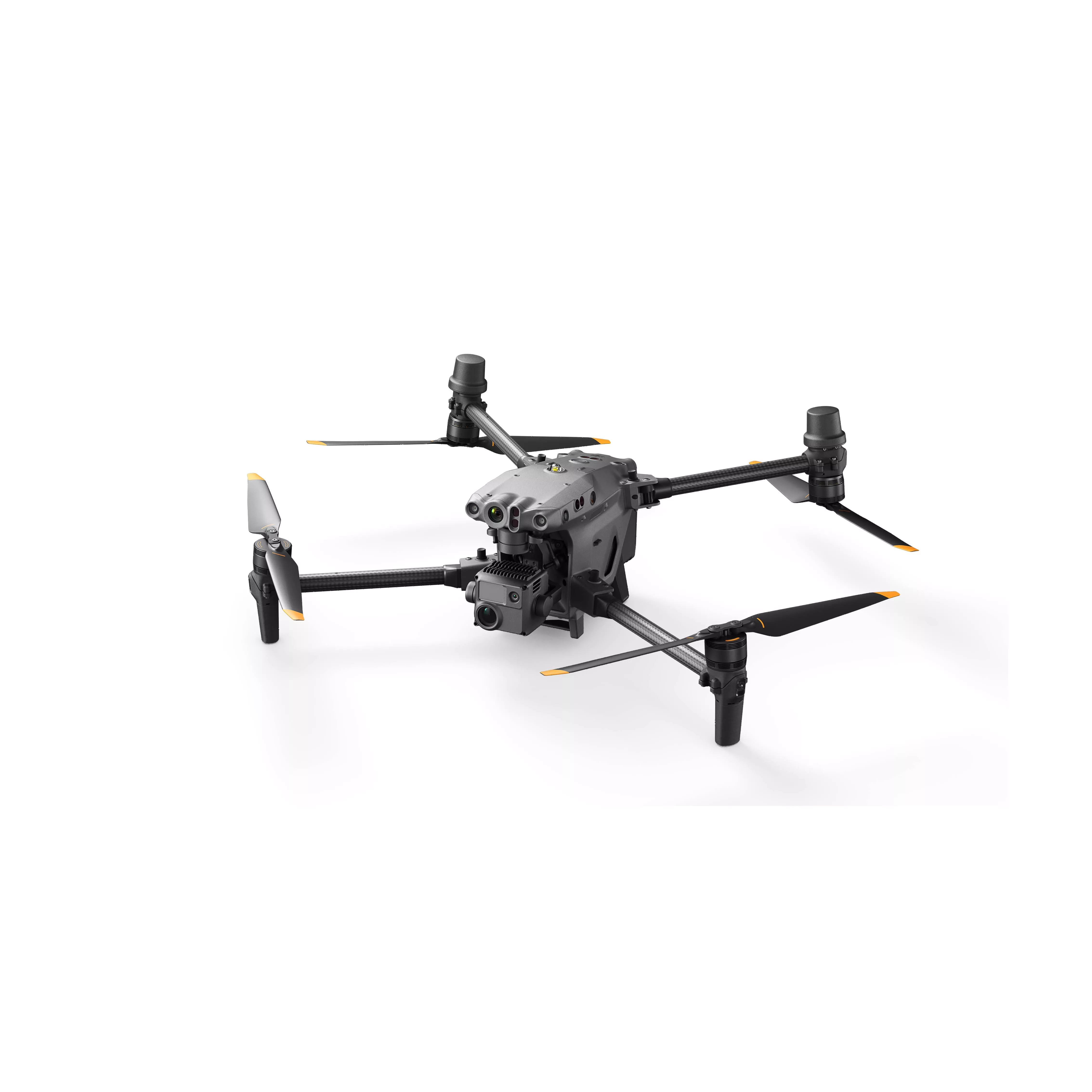

In terms of payload, the Matrice M30 series integrates a 16x optical zoom camera, a wide-angle camera, an infrared camera (M30T), and a laser rangefinder. These sensors work in tandem, allowing pilots to easily monitor the operational site regardless of target distance or day/night conditions. The Matrice M30 series wide-angle camera has a resolution of 12 megapixels, an equivalent focal length of 24mm, and a video resolution of 4K/30fps. The zoom camera has 48 megapixels and supports 5x-16x optical zoom, with a maximum of 200x hybrid zoom. The thermal imaging camera has a resolution of 640*512 30Hz and a temperature measurement accuracy of ±2°C or ±2%. The laser rangefinder has a measurement range of 3-1200 meters.

When operating at night, the Matrice M30 series can clearly distinguish the sky and obstacles such as mountains and trees, making operations safer with intelligent navigation. Furthermore, the zoom camera has a wide dynamic range, allowing for clear photos even in low-light conditions.

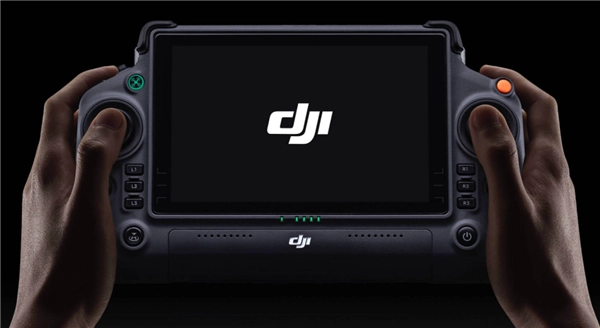

The Matrice M30 series comes standard with the DJI RC Plus remote controller, designed specifically for industry users. It features a 7-inch high-brightness screen. The controller uses the O3 image transmission technology, allowing simultaneous operation with 4G network image transmission. The controller is IP54 rated for protection, has a hot-swappable external battery, and is waterproof and heat-resistant.

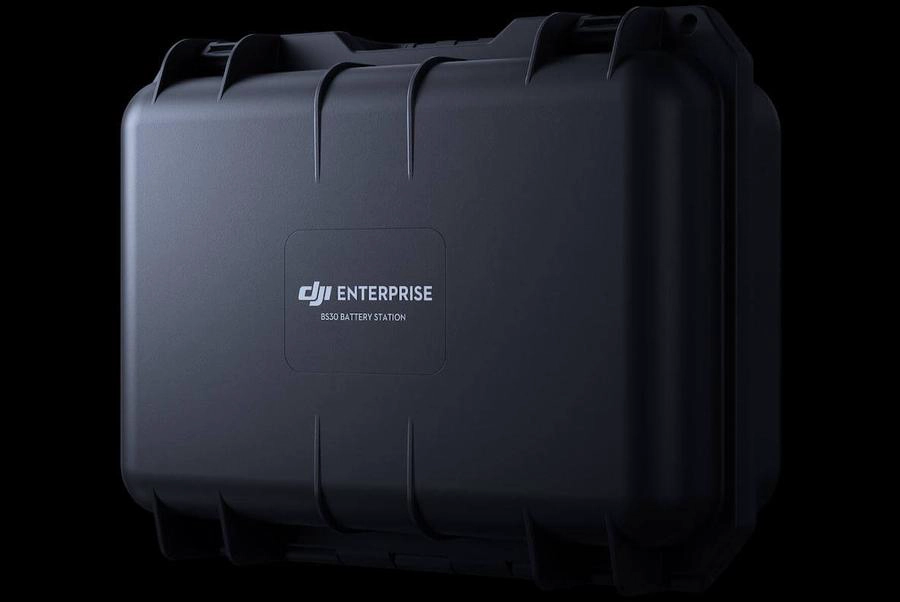

BS60 Battery Box

The battery box is portable and easy to use. It can charge up to 4 flight batteries and 2 remote controller batteries at a time, and can charge a battery pack from 20% to 90% in half an hour, enabling seamless rotation operations. The battery box also supports standby and storage modes.

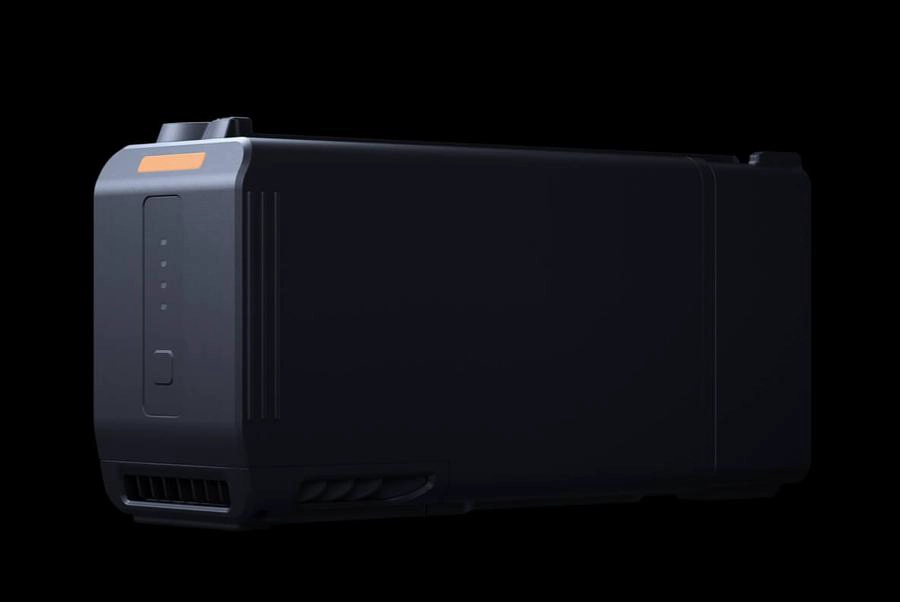

TB30 Smart Battery

The TB30 smart battery supports self-heating and up to 400 charge-discharge cycles. It supports hot battery replacement, saving time in critical missions and ensuring smooth flight operations.

The DJI Cellular module provides 4G network image transmission between the drone and the remote controller, and can also provide mobile network access for the remote controller.
