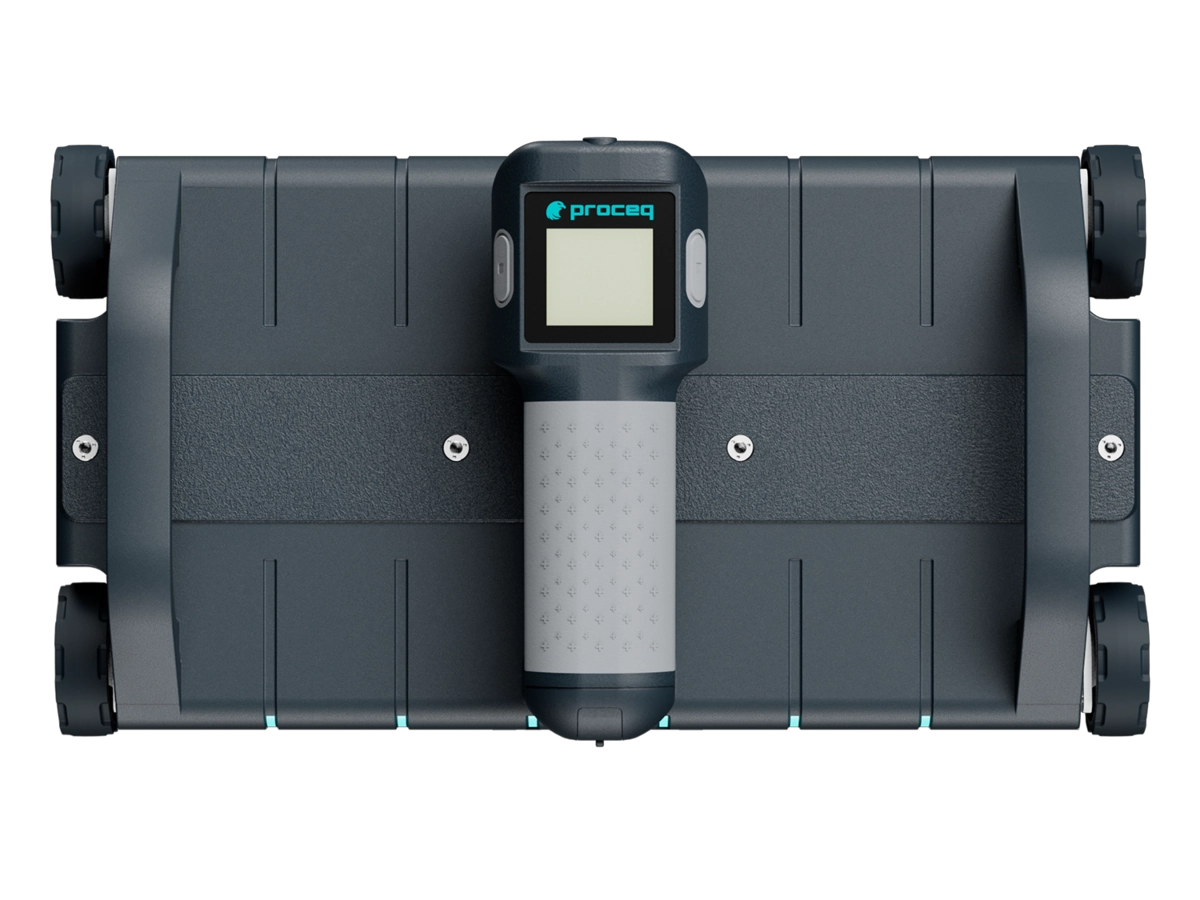

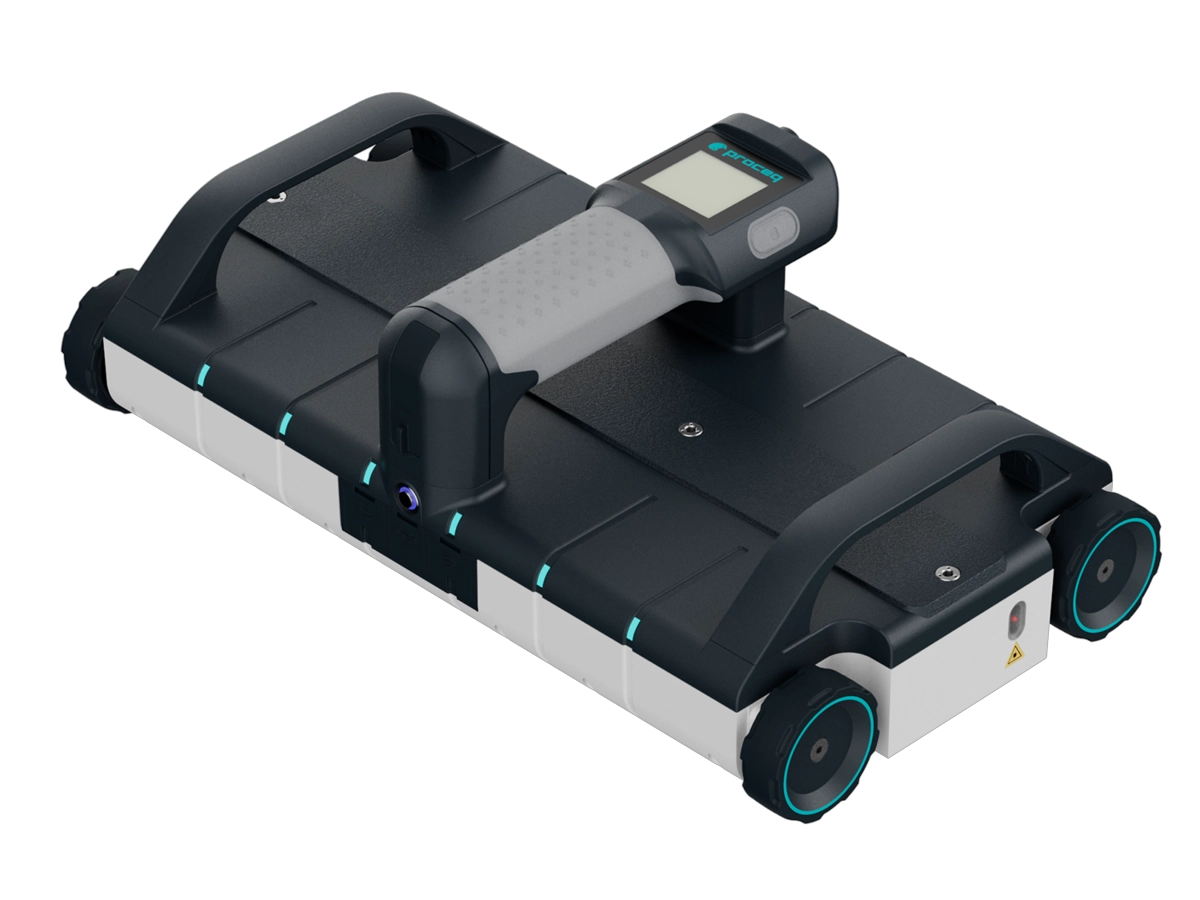

Advanced Concrete Analysis with Proceq BP8100
- Modulation frequency range: 400-4000 MHz
- Penetration depth: 80 cm/31.5 inches
- Battery: Flight Safety, Removable Pack, 8x AA (NIMH)
- Dimensions: 41.5 x 22.5 x 13.2 cm
- Weight: 3.0 kg (excluding battery pack)
|
Very productive and large-scale multi-scan. proceq underground radar |
|
 |
GP8100Productive portable concrete GPR arrays allow for rapid object detection and excellent data collection♦ Wide scan width, high scan speed, class penetration depth is optimal ♦ Fast detection of objects of any size in the Super Line Scan View ♦ Collect high density and accurate GPR data with one superline scan
application: ♦ Extensive concrete inspection of all buildings or bridge slabs ♦ Detection and damage prevention of objects before excavation, excavation, and cutting into concrete ♦ GPR data collection for concrete structure evaluation and post-processing data. ♦ Specific quality evaluation |

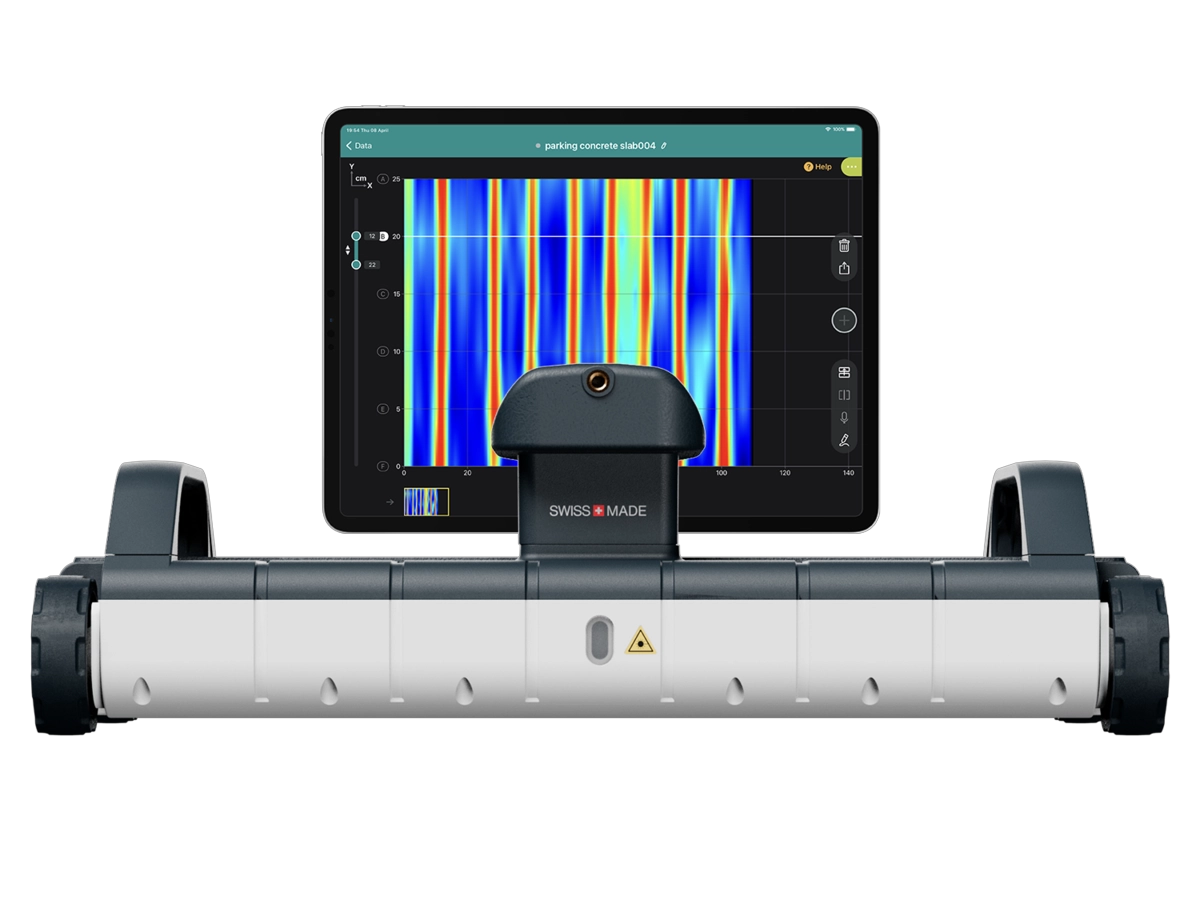

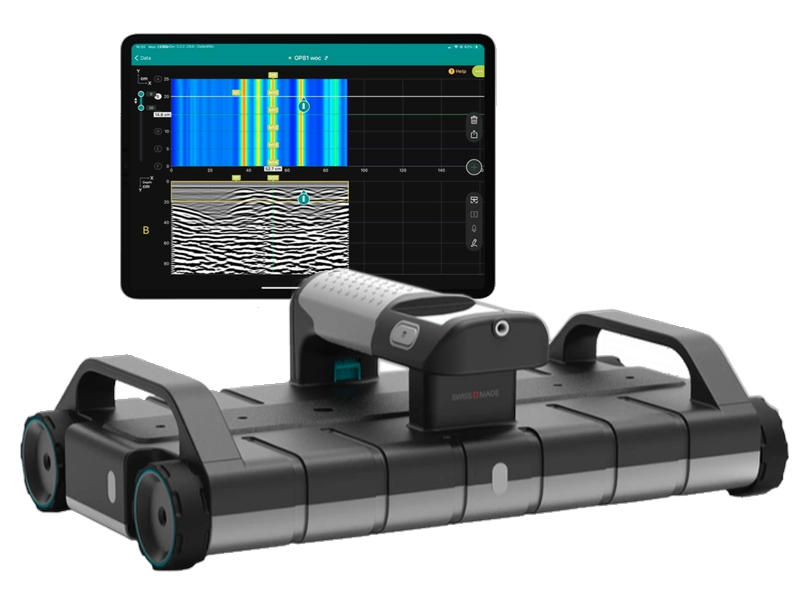

| An innovative portable concrete GPR array with unprecedented data clarity |
 |
 |
 |
||
| Productivity | Visualization | density | ||
| Effective scan widths of 25cm and 80cm penetration depth improve scan efficiency, with one scan equivalent to six traditional line scans. | Super Line Scan View allows you to detect objects of any size and mark concrete surfaces easier and faster than ever. | The high scan speed of 1" 200 scans per second allows for extremely dense GPR data collection in one super line scan, visualized with six traditional line scans. |
| specification |
 |
musical instrument Technical specifications |
|
 |
proceq gpr app Technical specifications |
|
Radar Technology Step Frequency Continuous Wave (SFCW) GPR ———— Modulated frequency range 400-4000MHz ———— Intrusion depth 80cm/31.5inch ———— battery Flight Safety, Removable Pack, 8x AA (NIMH) ———— size 41.5 x 22.5 x 13.2cm ———— Weight 3.0 kg / 6.6 lbs (excluding battery pack) ———— Ground height 0.8cm / 0.32 inch ———— antenna 6 ————
Distance to the edge of the antenna 8.3cm/3.27inch ———— Special features All-wheel drive with high traction wheels and laser light guide ———— Connection Wi-Fi to display unit (802.11n) ———— Autonomy 3 hours (up to 8 hours with a commercially available 10"000mAh mobile battery, sold separately) ———— ———— ————
———— ———— ————
———— ———— |
Measurement mode Super Line Scan (1000m/3281ft) ———— Review Mode Super Line Scan¹ ———— Advanced visualization Time Slice View Pro ———— Report Workspace Integration ———— Export format JPG PNG CSV SEGY HTML ———— View specifications* We recommend the latest Apple® iPad ———— Display sensor* lidar scanner (optional) ———— |
|||
