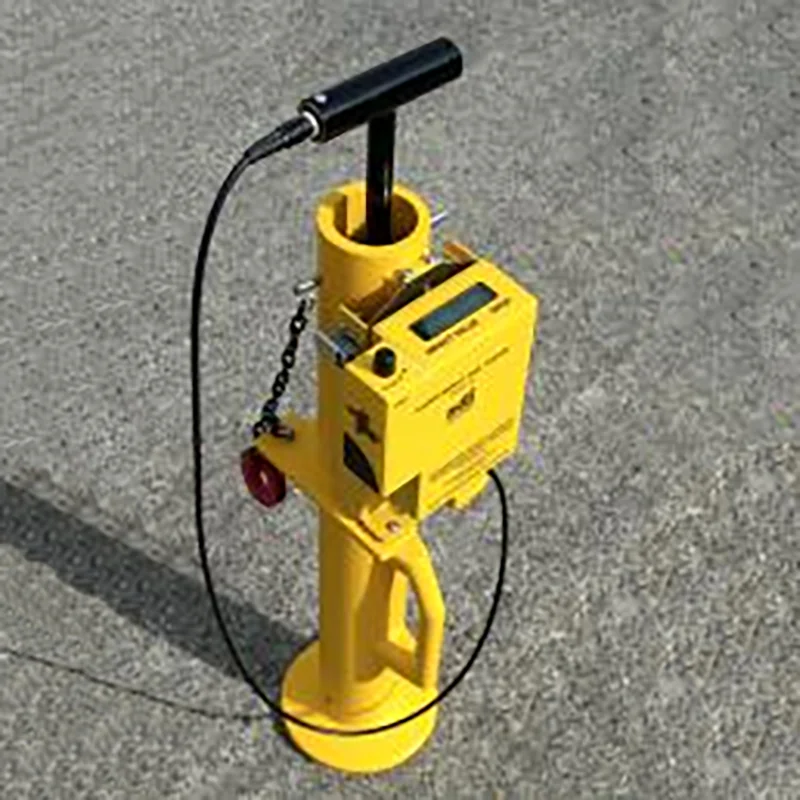

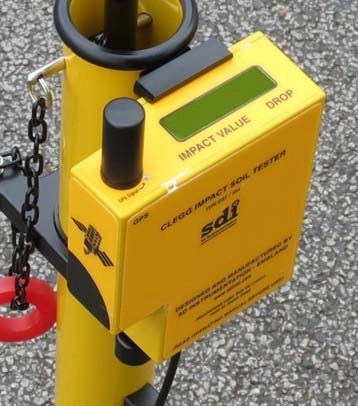

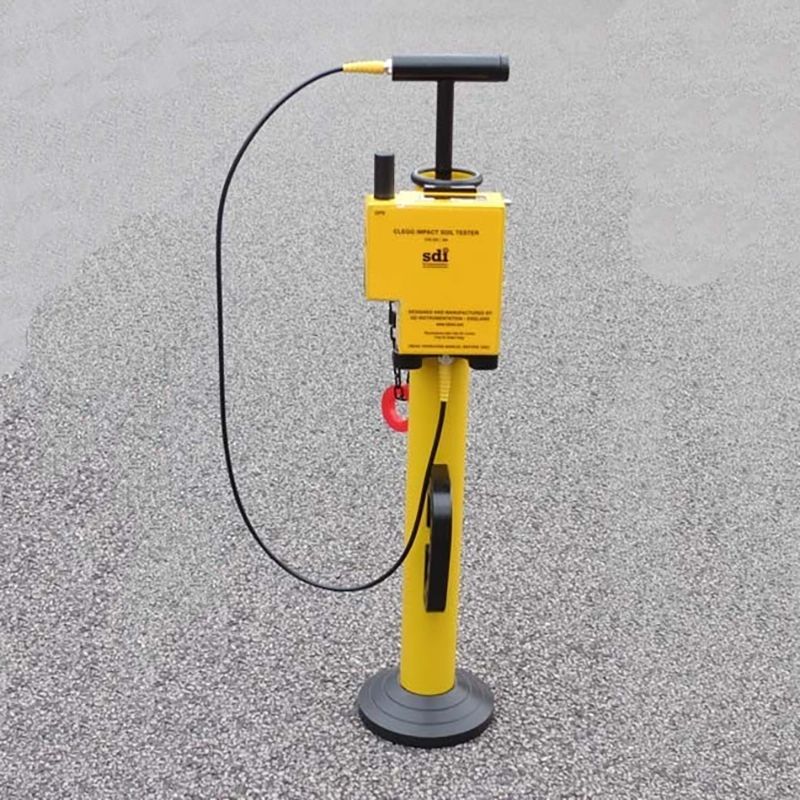

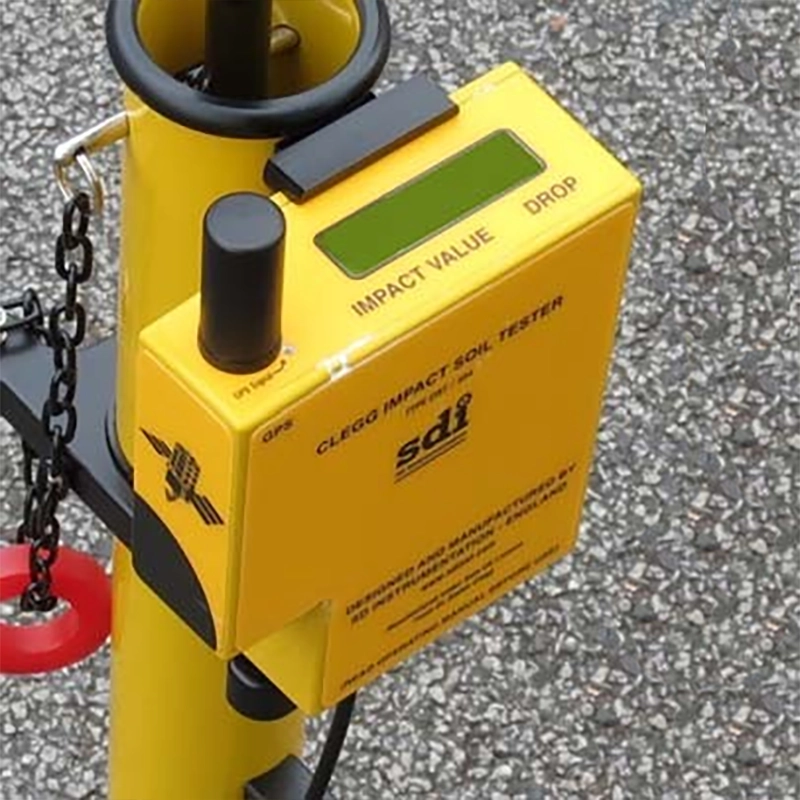

SDI Clegg Soil Hardness Tester Model CIST/884-4.5Kg

Data Logging Feature

On board data logging and data storage with wireless data transfer facilities are provided with the CIST/884 instrument. Latitude & Longitude coordinates of t he t est l ocation are received by the in-built GPS then stored providing users with an accurate location reference for later viewing in eg Google earth™. Users can download their site test results to a PC by Bluetooth, using the PC software supplied with the instrument.

Solid design

The CIST / 884 Clegg Soil Hardness Tester is very firmly designed for long-term use in wet, dirty and harsh conditions.

CIST / 884 reader are made of high strength alloy for decades.

The tester battery case is IP67 sealed and has two AA batteries that can last for 12 months. The CIST / 884 Clegg soil hardness tester is strong and reliable.

Specification and Ordering Code

Model	CIST/884/4.5K/Stor/Blu
Hammer Weight	4.5 Kg (For the arena: With a 2.25 Kg hammer and a 0.5 Kg Hammer)
Number range	It can display up to 101 IV
Power	Low power consumption: 3V, two C batteries. Service life of about 12 months.
Battery level	The opening part is indicated.
Open & Control	Single push button. Automatic off after 5 minutes of continuous display.
In-reader data store	Huge storage space, can store up to 10000 copies, each hammer fell 5 times the test results each value.
About the size and the weight	71 x 13 x 13 cm. Insrument weight 6.9kg. Box weight 12.2kg
