Soil tester CIST/884/Golf  SDI  Course Ground Harness Tester

Tools to monitor the surface hardness and properties in a golf course introduce

CIST / 884's Golf Course Tester, designed and produced by SDI, provides a simple and straightforward measure of intensity changes on the test course, determining the surface uniformity of an area.This device consists of a vertical catheter and two 0.5kg hammer probes operated alone in the catheter.We provide 1 golf ball size dome probe with a system, 1 flat top probe.During testing, after the probe is released, it falls freely into the catheter and hits the ground and then slows down. The deceleration rate is determined by the stiffness of the surface impact area of the golf course.The reader is clamped to the catheter, and the displayed reading can be seen at the top during use.Single-button operation design, simple to use.

Data recording performance

The instrument has wireless data transmission components and has airborne data recording and data storage functions.Users can use the computer software provided by the instrument to download the test results from the site to the computer by wireless.Wireless operation greatly improves the reliability of the system.

Surface test

The hardness of the sports field or golf lane is easy to measure, and the display and stored results are very useful for predicting the bounce and turnover of the ball during playing games.Changes in fairway hardness may be influenced by construction processes (e. g. compaction, stability), or environmental influences (e. g. changes in moisture content).It is determined by many factors, such as the compactness and stability of the surface in the construction process, such as humidity changes in environmental impacts, and specific uses in specific locations.The instrument provides a fast and accurate method for detecting hardness variables, and helps to determine the uniformity of a region.The simplest example of an application is to help identify soft surface points or hard surface areas.

Data recording performance The instrument has wireless data transmission components and has airborne data recording and data storage functions.Users can use the computer software provided by the instrument to download the test results from the site to the computer by wireless.Wireless operation greatly improves the reliability of the system.   Surface test The hardness of the sports field or golf lane is easy to measure, and the display and stored results are very useful for predicting the bounce and turnover of the ball during playing games.Changes in fairway hardness may be influenced by construction processes (e. g. compaction, stability), or environmental influences (e. g. changes in moisture content).It is determined by many factors, such as the compactness and stability of the surface in the construction process, such as humidity changes in environmental impacts, and specific uses in specific locations.The instrument provides a fast and accurate method for detecting hardness variables, and helps to determine the uniformity of a region.The simplest example of an application is to help identify soft surface points or hard surface areas.

Operation principle

This device consists of a pair of 0.5kg sensing probes.Both probes are shown on the right.The probe on the left is hemispherical and has the same diameter as the golf ball.The probe on the right is flat and 50mm in diameter.The equipment is equipped with two probes, suitable for different test requirements.When used, the used probe is placed in the catheter and pulled by the cable.When released, the probe falls in the catheter and hits the ground and then decelerates, with the deceleration rate determined by the stiffness of the material in the impact area.Hardness values were recorded in Gm.The Gm value is an indicator of soil hardness.

Strong design

The CIST / 88 Clegg Impact Soil Tester is very strong and suitable for continuous use in wet, dirty, and severe environments.The CIST / 884 reader consists of high-hardness alloys that have proved to last for decades.The instrument works with two AA batteries and usually has a battery life of up to a year.CIST / 88 Clegg Impact Soil Tester solid.The complete set includes a wooden transport storage box.

How to test

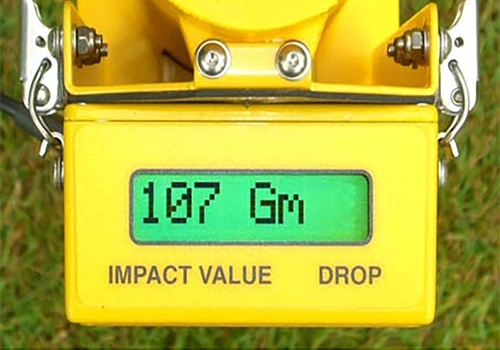

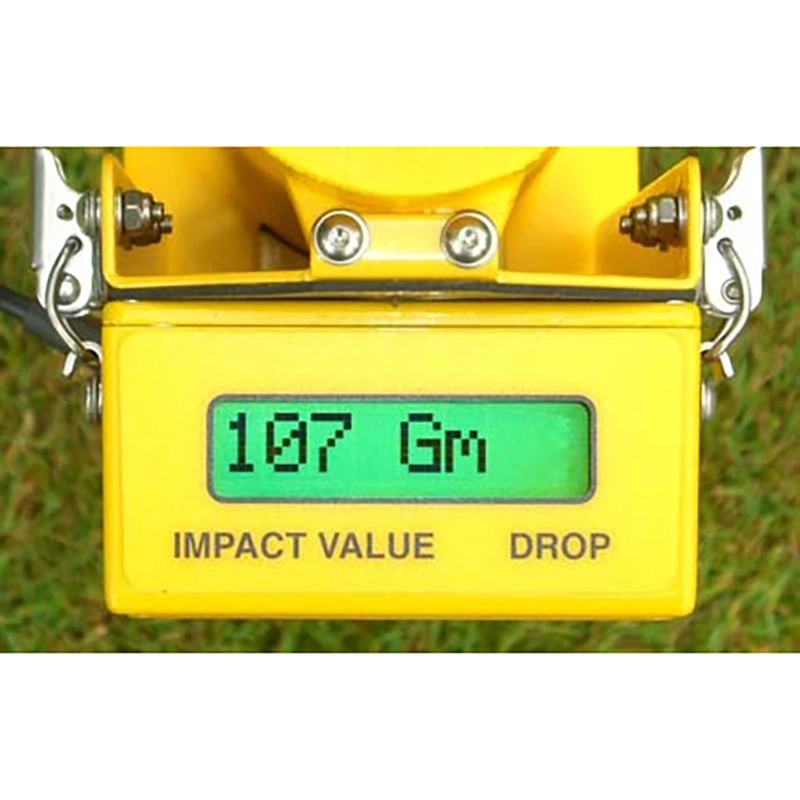

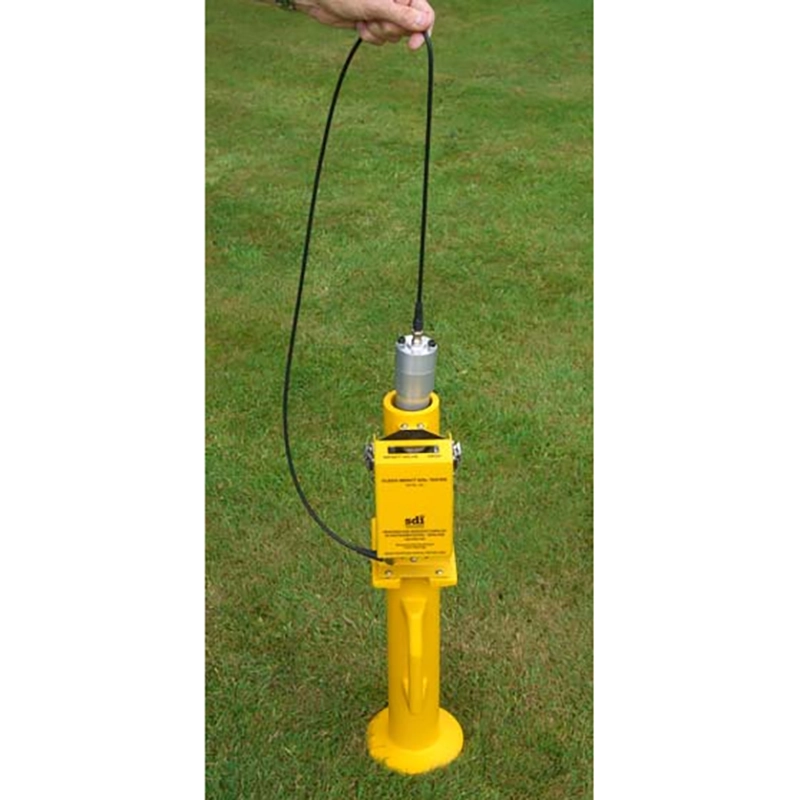

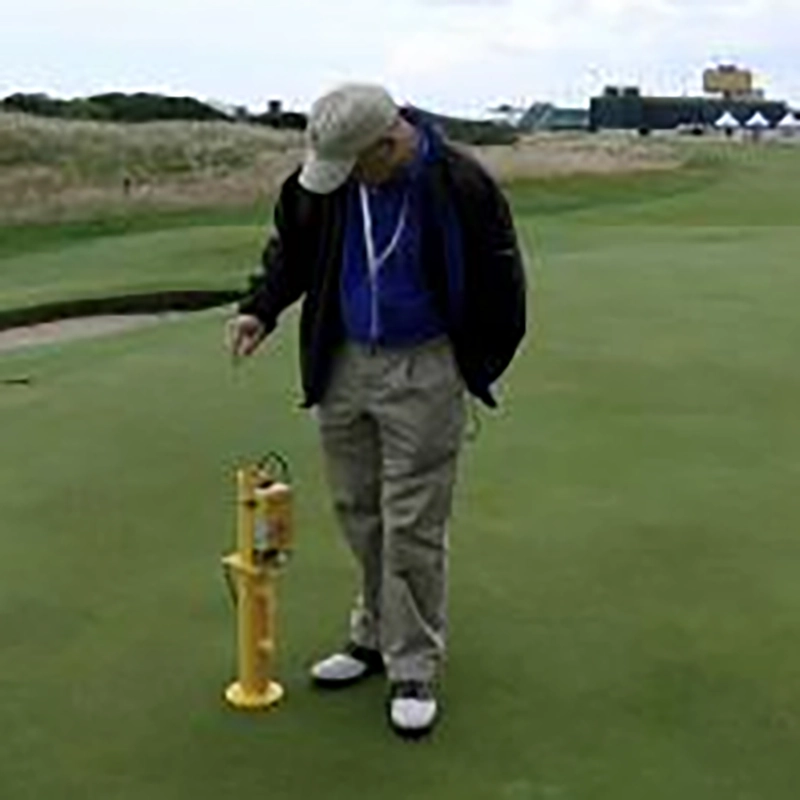

Performing a single test is very straightforward and fast.During testing, the catheter was placed vertically on the ground and the digital reader was mounted on the catheter without hand-holding, and it was very easy to read the data.The probe is pulled up from the cable to the top of the catheter and then falls freely.The final reading is recorded with units and displayed in the screen.Shown on the right is a test example, with 107Gm values shown in the read.

Test result

Surface stiffness or hardness is related to whether the ball can bounce and roll quickly. During the play season, due to the water change, the growth and wear of the lawn, we can easily monitor the stiffness change.Hardness changes due to moisture changes, grass growth, and surface wear (depending on the season) can also be easily monitored.Generally, a reading below 75 indicates a soft surface, and a reading of around 100 indicates that the surface is well controlled, perfect for excellent hitting and accurate play.The test data is recorded in the instrument and can be downloaded wirelessly to the computer via Bluetooth

Function:

1. Data record characteristics;

2. Bluetooth wireless data transmission.

3. With an integrated GPS system, GPS.
