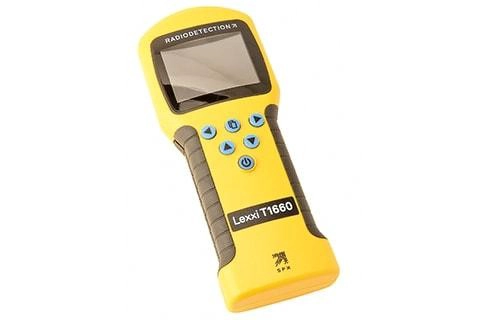

Radiodetection, Lexxi T1660, Time Domain Reflectometer

Browse Categories

Mechanical measurement device

PJK Brand Monitoring System

Optical Survey Instruments

RTK GNSS Systems

Pipeline Detector/ Locator & GPR

Unmanned Aerial Vehicle Payload

Thermal Camera

3D Laser Scanner

Wet Blast Machine

Measuring instrument Plainmeter

Weather Station Series

SDI Soil Tester

UAV/ Unmanned Aerial Vehicle

Module

Viscometer

Electric Hygro-thermograph

Spectrometer

Echo Sounder

Processing Software

Keson Measuring Tools

Features

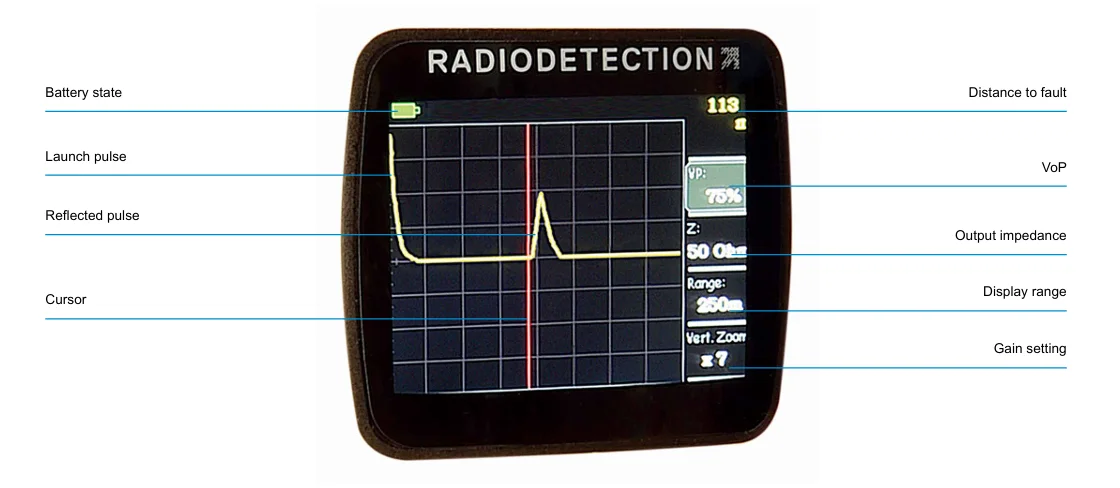

Large, color display
1% fault location accuracy
0.5m dead zone
6km, 19000’ maximum range
7m, 23’ minimum display range
11 range settings
Operates from Alkaline or NiMH rechargeable batteries
12 hours typical battery life time (alkaline)
User selectable Power Down time
Selectable cable impedance
VoP adjustable from 1% to 99%
100Ω Twisted Pair Alligator Clip cables included as standard
Optional modules, including Category IV mains Blocking Filter, for twisted pair, coaxial and power cable use make the Lexxi T1660 suitable for multiple industries and applications

Table of Specifications		Notes
Ranges	7, 15, 30, 60, 120, 250, 500, 1000, 2000, 3000, 6000 Meters 20, 50, 100, 200, 400, 800, 1600, 3200, 9400, 10000, 20000	Meters Feet
Range Selection	Manual range control
Accuracy	1% of selected range*
Display	328x256 pixel 3.5” color backlit LCD
Resolution	Approx 1% of range
Velocity Factor, VoP	Adjustable from 1% to 99%
Output Pulse	5V peak to peak	Into open circuit
Output Impedance	Selectable 25, 50, 75 & 100 ohms
Output Pulse Width	3ns to 3ms	Automatic with range
Scan Rate	2 scans/second
Batteries	Six AA (LR6/R6) Alkaline or NiMH cells
