RD510 Water Pipe Locator & Leak Detector
• User-Friendly Control: Easy-to-use, hand-held control unit with color touch screen.
• High Sensitivity Microphone: Ground microphone with a telescopic pole for precise detection.
• Comfortable Headset: Equipped with a standard audio jack for seamless audio clarity.
• Versatile Metal Spike: Extends usability on soft ground conditions.
• Noise Reduction: Band pass filter to minimize background noise interference.

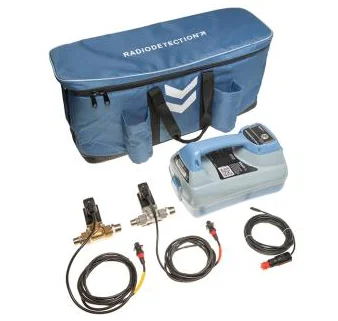

• Pulsed Water Transmitter: Provides a traceable pulse to the target pipe.
• Adaptable: Pulsed Water Valves to suit most environments (4 or 10 bar).
Locate Leaks with Precision
The RD510 advanced sound detecting system enables accurate leak detection. The hand-held control unit and ground acoustic sensor work together to isolate and amplify leak sounds for accurate locating. Capable of detecting leaks up to 5 meters deep*, this system is both reliable and straightforward.
|

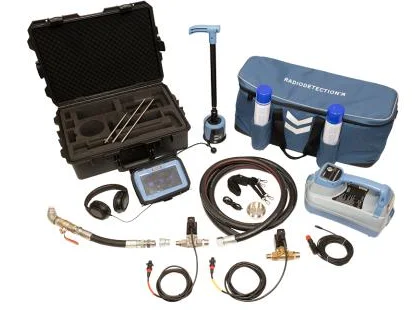

Components
|

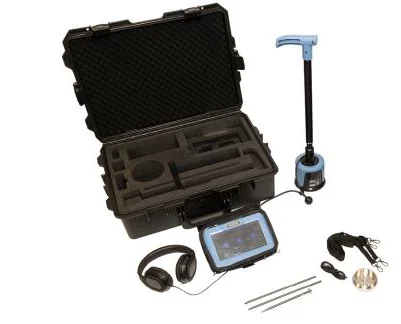

Hand held control unit with soft bag cover, acoustic sensor,
telescopic pole, soft ground spikes, hard ground plate,
headset, USB cable, memory card, transit case
|
|
Weight (shipping)
|
9 kg
|
|
Dimensions:(case)
|
22.5 x 60 x 45 cm (HxLxW)
|
|
Construction
|
ABS
|
|
Power Input
|
5V, 2A Micro USB
|
|
Power
|
Internal Li-Ion batteries, not removable
|
|
Operating Temperature
|
-20 to 50°C
|
|
Operating time
|
Up to 8 hours (At 20°C, medium screen brightness)
|
