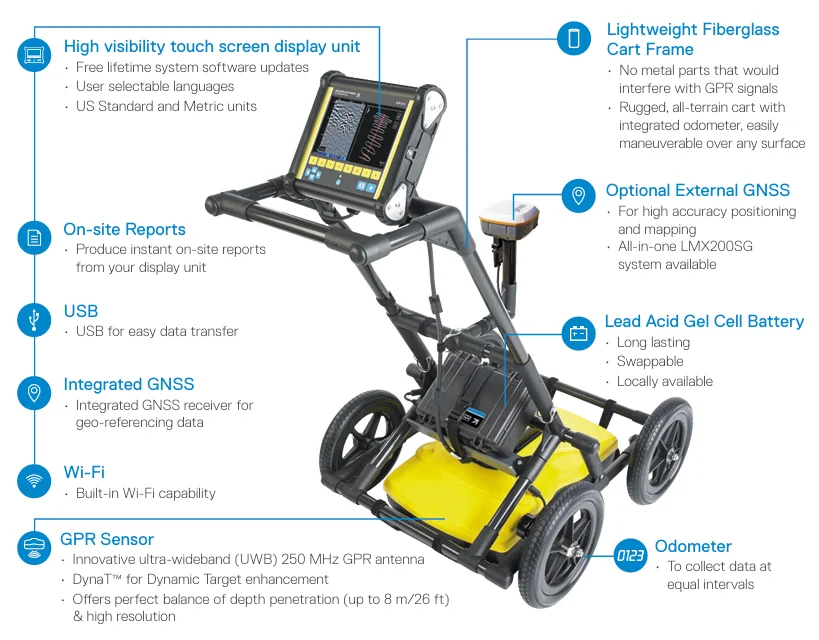

LMX200™ GPR complements traditional pipe and cable locators and allows you to locate and map targets below the surface.

• Metal utilities, including pipes and cables

• Non-metallic pipes, including PVC and asbestos cement

• Concrete storm and sewer systems

• Utilities where installed tracer wiring has failed

• Underground storage tanks and drainage tiles

• Septic system components

• Non-utility structures such as vaults, foundation walls and concrete pads

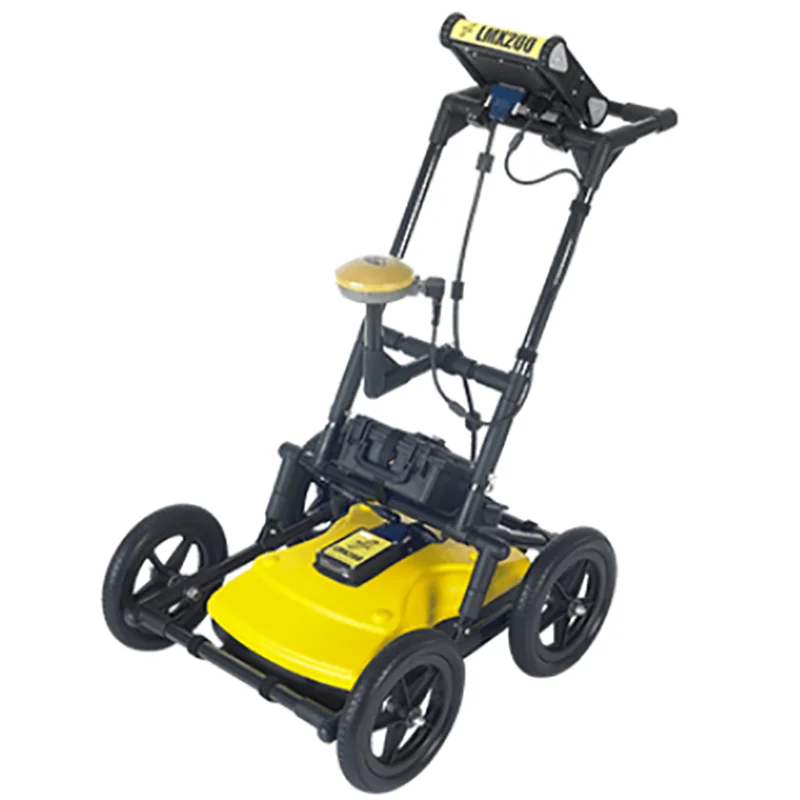

Radiodetection GPR LMX 200™
Size	100 x 70 x 115 cm (39.4 x 27.6 x 45.3 in)
Weight	22 kg (48 lbs)
Display Unit size	21 cm (8 in) diagonal
Battery Capacity	9.0 Ah
Battery Weight	3.6 kg (7.9 lbs)
Battery Life	4-6 hours
Charger	110-240V
Environmental & Temperatures	Operating temperature range: -20°C to +50°C (-4°F to 122°F)
Data Storage	380 km (236 miles) of data
Depth	Up to 8 meters (26 feet)
