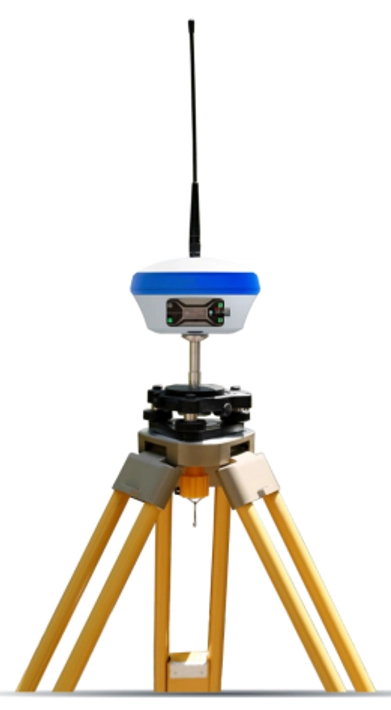

YFS6II Lite Super Base RTK

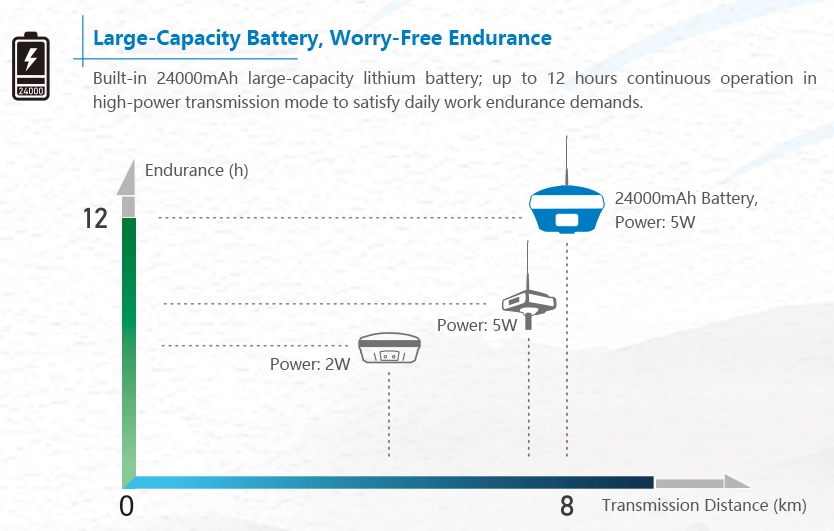

It revolutionizes conventional base station deployment, removing the hassle of separate batteries, antennas and external radios. Lightweight and easy to cary, it can be set up quickly on site. Built-in 5W integrated transceiverradio achieves operation coverage over 8 km.With a 24000mAh high-capacity battery, continuous working time reaches 12 hours.IP68 dustproof & waterproof magnesium alloy casing ensures outstanding durability for field work.

Built-in Radio, External-level Performance

Built-in 5w integrated transceiver radio, operation range exceeding 8 km. Supporting radio/network relay and intelligent channel detection;full frequency coverageof 410-470MHz,7+2400 configurable channels,fully interoperable and compati-blewithmainstreamRTkbrands.

Full Constellations, Fast Satellite Acquisition

The high-performance and high-precision positioning board ensures excellent signal reception. Supporting full-constellation & full-frequency GNSS signals (Beidou, GPS, GLONASS, Galileo, QZSS), it can rapidly acquire, lock and process GNSS satellite signals.

Anti-Interference, Superior Signal

Adopts narrowband anti-interference technology; actively detects and suppressesinternal & external interference, satisfying measurement demands under complex conditions for efficient fixed solutions.

Instant Alert for Base Station Displacement

Equipped with Base-Link technology: instant voice or pop-up notifications will be triggered on the rover and controller once the base station is accidentally moved, avoiding wrong coordinate acquisition. It also supports remote monitoring of the base station' s satellite reception, battery status,etc.

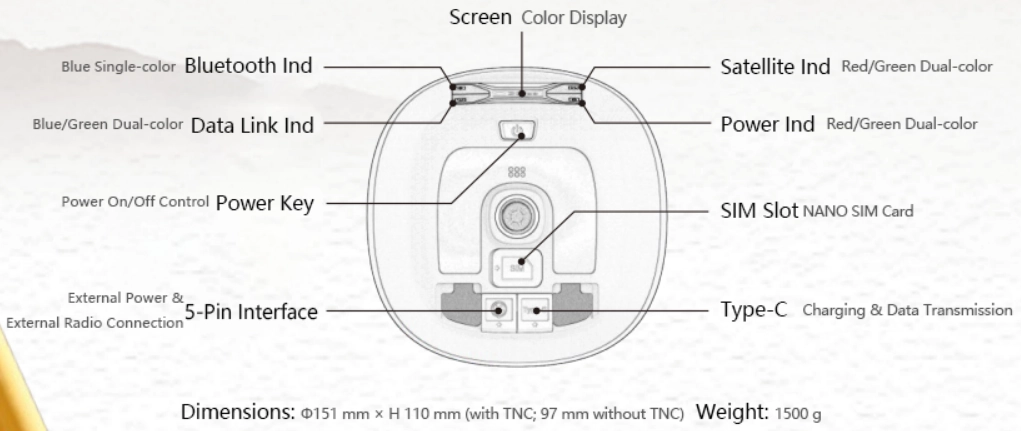

True-Color Display, Higher Efficiency

The color display presents working mode, satellite count and remaining power for quick information overview with clear visibility under sunlight. LED indicators on both sides show operating statusvia different colors.Cooperating with the color screen, they deliver intuitive and efficientstatus monitoring.
