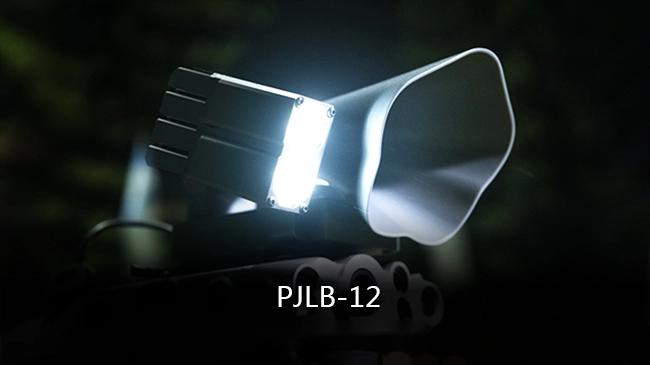

PJLB-12, A Probe Radio All-In-One Machine

  • Brand Name:PJK
  • Model Name:PJLB-12
  • Place of Origin:China
  • Warranty:1 year
  • Support Express:Sea freight, air freight

PJLB-12, A Probe Radio All-In-One Machine












PengJin PJLB-12 is Chinese UAV payloader,a two-in-one load device specially designed for DJI M30 industry UAV.With the design concept of fluid aesthetics, it can challenge the limit of performance, take into account the artistic taste, effectively reduce wind resistance and improve the endurance of UAV flight operations.The PJLB-12 is the most efficient lighting and amplification product so far, which integrates the imaging optical technology of GL series cloud head searchlight with the LRAD long-range sound technology of MP series digital voice broadcast system, and the volume and weight are extremely light.Only weighing 270 grams, effective exploration distance is 100 meters, effective sound distance is 200 meters, can meet the actual combat needs of security patrol and forest search and rescue and other mission scenarios.By deep integration with DJI Pilot2 APP, all the functions of the loudspeaker and light can be quickly called, making the operation function more convenient



Double swords together, small and powerful



Propaganda, lighting two in one only weight 270g body light as swallow endurance carefree





Good sound and light, outstanding effect



LRAD sound technology & optical imaging 120dB ultra loud pressure effective probe distance 100 m effective sound distance 200 m





The beauty of bionic, extreme craftsmanship



Unique petal bionic plastic art, science perfect combination





Fast installation, fast disassembly, easy to use



Unique assembly design OSDK perfectly fit M30








Product Parameter



Electrical interface

DJI OSDK

weight

270g (without quick removal support)
283g (with quick removal support)

size

162*111*75mm

Power of searchlight

Regular Mode at 30w
Super bright mode 40w
Flash mode 40w

Speaker power

15W

service voltage

24V

light quantity

2000lm±3%

searchlight FOV

13°

spot diameter

34m (Distance: 150m)
29.6m (Distance: 130m)
22.8m (Distance: 100m)
11.4m (Distance: 50m)

Probe area

102 ㎡ (Distance: 50m)
407 ㎡ (Distance: 100m)
688 ㎡ (Distance: 130m)
917 ㎡ (Distance: 150m)

Central illumination

20Lux (Distance: 50m)
4.5Lux (Distance: 100m)
2.5Lux (Distance: 130m)
1.7Lux (Distance: 150m)

Cloud table with a controllable range of rotation

Titch-120°~ + 45°

excess sound pressure

120dB

Effective broadcast distance

200m@74db
350m@69db

The way of propaganda

Real-time propaganda
Recording upload
Audio file playback
TTS (multiple languages)
Background sound

Audio format

mp3/wav/m4a/flac/aac

App support

DJI Pilot2

working temperature

-15°C~+40°C
