PJ-500 Product Specifications
- Brand name: PJK
- Model name: PJ-500
- Origin: China
- Warranty period: 1 year
- Support Express: Shipping, Airmail

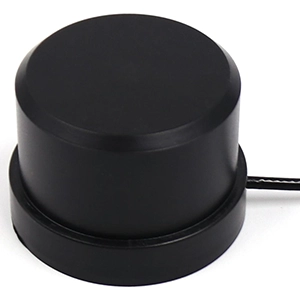

GNSS antenna pajamas -500
|
1. Product description |
|
|
pajamas The -500 is a 4-star full-frequency helical antenna. This antenna is characterized by its small size, high positioning accuracy and light weight, allowing it to effectively meet the needs of users. |
|
|
2. Applications |
|
|
It can be used in a variety of receivers and is widely used in UAVs, mobile devices, small RTK devices, and more. Depending on the conditions, it can also be used in military fields. |
|
|
3. Technical parameters |
|
|
Antenna specifications |
|
|
Frequency range (MHz) |
BDS B1/B2/B3 GPS L1/L2/L5 Gronus L1/L2 Galileo E1/E5a/E5b |
|
Gain (dBi) |
3 |
|
Antenna AR(dB) |
≤3 |
|
Horizontal cover angle |
360° |
|
VSWR |
≤1.5 |
|
Polarization |
Right circular polarization |
|
Port Impedance (Ω) |
50 |
|
Phase center error (mm) |
±2 |
|
Electrical specifications |
|
|
Gain (dB) |
35±3 |
|
Noise figure (dB) |
≤1.8 |
|
Operating voltage (V) |
3.3-12.0 |
|
Operating current (mA) |
≤50 |
|
Output VSWR |
≤2 |
|
In-band flatness (dB) |
±2 |
|
Differential Propagation Delay (ns) |
≤5 |
|
Structural features |
|
|
Connector type |
SMA-J |
|
Antenna size (mm) |
Φ48.0×32.8 |
|
cable |
RG316 Line |
|
Line length (m) |
1 |
|
Antenna weight (g) |
≤25 (Not including wire) |
|
Work environment |
|
|
Operating temperature (℃) |
-40~70 |
|
Storage temperature (℃) |
-55-85 |
|
waterproof Grade year |
IP67 |
If you are interested in this product, please feel free to contact us.
