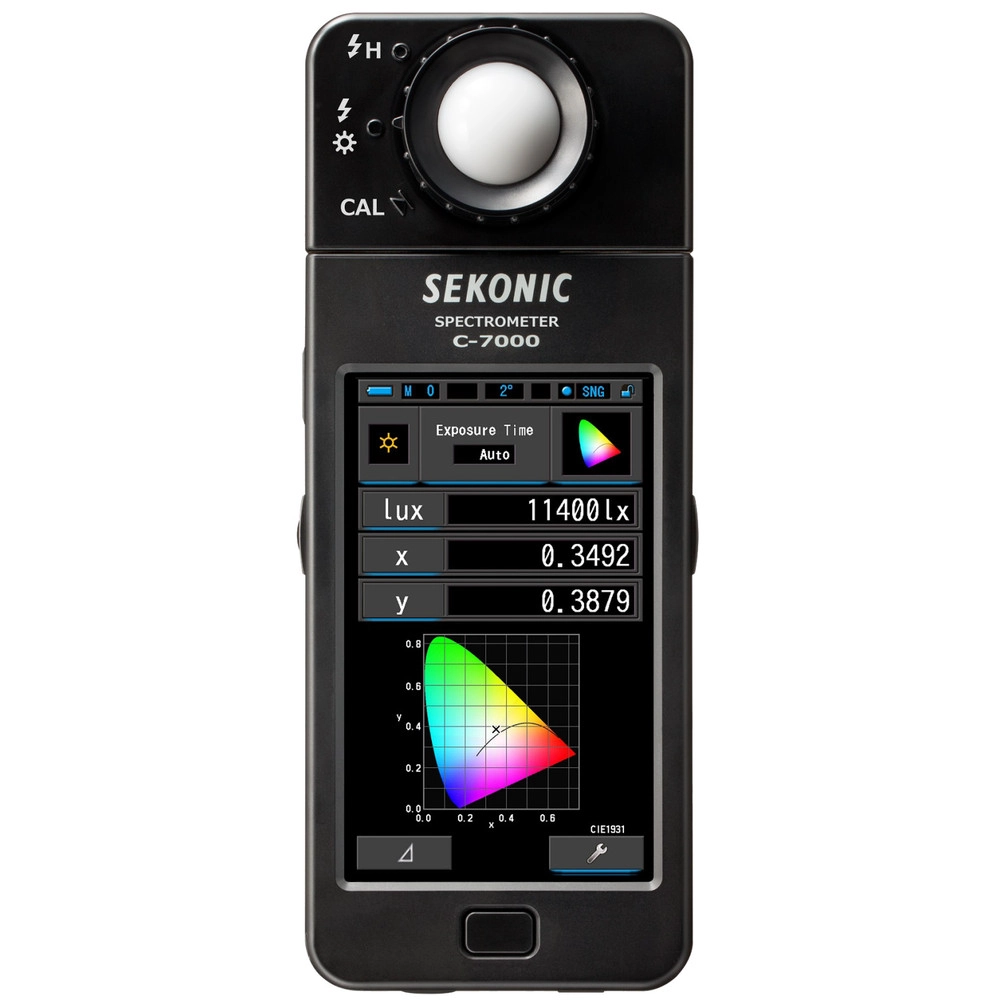

Sekonic C-7000 SPECTROMASTER Spectrometer
- Startup Guide
- Strap
- Soft Case
- USB Mini-B cable
- CD-ROM
- Safety Precaution
Sekonic C-700 Spectrometer
|
|
♦ Selecting digital mode/film mode ♦ Measures LED, HMI, fluorescent, tungsten, daylight and flash, from 380 to 780 nm ♦ Wide measurement range for color temperature (1,600 to 40,000 K) and illuminance (1 to 200,000 lx in ambient light, 20 to 20,500 lx・s in flash light) ♦ Complies with Class A of JIS C 1609-1:2006 as an illuminance meter class ♦ Color Rendering Index (CRI) ♦ Lighting filter for RoscoⒸ and LEEⒸ, camera filter for Kodak WrattenⒸ, LEEⒸ and FujiⒸ and LB/CC Index n ♦ Convenient display modes for photo/cinematography such as multiple lights and white balance correction ♦ Up to 99 data measurements can be stored in memory ♦ User-friendly design: 270 degree swivel head, capless dark calibration, large screen 4.3-inch color LCD touch screen and customization function ♦ The C-700 Series Utility Software (downloadable from www.sekonic.com) provides easy meter adjustments and analysis of data stored in a computer. |
Overview
———————————————————————————————————————————————————
The C-7000 Spectrometer is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash. The C-7000’s Utility software displays memorized data in several ways and outputs spectral data in 1nm/5nm (nanometer) increments in CSV format. The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.
Recommended customers
———————————————————————————————————————————————————
・Customers engaged in quality control, research and development, etc. for LEDs, organic ELs, projectors, etc.
・Customers who design and install lighting for buildings, offices, etc.
・Customers engaged in the selection and management of lighting equipment with high color rendering
・Customers managing grow lights used in plant factories
Features
———————————————————————————————————————————————————
►Measurement capabilities for various light sources
(LED, organic EL, HMI, fluorescent light, tungsten light, natural light, flash light, etc.)The C-7000 uses a CMOS linear image sensor in the light receiving section. Spectroscopic measurement is performed in the wavelength range of 380nm to 780nm to obtain an accurate color temperature.
It can accurately measure not only conventionally used flash light and constant light sources (fluorescent light, tungsten light, HMI, etc.), but also light sources such as LEDs and organic ELs, which have been increasing in recent years.
 |
 |
| Figure 1. Conventional filter method Measure the wavelength range covered by the RGB filte |
Figure 2. C-7000 A CMOS linear image sensor equipped with an LVF covers the measurement wavelength range with a fine pitch. |
Specification
————————————————————————————————————————————————————
| C-700 | |
| Sensor: | CMOS linear image sensor |
| Measuring system: | Spectrometer Incident light: Swivel head |
| Measuring range and modes | |
| Measuring modes (ambient light) | Ambient light |
| Measuring modes (Flash light) | Wireless, wired (PC) |
| Measuring range at ISO100 (ambient incident light) | 1 lx to 200,000 lx * 0.1 fc to 18,600 fc * Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments” |
| Measuring range (flash incident light) | 220 lx・s to 20,500lx・s 1.86 fc・s to 1,900 fc・s |
| Spectral wavelength range | 380nm to 780nm |
| Color measurement mode (display mode) | 1 lx to 200,000 lx * 0.1 fc to 18,600 fc * Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments” |
| Color measurement range (ambient light) | 1,563 to 100,000K |
| Color measurement range (flash lamp) | 2,500 to 100,000K |
| Color measurement units (color settings) | Correlated Color Temperature (Tcp),Deviation (⊿uv ), Tristimulus value (XYZ / X10Y10Z10), CIE1931/1964 (xyz / x10y10z10), CIE1976 (u’v’ / u’10v’10 ) |
| Color measurement units (color rendering properties) | CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF |
| Color measurement units (photo/cinematography) | LB/CC filter number (camera/lighting filter), LB/CC index |
| Target color temperature range | 2,500,000 to 10,000,000 |
| Shutter speed range (ambient light) | Auto - Max. : 15 s, Min. : 0.5 sec. |
| Shutter speed range (flash) | 1s to 1/500s (plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400) |
| Memory: | Yes (999 times) |
| Contrast/Comparison function | Yes |
| Custom settings | Yes (5 custom settings) |
| Physical | |
| Tripod socket: | Yes |
| Operating temperature | -10 to 40 degrees. VS |
| Storage temperature | -10 to 60 degrees. VS |
| Energy source | 1.5V x 2 (AA battery), USB bus power |
| LCD | 4.3-inch color dot matrix touchscreen LCD |
| LCD backlight | Yes |
| Product weight (kg) | 0.23 |
| Size (cm) | 18.3*2.7*7.3 |
