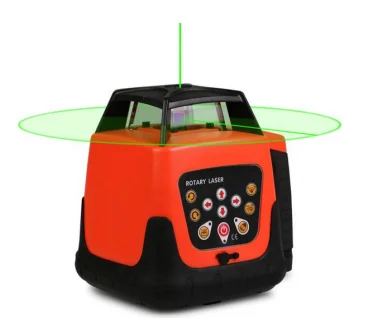

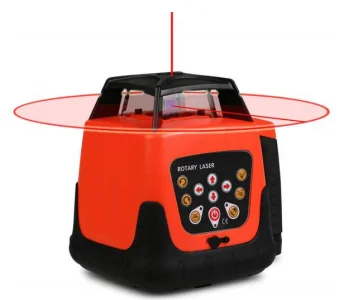

PJK brand self-leveling rotating laser provides rapid horizontal and vertical self-leveling and an accurate line even at longer distances. Thanks to the included remote control, it’s also very easy to use, even for a single person. Its combining of function and usability make it an ideal tool for all professionals and contractors specializing in interior and general construction.
Instrument Features

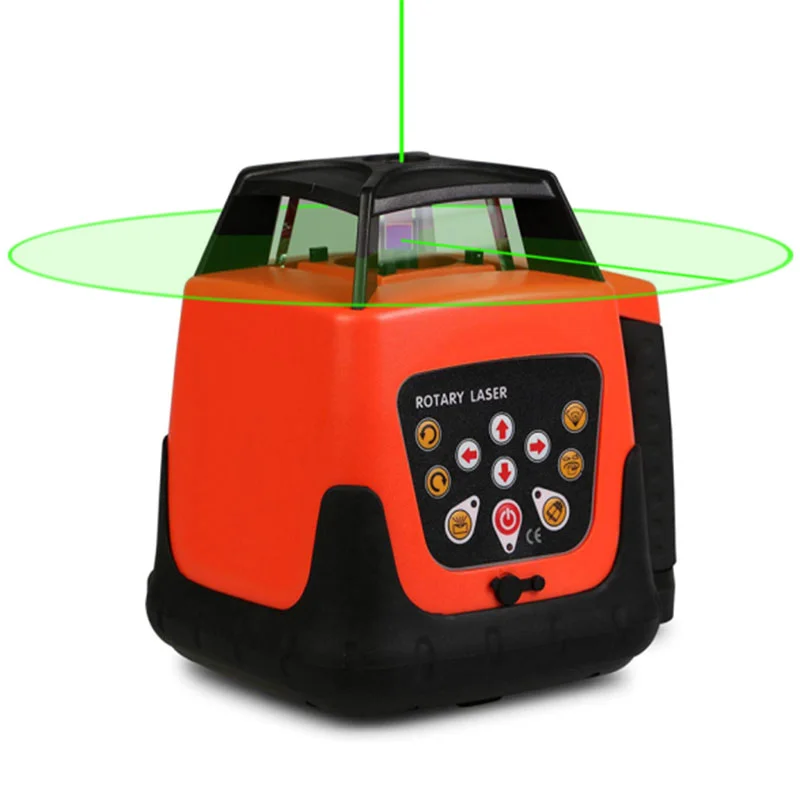

- PJK-203G Green beam can provide excellent lines and working range, especially for outdoor tasks.
-
5 Directional-scanning width
-
Can turn the laser beam to left or right
-
Remotely Controllable
-
Shocking Alert function
-
Can be used for both and vertical application.
-
Generate a horizontal surface and vertical line (down point diode) in horizontal application
-
Generate a horizontal line and vertical surface in vertical application
Specification
|

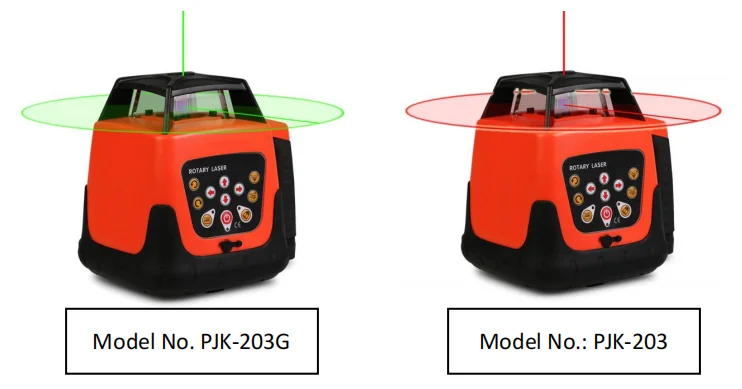

Model No.
|
PJK-203G
|
PJK-203
|
|
Laser type
|
Green beam, 532nm
|
Red beam, 635nm
|
|
Laser class
|
Class III
|
Class II
|
|
Leveling accuracy
|
Horizontal: ±20”
Vertical: ±20”
|
|
|
Self leveling range
|
±5°
|
|
|
Measuring range
|
Diameter 500m (using the laser detector)
|
|
|
Spinning speed (4 levels)
|
0, 120, 300, 600 r.p.m.
|
|
|
Directional-scanning width (5 levels)
|
0°, 10°, 45°, 90°, 180°
|
|
|
Slope-adjusting range
|
±5°(Bi-directional)
|
|
|
Accuracy of down point diode
|
±1mm/ 1.5m
|
|
|
Remote controlling distance
|
Approximately 20m
|
|
|
Water-proof
|
IP54
|
|
|
Continuous working time after fully charged
|
About 20 hours
|
|
|
Dimension (L*W*H)
|
160*160*185mm
|
|
|
Weight of instrument
|
2.0kg
|
|
|
Working temperature
|
-10℃ ~ +45℃ (14℉ ~ 113℉)
|
|
