Model

PJC8

Detection Principle

Adopts the principle of electromagnetic induction

Application Fields

Special Inspection, Electric Power, Surveying & Mapping, Petroleum & Telecommunications, Long-distance Pipeline Operation and Maintenance Enterprises, Municipal Engineering, etc.

Equipment Standard Configuration

1 main unit, 1 signal identifier, 1 set of charger for main unit, 1 backpack for main unit, 2 power banks (with charging kits), 1 power cord for identifier, 1 set of documents

Operating Environment

Passive tracing detection is supported. It works regardless of the presence of metal tracer wires, and requires no connection to pipelines, optical cables (including microcables) or any pre-treatment. No external rotating antenna is needed, so its performance won’t be affected by wind, uneven ground, construction activities, vehicles, vibration or noise. A laser rangefinder is available as an optional accessory.

Detection Depth

Up to 50 meters

Detection Accuracy

Under interference-free conditions: Horizontal error: ±10%; Buried depth error: ±10% for depth ≤3m, ±15% for depth ≥3m

Detection Speed

Under normal conditions, a single cutting scan at one point takes approximately 10 seconds.

Working Hours

Full charging time: 8 hours; Standby time of main unit: ≥60 hours; Continuous working time: ≥25 hours

Operating Temperature

-35℃-50℃

Storage Temperature

-40℃-70℃

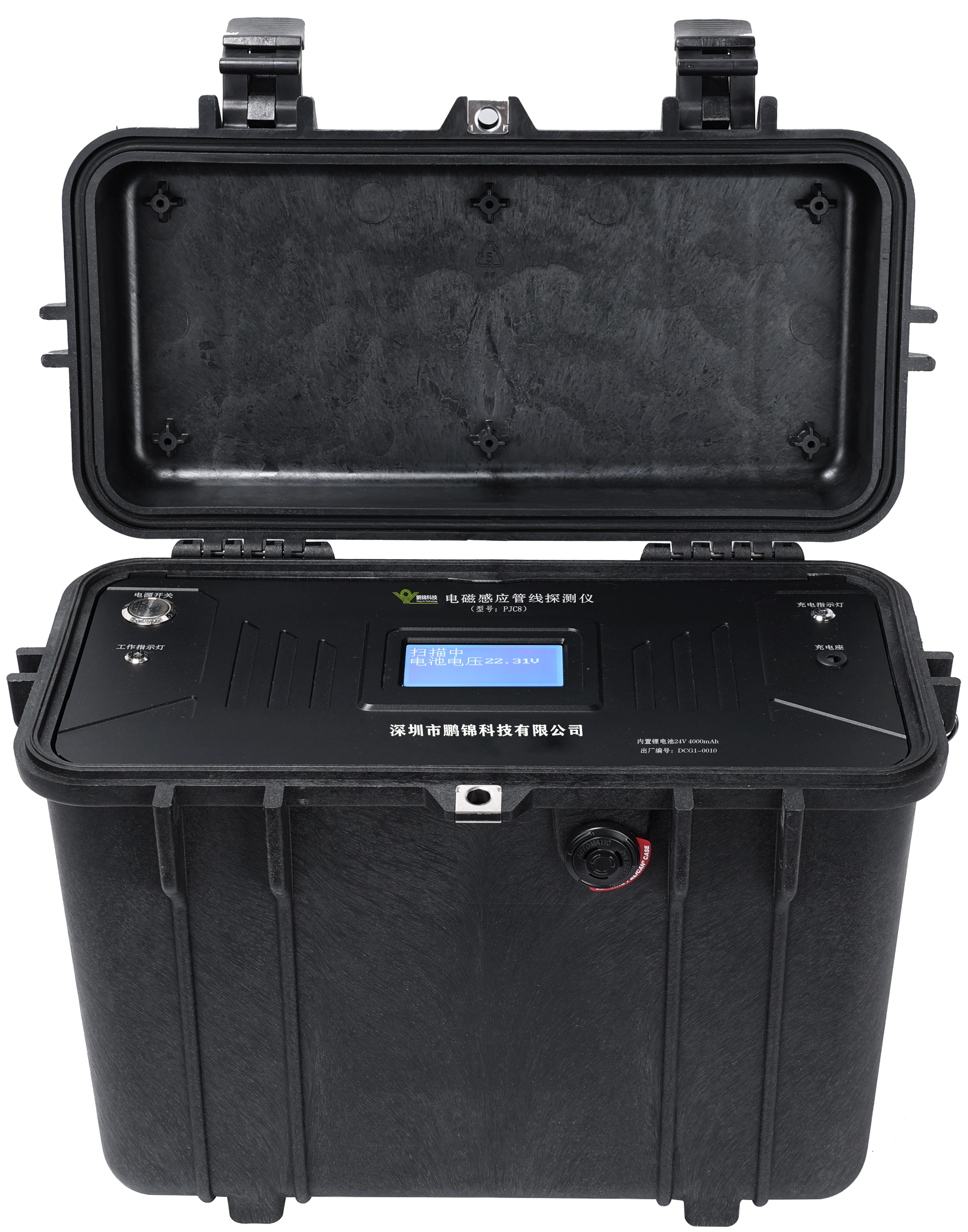

Main Unit Housing

Adopt ABS+PC engineering plastic housing, applicable to various environments with high impact resistance, shock resistance and waterproof performance. IP67 waterproof rating (when the cabinet is closed).

Main Unit Battery

Built-in 24V rechargeable lithium battery with a capacity of 4000mAh

Main Unit Dimensions

34.4cm×14.6cm×29.7cm

Main Unit Weight

6.0kg

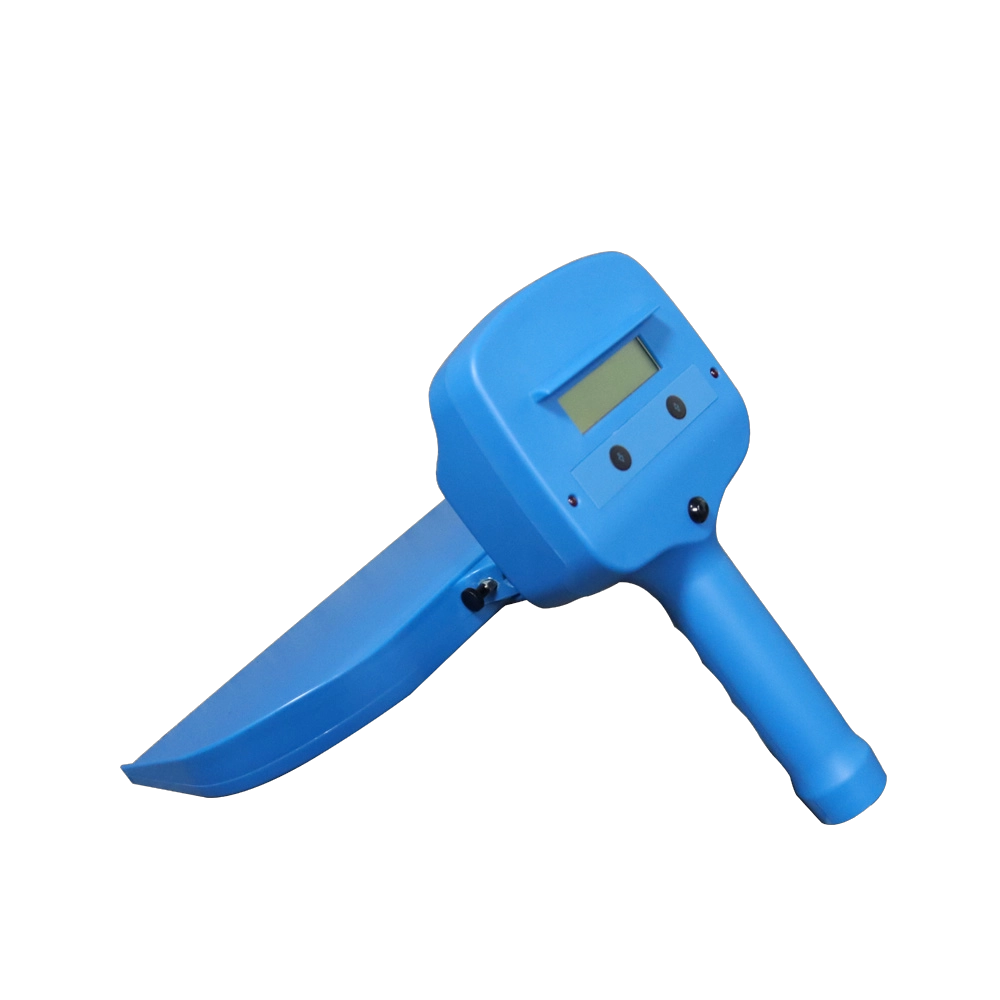

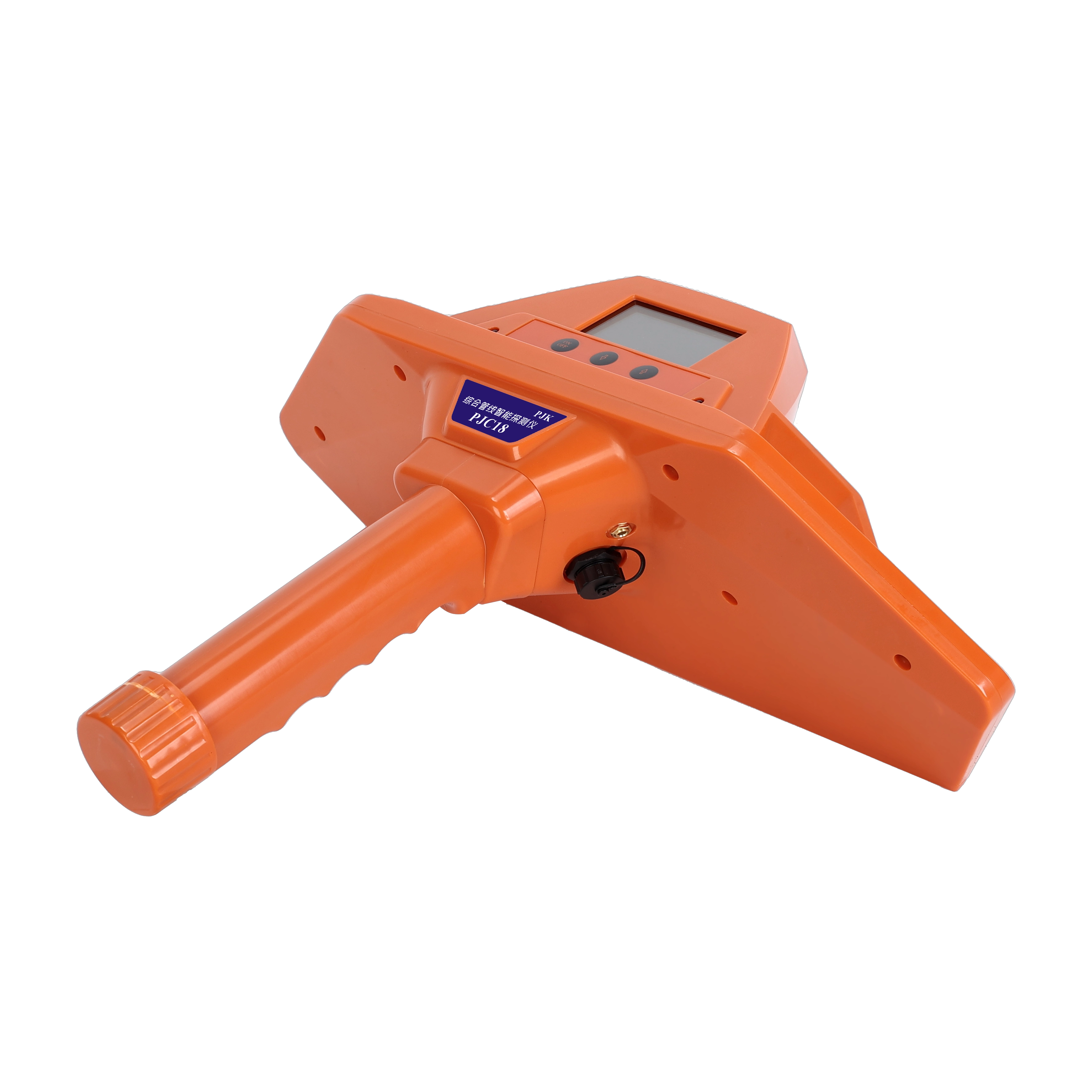

Signal Identifier Dimensions

52.6cm×35.9cm×28.1cm

Signal Identifier Battery

External rechargeable lithium battery: 9V, 10000mAh capacity

Weight of Signal Identifier

1.067kg
