Pipeline Locator PCMx

Pipeline integrity and corrosion control

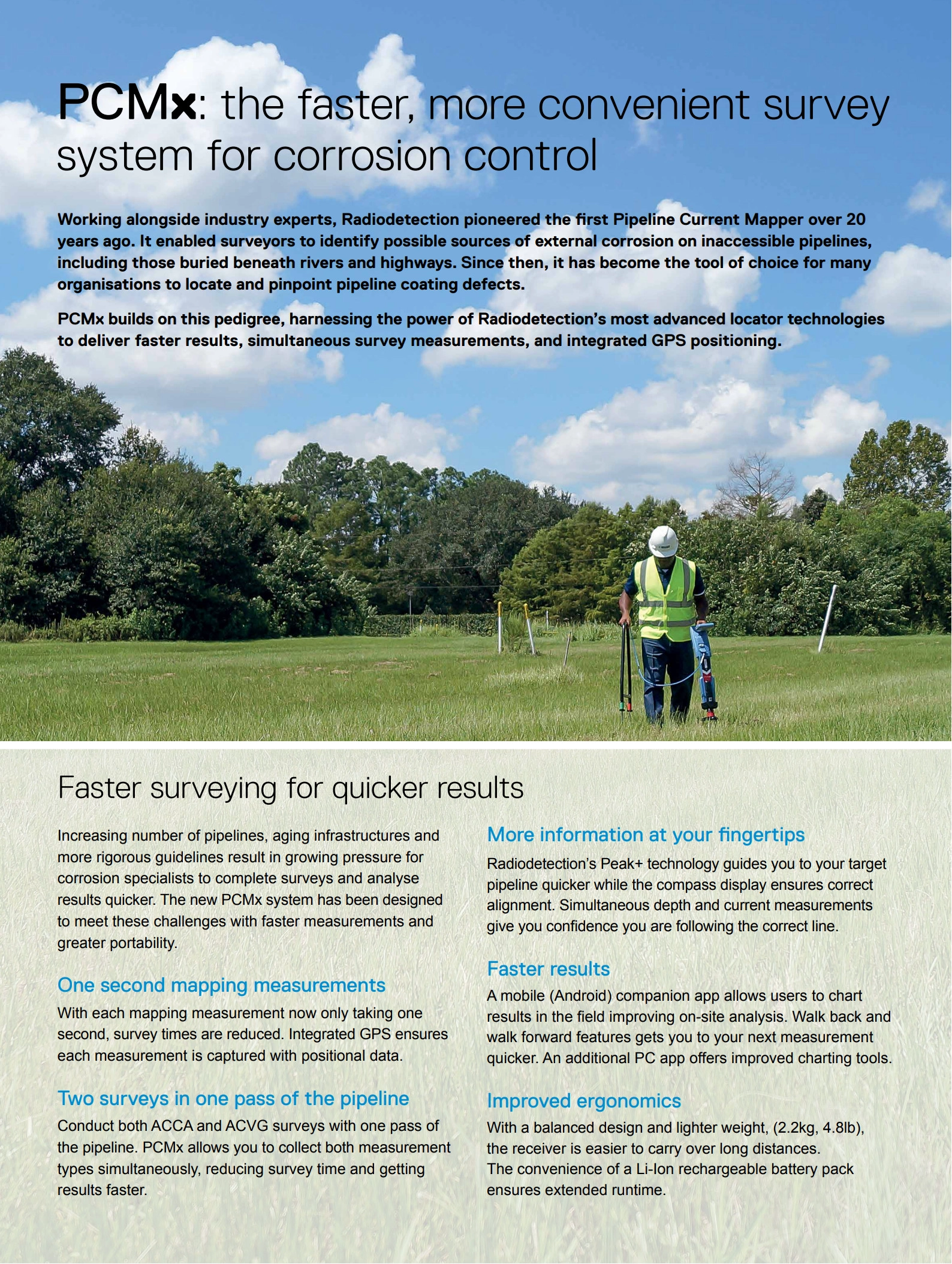

Radiodetection's PCMx system allows corrosion and cathodic protection systems (CPS) experts to assess the condition and effectiveness of pipeline coatings. Users can identify defects in coatings and holidays, and short circuits caused by contact with other structures. Our portable 25W transmitters have made great strides in portability and ease of use.

PCMx allows pipeline administrators to identify and prioritize preventive maintenance for pipelines. Prolong the lifespan of your assets by identifying potentially corrosion early.

This system can be used to carry out ACCA and ACVG investigations in accordance with ANSI/NACE SP0502-2010, "Standard Implementation of Direct Pipeline Corrosion Assessment Methods." These investigations can be performed individually or simultaneously and can be used to identify and identify defects in the coating, or to identify short circuits caused by contact with other structures.

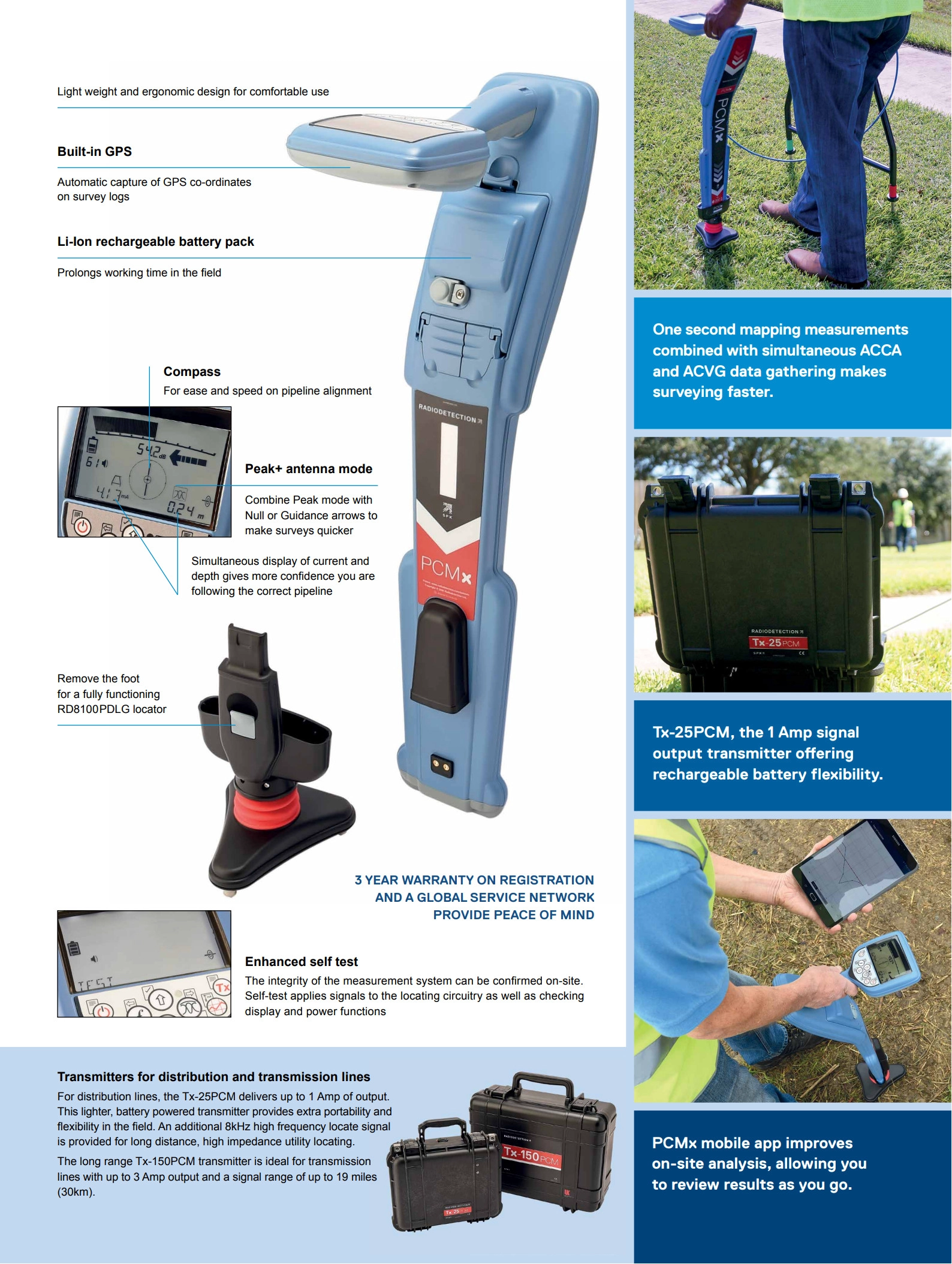

Removing the removable foot leaves the full-featured RD8100PDLG pipe and cable locator. Coverage depth and GPS location data are also captured.

Simultaneous survey options

Users select ACVG and ACCA surveys simultaneously or individually.

Ergonomics improvements

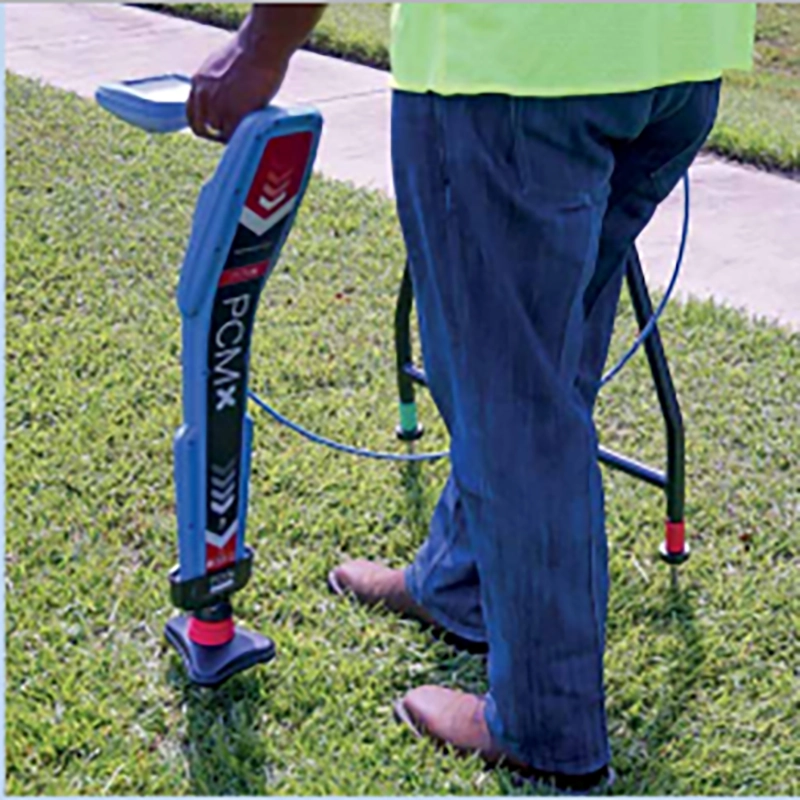

The receiver weighs only 4.9 pounds (2.2 kg), making it easy to use all day long.

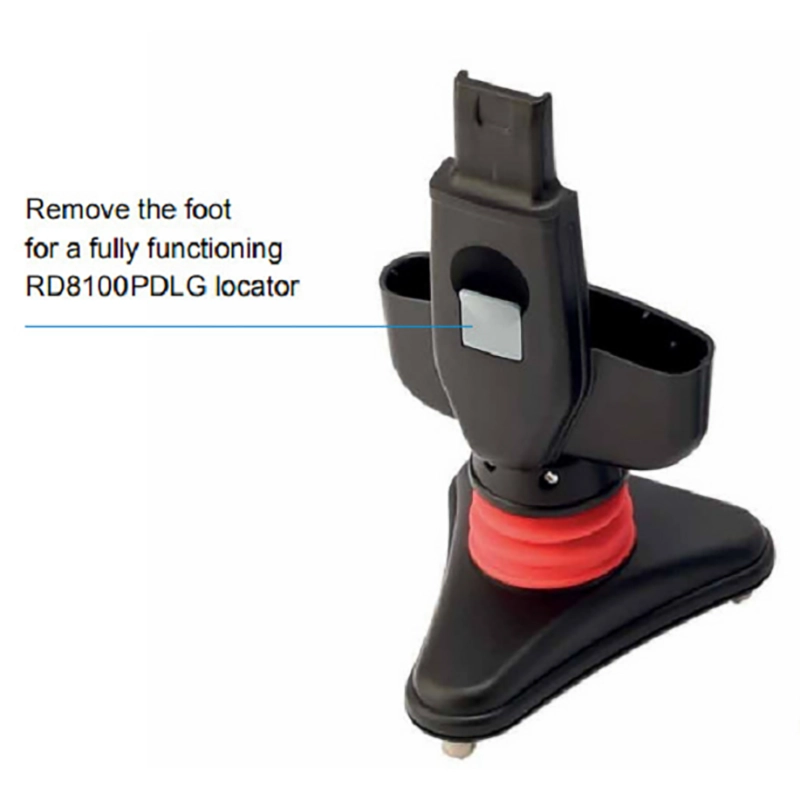

Removable feet

The fully featured premium RD8100 pipe and cable locator remains intact.

1 second mapping measurement

Save time and money.

Integrated GPS

Automatic capture of GPS coordinates on the survey log.

Cover depth

The depth of the pipeline is recorded along with current, voltage and GPS data.

Companion Android App

You can create graphs on the move, including walkback and walk forward.

PC app

Provides improved graphing tools.

peak

Quickly locate the location with the guide arrows and the null arrows check for distortion.

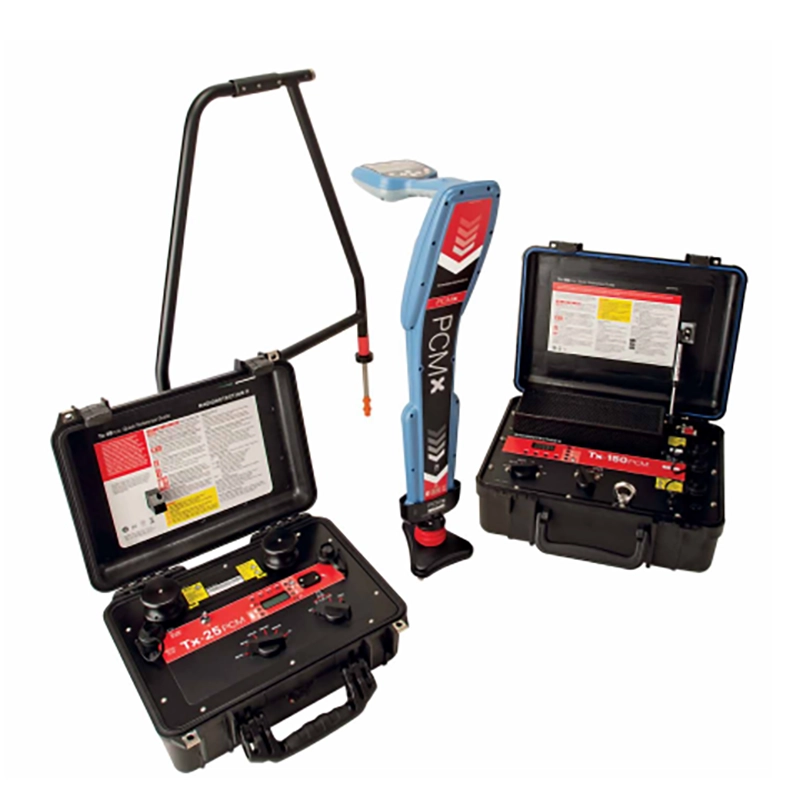

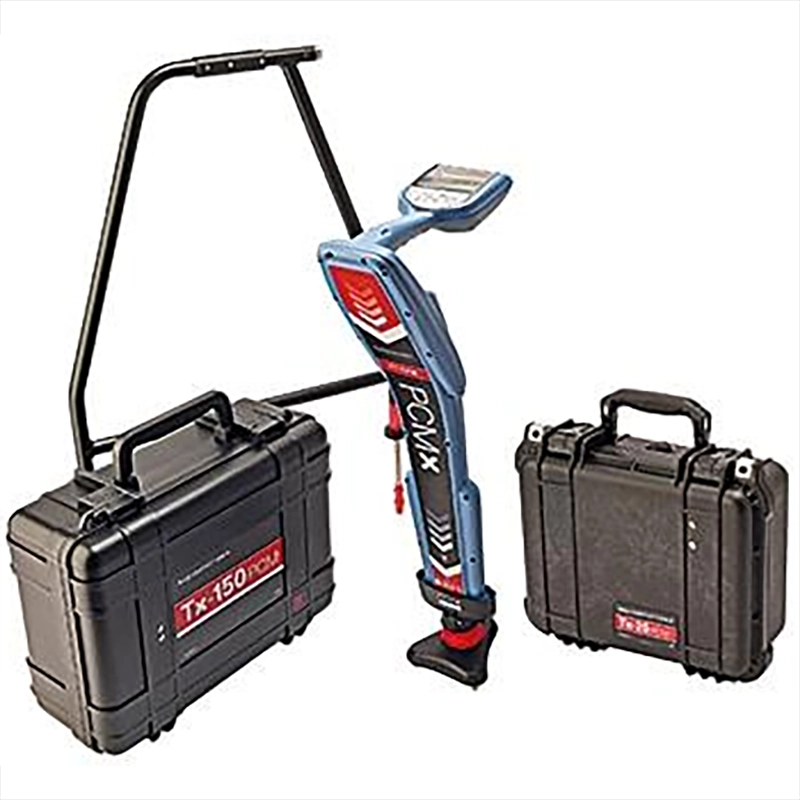

New TX-25

This small, lightweight transmitter with a rechargeable battery makes it ideal for power distribution networks.

TX-150

It sends a 19-mile (30 km) signal for long-distance transmission pipelines.

Enhanced self-test

Check receiver calibration and give field users a sense of security.

eCertificate

PCM Manager Use PC software to validate and authenticate PCMx receiver calibration.

Software and Apps

Mobile app for Android phones or tablets (data transfer via Bluetooth)

PC app for PC (data transfer via USB)
