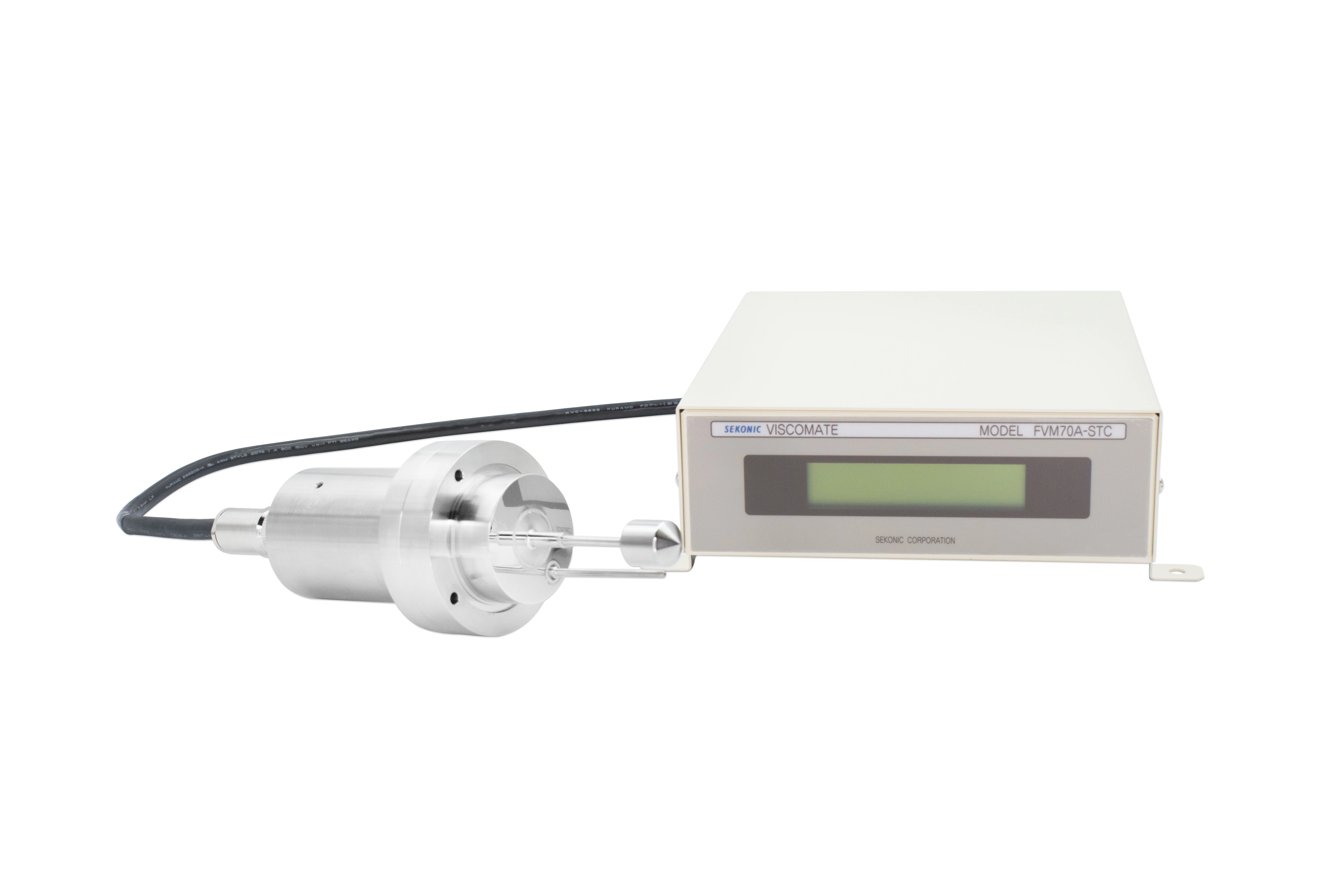

In-line Viscometer FVM70A series
- Model: FVM70A-ST /FEM72A
- Accuracy: ±2%(Reading)
- Repeatability: ±1%(Reading)
- Temperature Range: 0～100℃
- Wetted temperature range: 0～70℃
- ●FVM70A is a torsional oscillation viscometer of inline process applications.
It measures the viscosity and temperature in real time and continuously attached to tank,and pipe with the flange. - ●Maintenance-free viscometer due to piezoelectric ceramic in the driving unit.
- ●Viscosity sensor portion (probe) has become a full sealed structure, non-explosion proof type is also possible to soak in the liquid the entire probe addition to being attached at the flange.
- ●It is possible to viscosity measured in flow state of liquid by attaching to the pipe that the flow of the liquid and the tank is agitated.

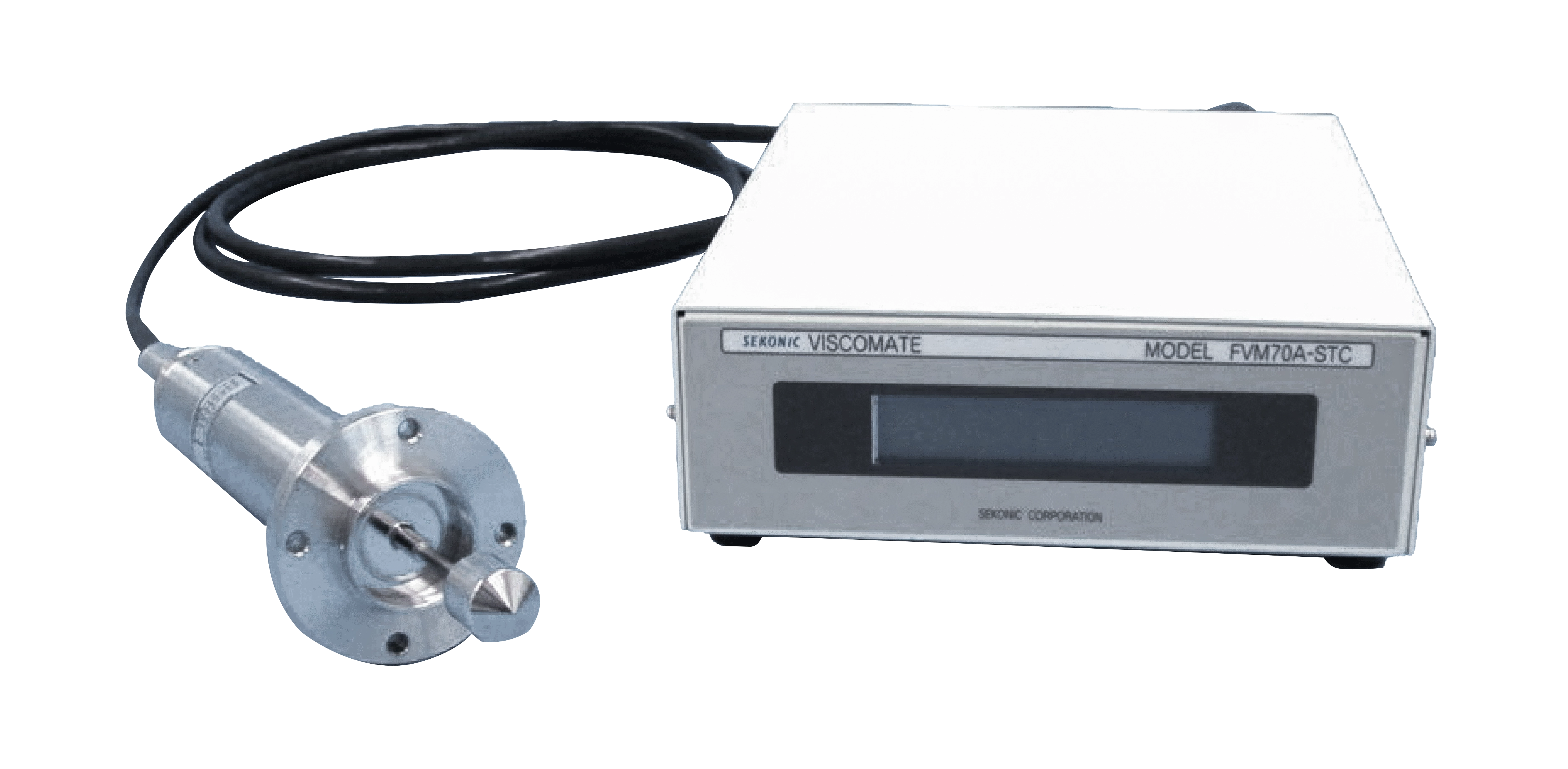

FVM70A-ST
- ●High precision is achieved by downsizing the technology of FVM80A series
- ●Adopts DC24V to be abele to share the same supply as the control equipment
- ●By adopting the same probe and FVM80A / FEM-1000V, standardization of piping design is feasible.

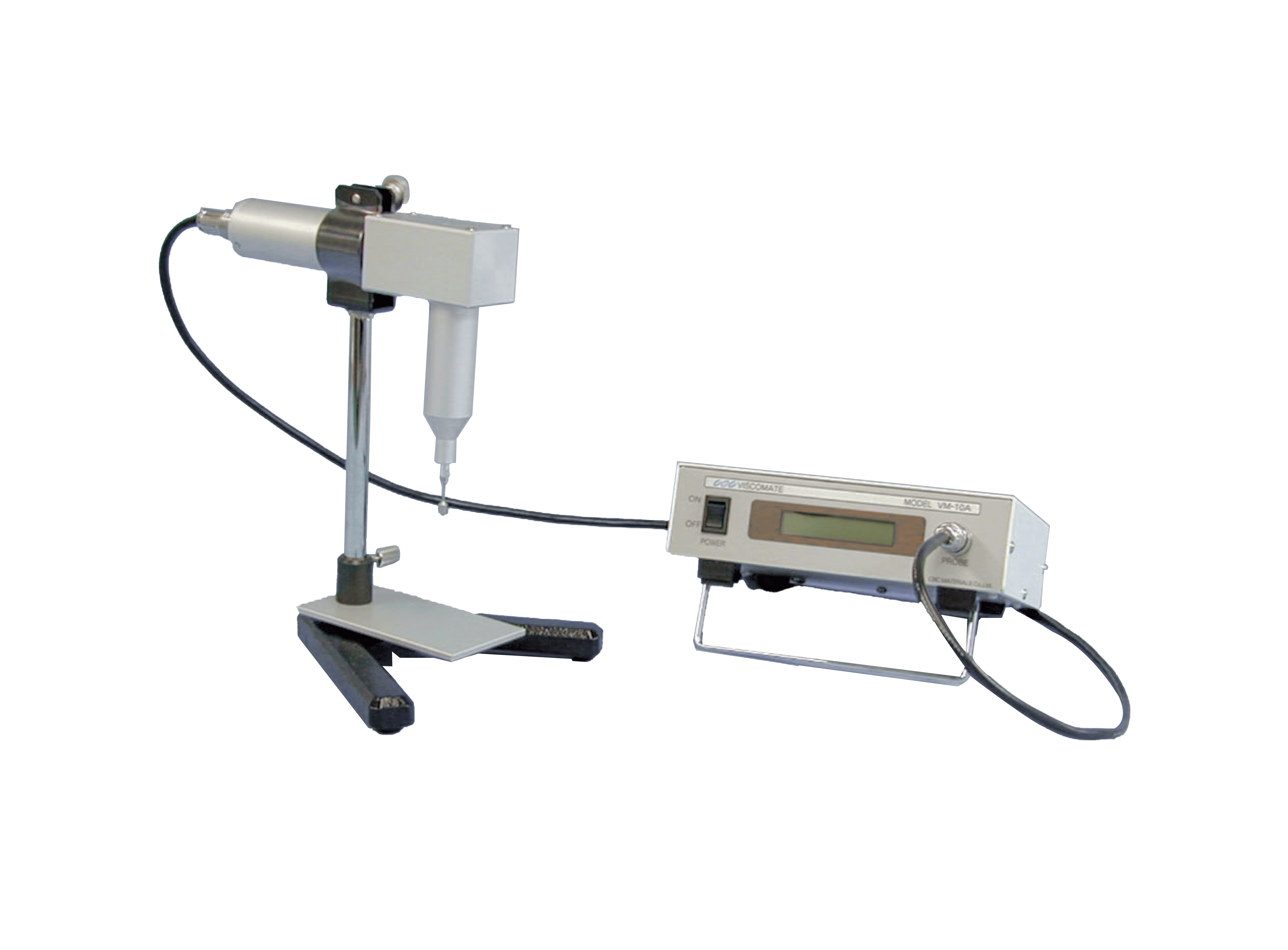

FVM72A
- ●High precision is achieved by downsizing the technology of FVM80A series
- ●It uses an AC adapter, making it easier to use as a lab machine.
- ●Downsized in combination with the VM-200T2, T3 probe.
| TYPE | FVM70A-ST | ||
|---|---|---|---|
| Measuring Range | L-Type *Note 1 | M-Type *Note 1 | H-Type *Note 1 |
| 0.5～1000mPa･s | 10～5000mPa･s | 500～20000mPa･s | |
| Accuracy | ±2%(Reading) *Note 2 | ||
| Repeatability | ±1%(Reading) *Note 2 | ||
| Temperature Range | 0～100℃ | ||
| Wetted temperature range | 0～70℃ | ||
| Calibrating method | Calibration with Standard Liquids for Calibrating Viscometers(JIS Z8809-2011) | ||
| Viscosity display | 3-digit LCD display (Without decimal point) | ||
| Temperature display | 3-digit LCD display (Without decimal point) | ||
| System requirements | 10～40°C, 20～80%RH(No condensation) | ||
| Analog output | 4～20mA viscosity ×1 temperature × 1 | ||
| Digital output | RS232C interface output | ||
| Power | Input：DC24V 700mA | ||
| Probe mounting size | Insertion hole diameter：Φ46、Mounting bolt：Φ60 on the circumference, M4 × 4 pieces | ||
| Wetted Materials | Flange: SUS304, the vibrator part: SUS316 | ||
| Weight and Dimensions | Probe:Φ46・Φ70×L190[mm](including a connecting portion), approximately 1.4kg | ||
| Controller: H72xW220xD220[mm] (except the connecting portion and terminal block) approximately 1.7kg | |||
| Accessories | Connecting cable (5m) *Note 3, manual | ||
*Note1 Select range L, M, H range of measurement.
*Note2 Measurement condition：At the room temperature using a JISZ8809 viscosity calibration standard liquids, measured with stirring at a liquid temperature of 23 ± 3 ℃ by stirrer or etc.
*Note3 Maximum 10m, up to 20m can be extended (paid option)
*Option (paid)
|
Teflon coated probe (Probe: FVM80A-PST-T02) |
2S ferrule installation |
| TYPE | FVM72A-VM-200T2 | FVM72A-VM-200T3 | ||||
|---|---|---|---|---|---|---|
| Measuring Range | L-Type *Note 1 |
M-Type *Note 1 |
H-Type *Note 1 |
L-Type *Note 1 |
M-Type *Note 1 |
H-Type *Note 1 |
| 0.5～ 1000mPa･s |
10～ 5000mPa･s |
500～ 20000mPa･s |
0.5～ 1000mPa･s |
10～ 5000mPa･s |
500～ 20000mPa･s |
|
| Accuracy | ±2%(Reading) *Note 2 | |||||
| Repeatability | ±1%(Reading) *Note 2 | |||||
| Temperature Range | 0～100℃ | |||||
| Wetted temperature range | 0～70℃ | |||||
| Calibrating method | Calibration with Standard Liquids for Calibrating Viscometers (JIS Z8809-2011) | |||||
| Viscosity display | 3-digit LCD display (Without decimal point) | |||||
| Temperature display | 3-digit LCD display (Without decimal point) | |||||
| System requirements | 10～40°C, 20～80%RH （No condensation） | |||||
| Analog output | 0～5V viscosity × 1 temperature × 1 | |||||
| Digital output | RS232C interface output | |||||
| Power | AC adapter (Input: AC100～240V, Output: DC9V 2,600mA) | |||||
| Probe mounting size | Insertion hole diameter：Φ35(T3,T2), Mounting bolt：Φ50(T3) on the circumference, M4×4 pieces(T3) | |||||
| Wetted Materials | Flange: SUS304, the vibrator part: SUS316 | |||||
| Weight and Dimensions | Probe:Φ34 (T2) ・ Φ70 (T3 flange) xL220 (including a connecting portion) approximately 0.75kg | |||||
| Controller: H72xW220xD220[mm] (except the connecting portion and terminal block) approximately 1.7kg | ||||||
| Accessories | Connecting cable (5m) *Note 3, manual | |||||
| Option | Temperature sensor (Pt) | |||||
*Note1 Select range L, M, H range of measurement.
*Note2 Measurement condition：At the room temperature using a JISZ8809 viscosity calibration standard liquids, measured with stirring at a liquid temperature of 23 ± 3 ℃ by stirrer or etc.
*Note3 Maximum 10m, up to 20m can be extended (paid option)
|
Probe VM-200T2 |
Probe VM-200T3 |
