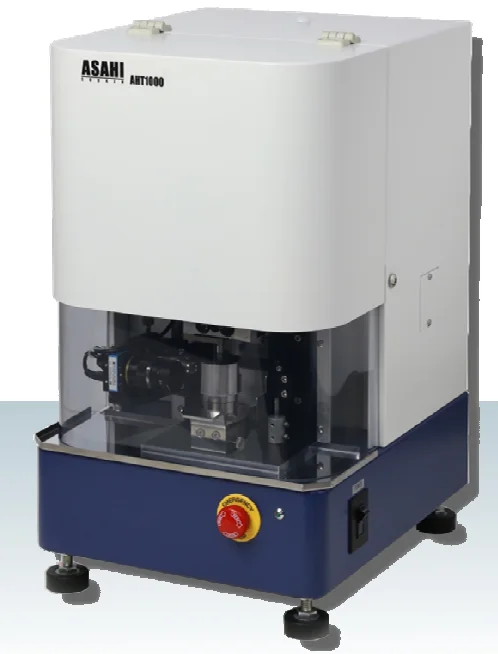

Automated hardness measurement
Simply place the sample in the sample cup and set it in the device, and the specified number of continuous measurements can be performed automatically (up to 50 points).
User-friendly measurement data
Aggregation and distribution charting by a dedicated application. It is possible to output the load displacement curve as a CSV file.
Equipped with CMOS camera
Recorded as an image of the process from the start of pressurization to crushing with an image taken by a CMOS camera. The curve graph of load and displacement is displayed at the same time.
Extract highly accurate data
Multiple filtering functions invalidate sampling error data and extract and analyze only reliable data.
High safety
A shutter cover that automatically closes when the device operates. With emergency stop switch and overload error function.
| Specifications | Note | |
| Measurement method | Constant speed load | |
| External dimensions | W300 x D350 x H515 (mm) | Does not include protrusions |
| Weight | about 25kg | |
| Load cell | 5N, 10N, 20N, 30N | You can specify the rated specifications of the load cell when ordering. |
| Descent speed | Select from 0.1, 0.2, 0.4, 0.5 mm/sec | |
| Measureable particle size | e0.5〜2.0 (mm) | |
| Accessories | Power cable | |
| Communication cable | ||
| Software installer | Compact disc | |
| Sumple cup | Sample Receptacle | |
| Dedicated jig 1 | For height calibration | |
| Dedicated jig 2 | For checking load calibration | |
| Ceramic gauge | For height calibration | |
| Weight | For load calibration | |
| Power supply | AC100V±5% 50/60Hz 3A | |
| Utility | 0.4MPa，Dry air of 1 L / minits or more | For air cylinder |
| Environmental temperature | 23℃±5℃ |
